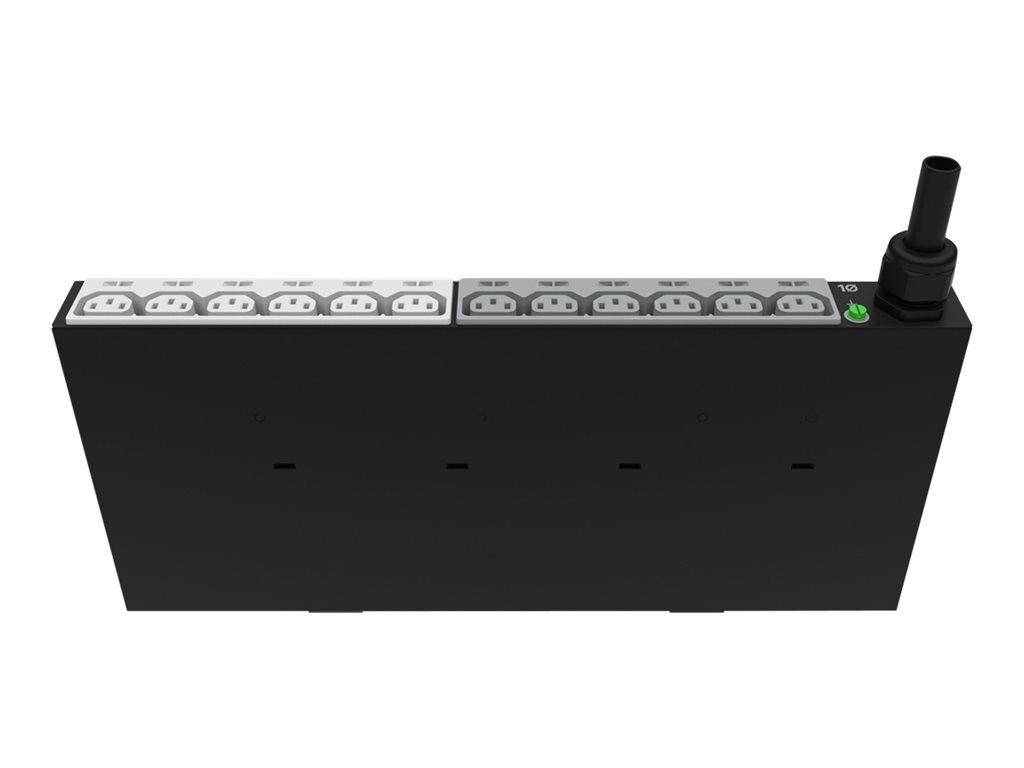

HPE G2 Basic Vertical Half-Height - power distribution unit - 7300 VA
SKU P9Q45A
Product Description: | HPE G2 Basic Vertical Half-Height - power distribution unit - 7300 VA |
Device Type: | Power distribution unit - rack-mountable |
Cord Length: | 25.4 cm |
Weight: | 3.67 kg |
Localisation: | Worldwide |
Input Wiring: | 1-phase 3 Wire |
Input Voltage: | AC 220-240 V |
- Specifications
- Description
General | |
Device Type: | Power distribution unit - rack-mountable |
Cord Length: | 25.4 cm |
Localisation: | Worldwide |
Power Device | |
Input Voltage: | AC 220-240 V |
Input Wiring: | 1-phase 3 Wire |
Input Connectors: | 1 x power IEC 60309 32A |
Power Output Connectors Details: | 20 x power IEC 60320 C13 |
Max Electric Current: | 32 A |
Power Capacity: | 7300 VA |
Circuit Protection: | Circuit breaker |
Miscellaneous | |
Included Accessories: | Tie wraps |
Cables Included: | Power cable 25.4 cm |
Rack Mounting Kit: | Included |
Compliant Standards: | DEMKO, WEEE, KC, EAC |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 60 °C |
Humidity Range Operating: | 10 - 90% |
Dimensions & Weight | |
Width: | 5.2 cm |
Depth: | 5.3 cm |
Height: | 81.7 cm |
Weight: | 3.67 kg |
Compatibility Information | |
Designed For: | HPE Synergy 12000 Frame |
HPE Standard Series G2 Basic PDUs are designed to work precisely with HPE Infrastructure and Compute solutions. Built with high-temperature grade premium components, the G2 Basic PDUs can operate reliably in operating temperatures up to 60°C over extended periods of time. A major concern for IT administrators and facility managers is their ability to quickly diagnose and service power related problems in their IT racks. HPE addresses this problem by, first, offering a wide range of PDU models and mounting options that promote flexible power configuration in your racks. Vertical, Horizontal, and True 0U mounting, an exclusive feature only offered by HPE, give you the flexibility to efficiently utilize rack space while placing access to power where you need it most in the rack. Serviceability is further enhanced with features such as color-coded outlets and low-profile form factors which allow for simple and quick access to IT equipment and power cables in the rear of the rack.
- HPE G2 Basic Power Distribution Units are backed by a 5-year warranty. Quality, guaranteed.
- HPE G2 Basic Power Distribution Units Horizontal/Modular PDU models can be installed in any U position in your rack.
- HPE G2 Basic Power Distribution Units vertical form factor models have a wide range of single and three-phase options providing up to 22kVA of output power.
- HPE G2 Basic Power Distribution Units have a wide range of mounting options to fit every application. Power where you need it, plus more room for compute.
