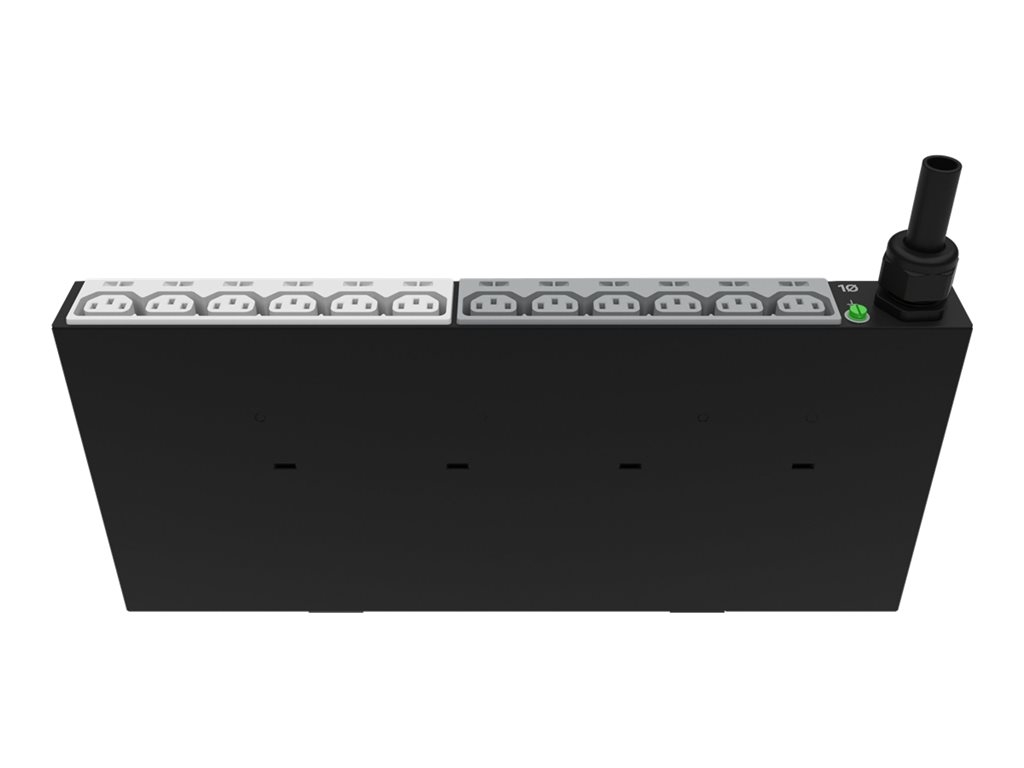

HPE G2 Basic Vertical Half-Height - power distribution unit - 3600 VA

SKU P9Q38A
Product Description:HPE G2 Basic Vertical Half-Height - power distribution unit - 3600 VA
Device Type:Power distribution unit - rack-mountable
Weight:2.04 kg
Localisation:Worldwide
Input Wiring:1-phase
Input Voltage:AC 100-240 V
Power Capacity:3600 VA
07-05-2024
  • Specifications
  • Description
General
Device Type:Power distribution unit - rack-mountable
Localisation:Worldwide
Power Device
Input Voltage:AC 100-240 V
Input Wiring:1-phase
Input Connectors:1 x power IEC 60320 C20
Power Output Connectors Details:20 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Max Electric Current:16 A
Power Capacity:3600 VA
Miscellaneous
Included Accessories:Tie wraps
Rack Mounting Kit:Included
Compliant Standards:CSA, UL, DEMKO, CB, WEEE, KC, EAC
Environmental Parameters
Min Operating Temperature:10 °C
Max Operating Temperature:60 °C
Humidity Range Operating:10 - 90%
Dimensions & Weight
Width:5.2 cm
Depth:5.3 cm
Height:81.7 cm
Weight:2.04 kg
Compatibility Information
Designed For:P/N: Q9Y46A, Q9Y46AR
vis mere
HPE Standard Series G2 Basic PDUs are designed to work precisely with HPE Infrastructure and Compute solutions. Built with high-temperature grade premium components, the G2 Basic PDUs can operate reliably in operating temperatures up to 60°C over extended periods of time. A major concern for IT administrators and facility managers is their ability to quickly diagnose and service power related problems in their IT racks. HPE addresses this problem by, first, offering a wide range of PDU models and mounting options that promote flexible power configuration in your racks. Vertical, Horizontal, and True 0U mounting, an exclusive feature only offered by HPE, give you the flexibility to efficiently utilize rack space while placing access to power where you need it most in the rack. Serviceability is further enhanced with features such as color-coded outlets and low-profile form factors which allow for simple and quick access to IT equipment and power cables in the rear of the rack.
