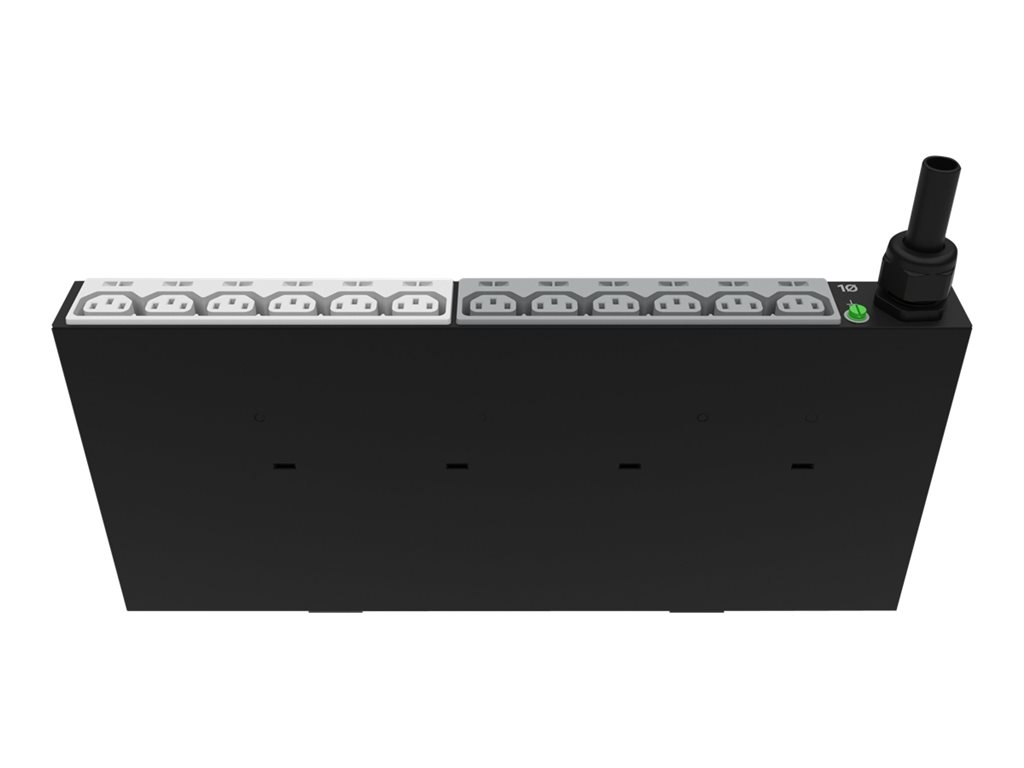

Printers & POSHPE G2 Basic Modular Horizontal True 0U - power distribution unit - 22000 VA
SKU P9Q63A
| Product Description: | HPE G2 Basic Modular Horizontal True 0U - power distribution unit - 22000 VA |
| Device Type: | Power distribution unit - rack-mountable |
| Cord Length: | 30.5 cm |
| Rack Size: | 1U |
| Weight: | 4.81 kg |
| Localisation: | Worldwide |
| Input Wiring: | 3-phase WYE (star) |
- Specifications
- Description
| General | |
| Device Type: | Power distribution unit - rack-mountable |
| Height (Rack Units): | 1U |
| Cord Length: | 30.5 cm |
| Localisation: | Worldwide |
| Power Device | |
| Input Voltage: | AC 200-240/346-415 V |
| Input Wiring: | 3-phase WYE (star) |
| Input Connectors: | 1 x power IEC 60309 32A |
| Power Output Connectors Details: | 6 x power IEC 60320 C19 |
| Max Electric Current: | 32 A |
| Power Capacity: | 22000 VA |
| Circuit Protection: | Circuit breaker |
| Miscellaneous | |
| Included Accessories: | Tie wraps |
| Cables Included: | Power cable 30.5 cm |
| Rack Mounting Kit: | Included |
| Compliant Standards: | DEMKO, WEEE, KC, EAC |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 60 °C |
| Humidity Range Operating: | 10 - 90% |
| Dimensions & Weight | |
| Width: | 44.35 cm |
| Depth: | 19.74 cm |
| Height: | 4.35 cm |
| Weight: | 4.81 kg |
| Compatibility Information | |
| Designed For: | HPE ProLiant for Microsoft Azure Stack ¦ HPE Synergy 12000 Frame |
HPE G2 Basic PDUs are designed to work precisely with infrastructure and compute solutions. Built with high-temperature grade premium components, G2 Basic PDUs can operate reliably in a wide range of operating temperatures over extended periods of time.
- HPE G2 Basic Power Distribution Units are backed by a 5-year warranty. Quality, guaranteed.
- HPE G2 Basic Power Distribution Units Horizontal/Modular PDU models can be installed in any U position in your rack.
- HPE G2 Basic Power Distribution Units vertical form factor models have a wide range of single and three-phase options providing up to 22kVA of output power.
- HPE G2 Basic Power Distribution Units have a wide range of mounting options to fit every application. Power where you need it, plus more room for compute.
