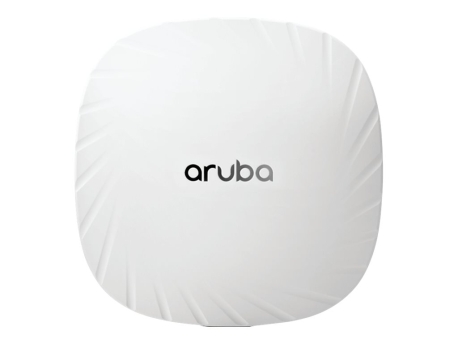

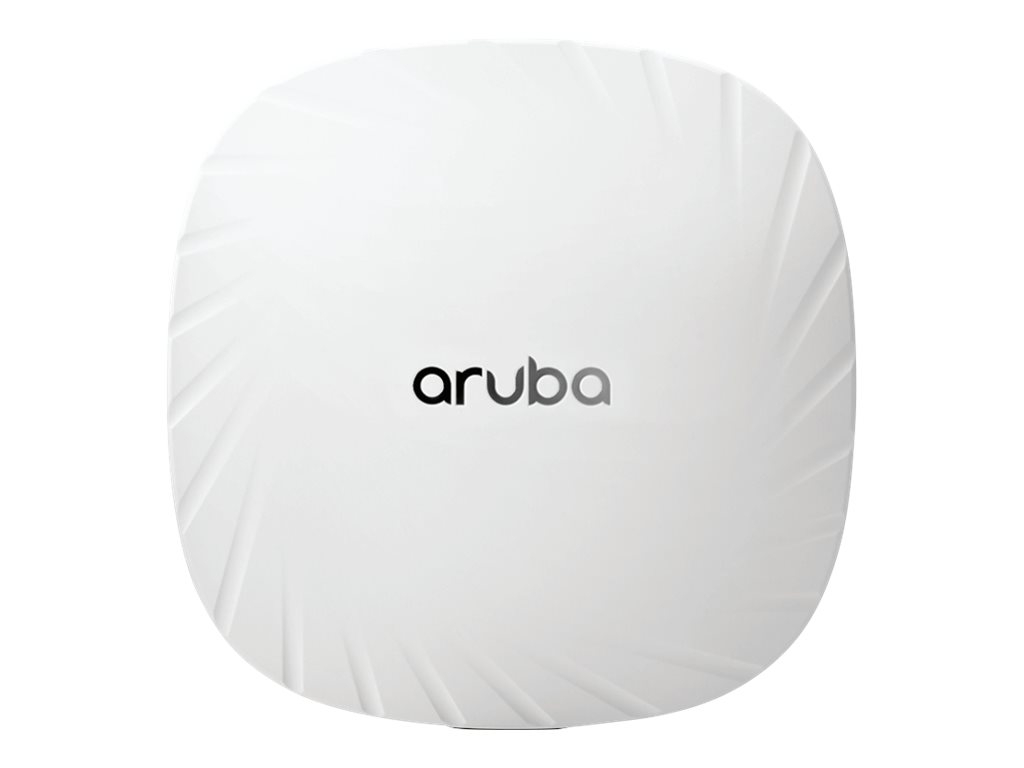

HPE Aruba AP-505 (RW) - Campus - radio access point - Bluetooth, Wi-Fi 6
SKU R2H28A
Product Description: | HPE Aruba AP-505 (RW) - Campus - radio access point - Bluetooth, Wi-Fi 6 |
Device Type: | Radio access point |
Form Factor: | In-ceiling - indoor |
Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band: | 2.4 GHz, 5 GHz |
Performance: | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Aggregate throughput: 1.774 Gbps |
Capacity: | Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8 |
- Specifications
- Description
General | |
Device Type: | Radio access point |
Ruggedized Design: | Indoor |
Networking | |
Form Factor: | In-ceiling |
Connectivity Technology: | Wireless |
Data Transfer Rate: | 1.2 Gbps |
Line Coding Format: | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
Spread Spectrum Method: | OFDM, DSSS, OFDMA |
Frequency Band: | 2.4 GHz, 5 GHz |
Performance: | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Aggregate throughput: 1.774 Gbps |
Capacity: | Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8 |
Status Indicators: | System, status |
Features: | Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT) |
Encryption Algorithm: | SSL, WPA, WPA2, WPA3 |
Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Aerial | |
Antenna: | Internal |
Antenna Qty: | 2 |
Directivity: | Omni-directional |
Gain Level: | 5.7 dBi |
Internet of Things (IoT) | |
Internet of Things (IoT) Compatible: | Yes |
Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
Expansion / Connectivity | |
Interfaces: | 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - micro-USB |
Miscellaneous | |
Included Accessories: | Mounting bracket |
MTBF: | 148 years |
Compliant Standards: | UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2 |
Power | |
Power Over Ethernet (PoE) Supported: | PoE |
Power Consumption Operational: | 8.9 Watt |
Software / System Requirements | |
OS Required: | ArubaOS, InstantOS |
Dimensions & Weight (Shipping) | |
Shipping Width: | 19.3 cm |
Shipping Depth: | 18.3 cm |
Shipping Height: | 6.3 cm |
Shipping Weight: | 645 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - lifetime |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 50 °C |
Humidity Range Operating: | 5 - 93% (non-condensing) |
HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With 1.49 Gbps maximum combined data rate, the 500 Series delivers reliable Wi-Fi for medium density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 Series is Wi-Fi CERTIFIED and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500 Series includes a limited lifetime warranty.
- HPE Aruba Networking 500 Series Campus Access Points deliver a maximum combined data rate of 1.49 Gbps with 2 spatial streams to meet the needs of low and medium density environments.
- HPE Aruba Networking 500 Series Campus Access Points can managed with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.
- HPE Aruba Networking 500 Series Campus Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
