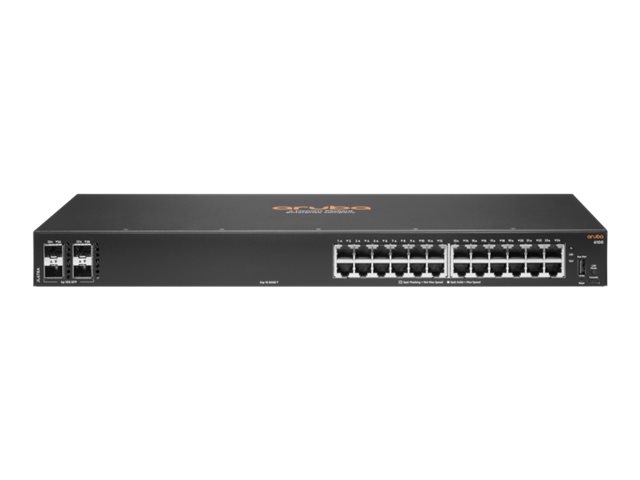

HPE Aruba 6100 24G 4SFP+ Switch - switch - 28 ports - Managed - rack-mountable
SKU JL678A#ABB
Product Description: | HPE Aruba 6100 24G 4SFP+ Switch - switch - 28 ports - Managed - rack-mountable |
Device Type: | Switch - 28 ports - Managed - stackable |
Enclosure Type: | Side to side airflow rack-mountable 1U |
Subtype: | 10 Gigabit Ethernet |
Ports: | 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ |
Performance: | Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs |
Capacity: | Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 |
- Specifications
- Description
General | |
Device Type: | Switch - 28 ports - Managed - stackable |
Enclosure Type: | Side to side airflow rack-mountable 1U |
Subtype: | 10 Gigabit Ethernet |
Ports: | 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ |
Performance: | Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs |
Capacity: | Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 |
MAC Address Table Size: | 8192 entries |
Routing Protocol: | IGMPv2, IGMPv3 |
Encryption Algorithm: | SSL |
Authentication Method: | Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS |
Features: | DNS client, VLAN support, MSTP support, RSTP, LACP support, Energy Efficient Ethernet, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, EntityMIB, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, NAC, port based access control, sFlow, SNMP support |
Compliant Standards: | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3x |
Processor: | 1 x ARM A9: 1.016 GHz |
RAM: | 4 GB DDR3 SDRAM |
Flash Memory: | 16 GB |
Expansion / Connectivity | |
Interfaces: | 24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A |
Power | |
Power Device: | Internal power supply |
Power Provided: | 65 Watt |
Voltage Required: | AC 230V (50/60 Hz) |
Power Consumption Operational: | 15.4 Watt |
Miscellaneous | |
Compliant Standards: | IEC/EN 60950-1, EN 60825, CAN/CSA C22.2 No. 60950 Second Edition, UL 60950-1 Second Edition, FCC Class A certified, VCCI Class A, EN 55022/CISPR 22 Class A, EN 60825-1:2007, IEC 60825-1:2007 Class 1, Laser Class 1, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3, RFC768, RFC1591, RFC783, RFC792, RFC2460, RFC2925, RFC1213, RFC1493, RFC2674 |
Localisation: | English / Europe |
Dimensions & Weight | |
Width: | 44.2 cm |
Depth: | 20.12 cm |
Height: | 4.39 cm |
Weight: | 2.62 kg |
Manufacturer Warranty | |
Service & Support: | Limited warranty - lifetime |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 45 °C |
Humidity Range Operating: | 15 - 95% (non-condensing) |
Humidity Range Storage: | 15 - 90% (non-condensing) |
The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow's unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the HPE Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the HPE CX 6100 also simplifies ownership with no switch software licensing requirements.
- The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
- The HPE Aruba Networking CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
- The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
