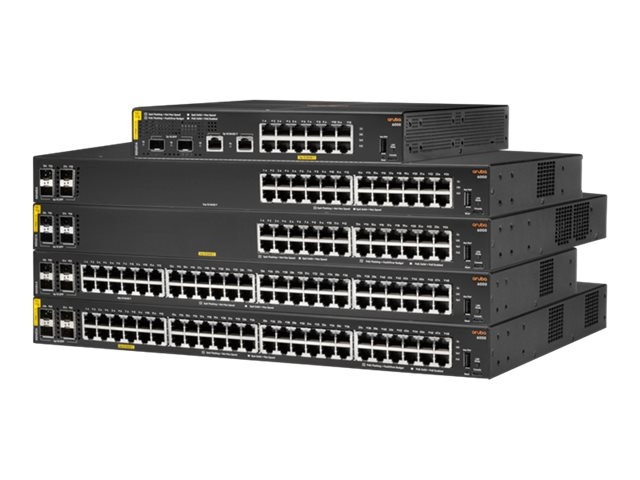

HPE Aruba 6000 24G Class4 PoE 4SFP 370W Switch - switch - 24 ports - Managed - rack-mountable
SKU R8N87A#ABB
Product Description: | HPE Aruba 6000 24G Class4 PoE 4SFP 370W Switch - switch - 24 ports - Managed - rack-mountable |
Device Type: | Switch - 24 ports - Managed - stackable |
Enclosure Type: | Side to side airflow rack-mountable 1U |
Subtype: | Gigabit Ethernet |
Ports: | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE): | PoE |
PoE Budget: | 370 W |
- Specifications
- Description
General | |
Device Type: | Switch - 24 ports - Managed - stackable |
Enclosure Type: | Side to side airflow rack-mountable 1U |
Subtype: | Gigabit Ethernet |
Ports: | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE): | PoE |
PoE Budget: | 370 W |
Performance: | Packet buffer size: 12.38 MB ¦ Throughput: 41.6 Mpps ¦ Switching capacity: 56 Gbps ¦ Latency (1 Gbps): 1.5 µs |
Capacity: | Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 |
MAC Address Table Size: | 8192 entries |
Jumbo Frame Support: | 9198 bytes |
Routing Protocol: | IGMPv2, IGMPv3 |
Remote Management Protocol: | RADIUS, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS |
Encryption Algorithm: | SSL |
Authentication Method: | Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS |
Features: | DNS client, VLAN support, MSTP support, RSTP, LACP support, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, sFlow, SNMP support, fanless, TPM, ACL support |
Compliant Standards: | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3x |
Processor: | 1 x ARM A9: 1.016 GHz |
RAM: | 4 GB DDR3 SDRAM |
Flash Memory: | 16 GB |
Expansion / Connectivity | |
Interfaces: | 24 x 10/100/1000 Base-T RJ-45 PoE Class 4 - 370 W ¦ 4 x Gigabit LAN SFP ¦ 1 x USB Type A ¦ 1 x USB-C console |
Power | |
Power Device: | Internal power supply |
Voltage Required: | AC 100-240 V (50/60 Hz) |
Power Consumption Operational: | 32.7 Watt |
Miscellaneous | |
Compliant Standards: | UL 60950-1, IEC 60950-1, EN 60950-1, CAN/CSA C22.2 No. 60950, EN 60825-1, UL 62368-1 Second Edition, IEC 62368-1 Second Edition, EN 62368-1:2014, VCCI-CISPR 32:2016 Class A, CNS 13438, ICES-003 issue 6 Class A, FCC CFR47 Part 15 A, EN 55032:2015/AC:2016-07 Class A, CISPR 32 Class A, CISPR 24, CISPR 35, EN55024:2010:A1, EN 55035:2017, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3 |
Localisation: | English / Europe |
Dimensions & Weight | |
Width: | 44.2 cm |
Depth: | 26.82 cm |
Height: | 4.39 cm |
Weight: | 4.19 kg |
Manufacturer Warranty | |
Service & Support: | Limited warranty - lifetime |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 45 °C |
Humidity Range Operating: | 15 - 95% (non-condensing) |
Humidity Range Storage: | 15 - 90% (non-condensing) |
The HPE Aruba Networking CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and security-enhanced access, the HPE Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The HPE Aruba Networking CX 6000 Switch Series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The HPE Aruba CX 6000 series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.
- The HPE Aruba Networking CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
- The HPE Aruba Networking CX 6000 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
- The HPE Aruba Networking CX 6000 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, Aruba Central , easy to use Web GUI, or industry standard CLI.
