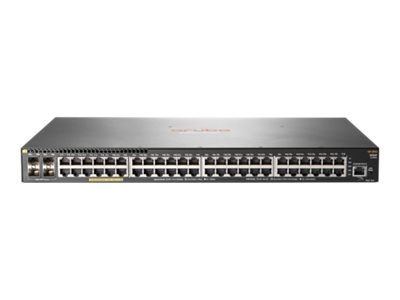

HPE Aruba 2930F 48G PoE+ 4SFP - switch - 48 ports - Managed - rack-mountable

SKU JL262A#ABB
Product Description:HPE Aruba 2930F 48G PoE+ 4SFP - switch - 48 ports - Managed - rack-mountable
Device Type:Switch - 48 ports - L3 - Managed - stackable
Enclosure Type:Rack-mountable 1U
Subtype:Gigabit Ethernet
Ports:48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE):PoE+
PoE Budget:370 W
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Switch - 48 ports - L3 - Managed - stackable
Enclosure Type:Rack-mountable 1U
Subtype:Gigabit Ethernet
Ports:48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE):PoE+
PoE Budget:370 W
Performance:Throughput: 77.4 Mpps ¦ Switching capacity: 104 Gbps ¦ Latency (1 Gbps): 3.8 µs
Capacity:Jumbo frame size: 9220 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size:32K entries
Routing Protocol:OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol:SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Encryption Algorithm:MD5, SSL
Authentication Method:RADIUS, PAP, CHAP, TACACS, TACACS+
Features:Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, TFTP support, ACL support, QoS, Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, UDLD, LLDP support, DHCP relay, LACP, MIB, MAC address lockout, dynamic ARP protection, DHCP protection, GVRP, MVRP, NDP, CoS, SNMP support, ToS, OpenFlow support, CPU protection, ICMP, ICMP Router Discovery Protocol (IRDP), VXLAN, MIB II
Compliant Standards:IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor:1 x ARM Cortex-A9: 1.016 GHz
RAM:1 GB DDR3 SDRAM
Flash Memory:4 GB
Expansion / Connectivity
Interfaces:48 x 1000Base-T RJ-45 PoE+ ¦ 4 x Gigabit LAN SFP ¦ 1 x serial (console)
Expansion Slots:1 (total) / 1 (free) x Expansion Slot
Installed Modules Qty (Max):0 (installed) / 4 (max)
Power
Power Device:Internal power supply
Installed Qty:1
Power Provided:459 Watt
Voltage Required:AC 120/230 V (50/60 Hz)
Power Consumption Operational:48.6 Watt
80 PLUS Certification:80 PLUS Silver
Miscellaneous
Included Accessories:Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
Compliant Standards:CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Localisation:English / Europe
Software / System Requirements
Software Included:Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Dimensions & Weight
Width:44.25 cm
Depth:30.42 cm
Height:4.39 cm
Weight:4.46 kg
Manufacturer Warranty
Service & Support:Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:45 °C
Humidity Range Operating:15 - 95% (non-condensing)
Min Storage Temperature:-40 °C
Max Storage Temperature:70 °C
Humidity Range Storage:15 - 95% (non-condensing)
vis mere
The Aruba 2930F switch series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, and IPv6 with no software licensing required. The Aruba 2930F switch series provides a convenient and cost-effective access switch solution that can be quickly set up.
  • Switch auto-configuration automatically configures switch for different settings
  • Per-port tunneled node
  • HTTP redirect function
  • Traffic prioritization allows real-time traffic classification
  • Large buffers provide graceful congestion management
  • PoE support
  • Energy-efficient design
  • Selectable queue configurations
  • Authentication flexibility




The technical details come from 3rd party. edgemo is not responsible for any errors.
