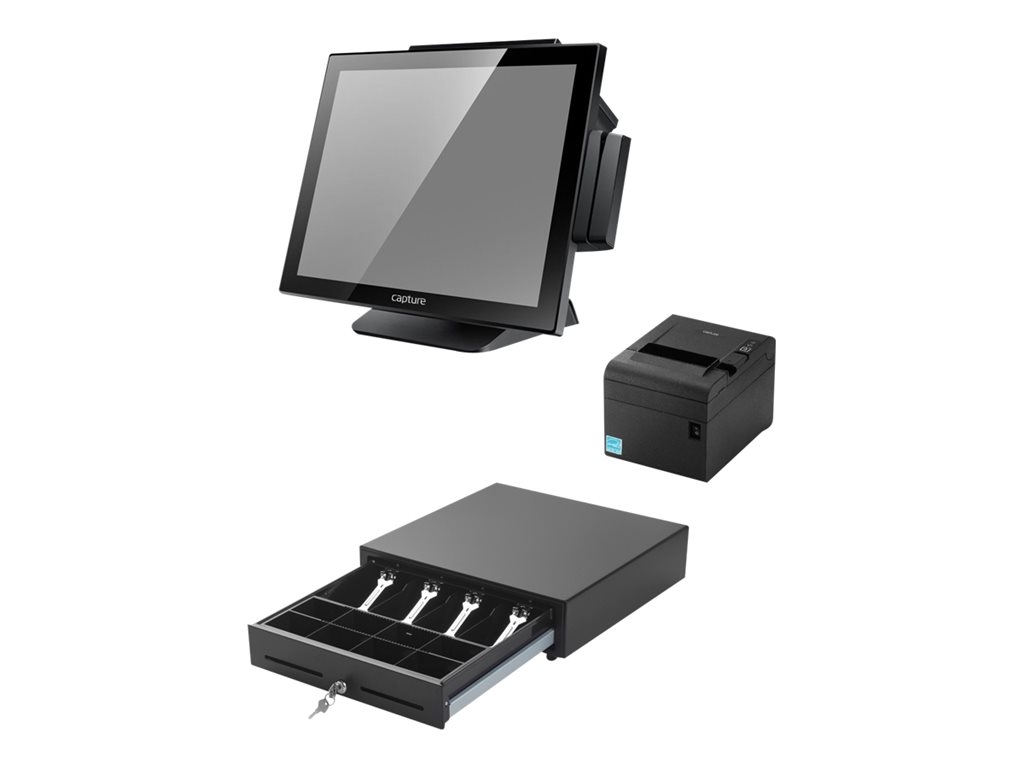

Printers & POSCapture Swordfish - POS In a Box - all-in-one - Celeron J1900 2 GHz - 8 GB - SSD 128 GB - LCD 15" - with cash drawer 410mm 4B/8C
SKU CA-PIB-1
| Product Description: | Capture Swordfish - POS In a Box - all-in-one - Celeron J1900 2 GHz - 8 GB - SSD 128 GB - LCD 15" - with cash drawer 410mm 4B/8C |
| Type: | Point of sale terminal - all-in-one |
| Processor: | 1 x Intel Celeron J1900 / 2 GHz (, up to 2.42 GHz, (Quad-Core) |
| Cache Memory: | 2 MB |
| Cache Per Processor: | 2 MB |
| RAM: | 8 GB DDR3L SDRAM |
| Hard Drive: | SSD 128 GB |
- Specifications
- Description
| General | |
| Type: | Point of sale terminal |
| Product Form Factor: | All-in-one |
| Built-in Devices: | Speaker, capacitive touch screen |
| Colour: | Black |
| Bundled with: | Cash drawer 410mm 4B/8C |
| Processor / Chipset | |
| CPU: | Intel Celeron J1900 |
| Clock Speed: | 2 GHz |
| Max Turbo Speed: | 2.42 GHz |
| Number of Cores: | Quad-Core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| Cache Memory | |
| Installed Size: | 2 MB |
| Cache Per Processor: | 2 MB |
| RAM | |
| Installed Size: | 8 GB |
| Technology: | DDR3L SDRAM |
| Effective Memory Speed: | 1333 MHz |
| Form Factor: | SO-DIMM 204-pin |
| Hard Drive | |
| Type: | SSD |
| Capacity: | 1 x 128 GB |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | LCD |
| Touchscreen: | Yes |
| Diagonal Size: | 15" |
| Native Resolution: | 1024 x 768 (XGA) |
| Widescreen Display: | No |
| Image Aspect Ratio: | 4:3 |
| Image Brightness: | 300 cd/m² |
| Monitor Features: | Projected Capacitive Touch (P-CAP) technology, tilt stand (15°- 85°) |
| Graphics Controller | |
| Graphics Processor: | Intel HD Graphics |
| Video Interfaces: | VGA |
| Networking | |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Printer | |
| Type: | Receipt printer |
| Technology: | Direct thermal |
| Interface: | Serial, USB, Ethernet |
| Max Print Speed: | 220 mm/sec |
| Media Size: | Roll (8 cm) |
| Expansion / Connectivity | |
| Slots: | 1 mSATA |
| Interfaces: | 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 5 x USB 2.0 (4 bottom, 1 side) ¦ 1 x VGA ¦ 4 x serial - DB-9 (powered (DC 5V/12V selectable)) ¦ 1 x parallel - DB-25 ¦ 1 x cash drawer - RJ-11 (powered (DC 12V/24V)) ¦ 2 x serial (2 internal) |
| Miscellaneous | |
| VESA Mounting Interface: | 75 x 75 mm |
| Compliant Standards: | VESA FDMI, FCC, RoHS, WEEE |
| Power | |
| Device Type: | Power adapter |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Operating System / Software | |
| OS Provided: | Windows 10 IoT 64-bit Edition |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight | |
| Dimensions & Weight Details: | 13.2 cm - 18.2 cm - 12.5 cm - 1.3 kg - printer ¦ 41 cm - 41.5 cm - 10 cm - 6.8 kg - cash drawer |
| Width: | 35.5 cm |
| Depth: | 20.5 cm |
| Height: | 30.3 cm |
| Weight: | 5 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The technical details come from 3rd party. edgemo is not responsible for any errors.
