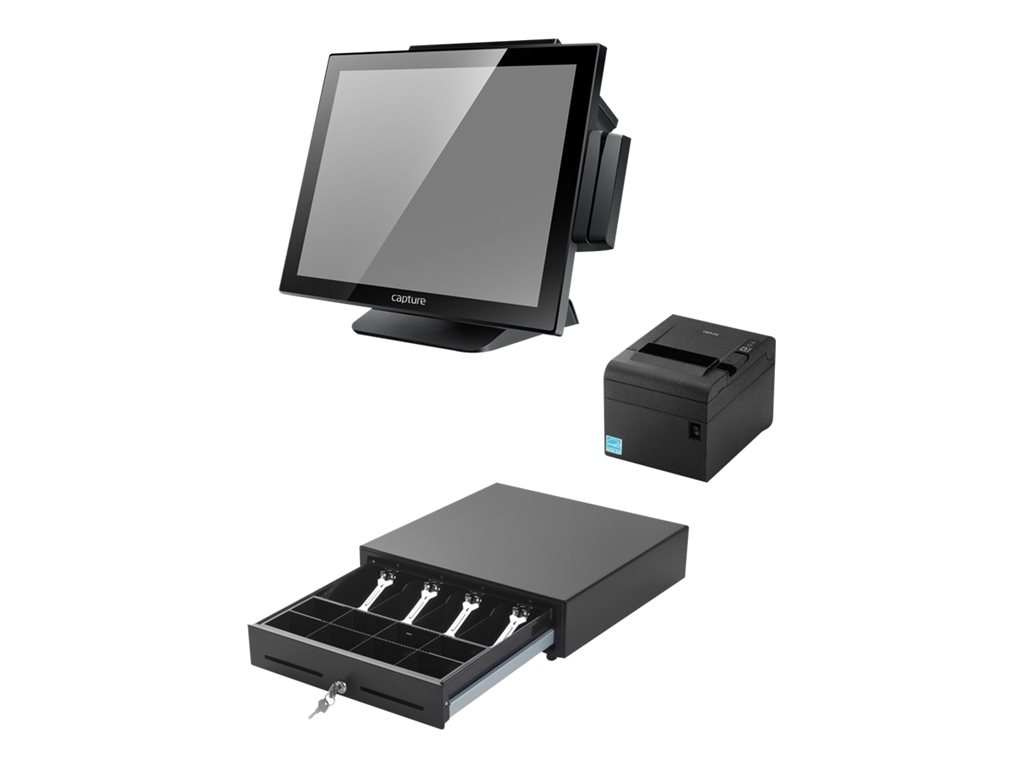

Capture Swordfish - POS In a Box - all-in-one - 1 x Celeron J1900 / up to 2.42 GHz - RAM 8 GB - SSD 128 GB - HD Graphics - Gigabit Ethernet - Win 10 IoT 64-bit - monitor: LCD 15" 1024 x 768 (XGA) touchscreen - black - with cash drawer 410mm 4B/8C
SKU CA-PIB-1
Product Description: | Capture Swordfish - POS In a Box - all-in-one Celeron J1900 2 GHz - 8 GB - SSD 128 GB - LCD 15" - with cash drawer 410mm 4B/8C |
Type: | Point of sale terminal - all-in-one |
Processor: | 1 x Intel Celeron J1900 / 2 GHz (, up to 2.42 GHz, (Quad-Core) |
Cache Memory: | 2 MB |
Cache Per Processor: | 2 MB |
RAM: | 8 GB DDR3L SDRAM |
Hard Drive: | SSD 128 GB |
- Specifications
- Description
General | |
Type: | Point of sale terminal |
Product Form Factor: | All-in-one |
Built-in Devices: | Speaker, capacitive touch screen |
Colour: | Black |
Bundled with: | Cash drawer 410mm 4B/8C |
Processor / Chipset | |
CPU: | Intel Celeron J1900 |
Clock Speed: | 2 GHz |
Max Turbo Speed: | 2.42 GHz |
Number of Cores: | Quad-Core |
CPU Qty: | 1 |
Max CPU Qty: | 1 |
Cache Memory | |
Installed Size: | 2 MB |
Cache Per Processor: | 2 MB |
RAM | |
Installed Size: | 8 GB |
Technology: | DDR3L SDRAM |
Effective Memory Speed: | 1333 MHz |
Form Factor: | SO-DIMM 204-pin |
Hard Drive | |
Type: | SSD |
Capacity: | 1 x 128 GB |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | LCD |
Touchscreen: | Yes |
Diagonal Size: | 15" |
Native Resolution: | 1024 x 768 (XGA) |
Widescreen Display: | No |
Image Aspect Ratio: | 4:3 |
Image Brightness: | 300 cd/m² |
Monitor Features: | Projected Capacitive Touch (P-CAP) technology, tilt stand (15°- 85°) |
Graphics Controller | |
Graphics Processor: | Intel HD Graphics |
Video Interfaces: | VGA |
Networking | |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Printer | |
Type: | Receipt printer |
Technology: | Direct thermal |
Interface: | Serial, USB, Ethernet |
Max Print Speed: | 220 mm/sec |
Media Size: | Roll (8 cm) |
Expansion / Connectivity | |
Slots: | 1 mSATA |
Interfaces: | 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 5 x USB 2.0 (4 bottom, 1 side) ¦ 1 x VGA ¦ 4 x serial - DB-9 (powered (DC 5V/12V selectable)) ¦ 1 x parallel - DB-25 ¦ 1 x cash drawer - RJ-11 (powered (DC 12V/24V)) ¦ 2 x serial (2 internal) |
Miscellaneous | |
VESA Mounting Interface: | 75 x 75 mm |
Compliant Standards: | VESA FDMI, FCC, RoHS, WEEE |
Power | |
Device Type: | Power adapter |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Operating System / Software | |
OS Provided: | Windows 10 IoT 64-bit Edition |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years |
Dimensions & Weight | |
Dimensions & Weight Details: | 13.2 cm - 18.2 cm - 12.5 cm - 1.3 kg - printer ¦ 41 cm - 41.5 cm - 10 cm - 6.8 kg - cash drawer |
Width: | 35.5 cm |
Depth: | 20.5 cm |
Height: | 30.3 cm |
Weight: | 5 kg |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 20 - 80% (non-condensing) |
The technical details come from 3rd party. edgemo is not responsible for any errors.
