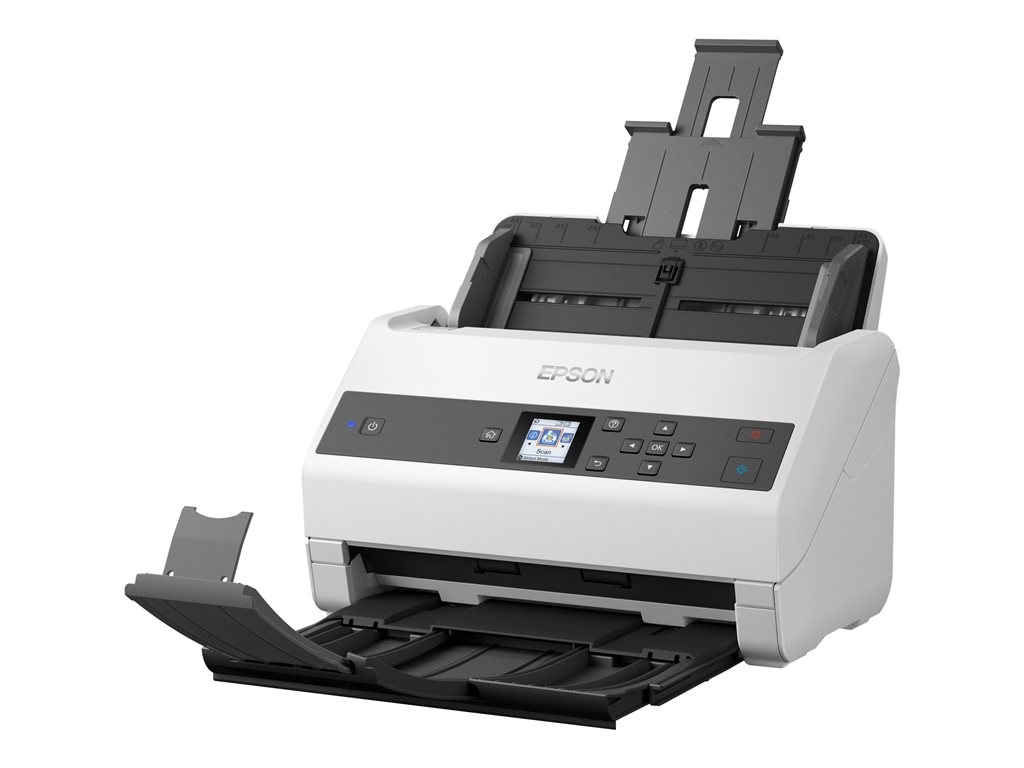

Printers & POSEpson WorkForce DS-870 - document scanner - desktop - USB 3.0
SKU B11B250401
| Product Description: | Epson WorkForce DS-870 - document scanner - desktop - USB 3.0 |
| Device Type: | Document scanner - desktop |
| Interface Type: | USB 3.0 |
| Scanning Sensor Type: | Contact Image Sensor (CIS) |
| Light Source: | RGB LED |
| Max Supported Document Size: | 215.9 x 6096 mm |
| Input Type: | Colour |
- Specifications
- Description
| General | |
| Type: | Document scanner - desktop |
| Interface Type: | USB 3.0 |
| Max Supported Document Size: | 215.9 x 6096 mm |
| Scanner | |
| Input Type: | Colour |
| Colour Depth: | 30-bit colour |
| Colour Depth (External): | 24-bit (16.7 million colours) |
| Optical Resolution: | 600 dpi x 600 dpi |
| Interpolated Resolution: | 1200 dpi x 1200 dpi |
| Scan Mode: | Single-pass |
| Automatic Duplexing: | Yes |
| Scanning Sensor Type: | Contact Image Sensor (CIS) |
| Bulb / Light Source Type: | RGB LED |
| Max Document Scan Speed B/W: | 65 ppm |
| Max Document Scan Speed Colour: | 65 ppm |
| Duty Cycle: | 7000 scans per day |
| Scanner Speed Details: | 65 ppm - black & white - A4 - 300 dpi ¦ 130 ipm - duplex - black & white - A4 - 300 dpi ¦ 65 ppm - colour - A4 - 300 dpi ¦ 130 ipm - duplex - colour - A4 - 300 dpi ¦ 65 ppm - black & white - A4 - 200 dpi ¦ 130 ipm - duplex - black & white - A4 - 200 dpi ¦ 65 ppm - colour - A4 - 200 dpi ¦ 130 ipm - duplex - colour - A4 - 200 dpi |
| Scanner Features: | EPSON ReadyScan LED Technology, built-in LCD screen, A3 stitching, Ultrasonic sensor, Double Feed Detection Skip (DFDS) |
| Compliant Standards: | TWAIN, ISIS, WIA, SANE |
| Media Handling | |
| Max Document Size: | 215.9 mm x 6096 mm |
| Supported Document Type: | Plain paper, business card, plastic card, post card |
| Document Feeder Type: | Automatic |
| Document Storage Capacity: | 100 sheets |
| Expansion / Connectivity | |
| Interfaces Details: | USB 3.0 |
| Miscellaneous | |
| Cables Included: | 1 x USB cable |
| Compliant Standards: | IPv6 Ready |
| Power | |
| Power Device: | External power adapter |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational (Standby): | 30 Watt |
| Power Consumption Stand by: | 10 Watt |
| Power Consumption Sleep: | 1.5 Watt |
| Software / System Requirements | |
| Software Included: | Drivers & Utilities, EPSON Scan 2, EPSON Document Capture Pro 2.0 |
| OS Required: | Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Apple MacOS X 10.6 or later, Microsoft Windows XP SP3, Microsoft Windows Server 2008 (32/64-bits), Windows 8, Microsoft Windows Server 2012 R2, Windows 8.1, Windows 10 |
| Dimensions & Weight | |
| Width: | 29.6 cm |
| Depth: | 16.9 cm |
| Height: | 16.7 cm |
| Weight: | 3.6 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year - on-site |
| Environmental Parameters | |
| Min Operating Temperature: | 5 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 15 - 80% (non-condensing) |
Get world-class performance for your busy workgroup with the fast, reliable and robust DS-870 document scanner. Designed for environments where speed and dependability are paramount, the DS-870 offers blazing-fast speeds up to 65 ppm/130 ipm, plus a high-volume 100-page ADF and peak daily duty cycle of up to 7,000 sheets. The included TWAIN and ISIS drivers ensure seamless integration with existing software, while a convenient, color LCD display and buttons make navigating scan jobs and selecting modes easy.
- Advanced paper feed technology
- Powerful software with OCR
- PC and Mac compatible
The technical details come from 3rd party. edgemo is not responsible for any errors.
