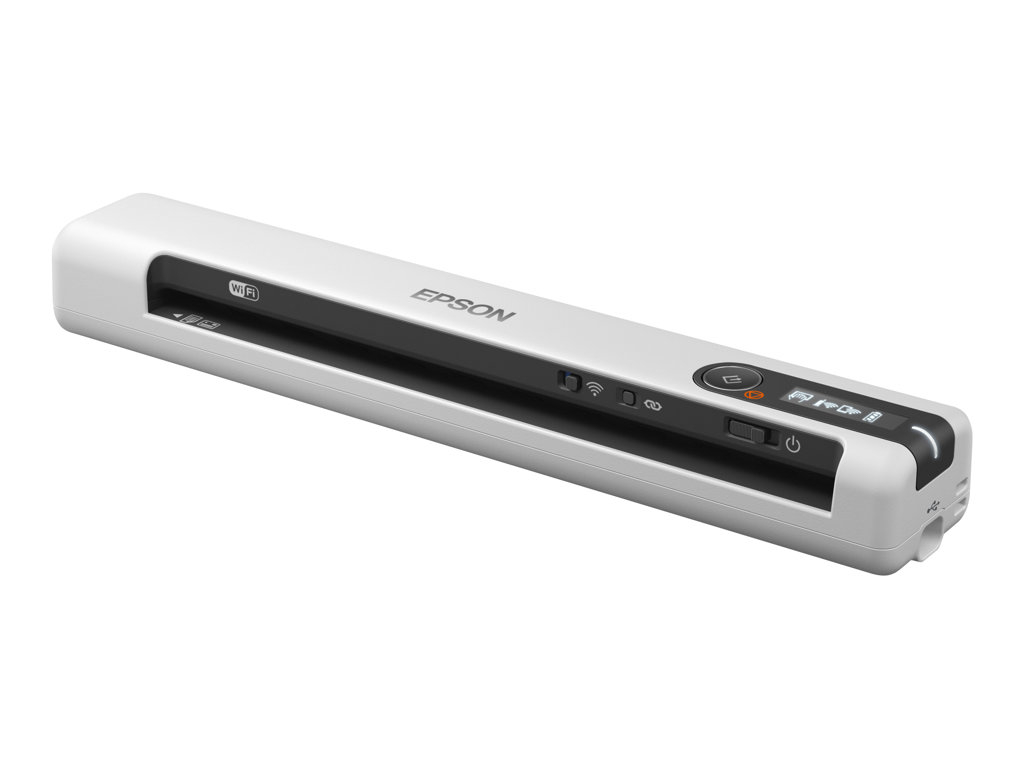

Printers & POSEpson WorkForce DS-80W - document scanner - portable - USB 2.0, Wi-Fi(n)
SKU B11B253402
| Product Description: | Epson WorkForce DS-80W - document scanner - portable - USB 2.0, Wi-Fi(n) |
| Device Type: | Document scanner - portable |
| Interface Type: | USB 2.0, Wi-Fi(n) |
| Scanning Sensor Type: | Contact Image Sensor (CIS) |
| Light Source: | 3-colour RGB LED |
| Max Supported Document Size: | 215.9 x 1828.8 mm |
| Input Type: | Colour |
- Specifications
- Description
| General | |
| Type: | Document scanner - portable |
| Interface Type: | USB 2.0, Wi-Fi(n) |
| Max Supported Document Size: | 215.9 x 1828.8 mm |
| Scanner | |
| Input Type: | Colour |
| Colour Depth: | 16-bit (64k colours) |
| Colour Depth (External): | 8-bit (256 colours) |
| Optical Resolution: | 600 dpi x 600 dpi |
| Interpolated Resolution: | 1200 dpi x 1200 dpi |
| Scan Mode: | Single-pass |
| Scanning Sensor Type: | Contact Image Sensor (CIS) |
| Bulb / Light Source Type: | 3-colour RGB LED |
| Max Document Scan Speed B/W: | 15 ppm |
| Max Document Scan Speed Colour: | 15 ppm |
| Control Panel Buttons Functions: | Scan, stop, wireless connect, wireless on/off |
| Duty Cycle: | 300 scans per day |
| Scanner Speed Details: | 15 ppm - black & white - 300 dpi ¦ 15 ppm - colour - 300 dpi |
| Compliant Standards: | TWAIN |
| Media Handling | |
| Max Document Size: | 215.9 mm x 1828.8 mm |
| Supported Document Type: | Plain paper |
| Expansion / Connectivity | |
| Interfaces Details: | USB 3.0 |
| Miscellaneous | |
| Cables Included: | 1 x USB cable |
| Compliant Standards: | RoHS |
| Power | |
| Power Consumption Operational (Standby): | 4.5 Watt |
| Power Consumption Stand by: | 3 Watt |
| Power Consumption Sleep: | 1 Watt |
| Software / System Requirements | |
| OS Required: | Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits), Apple MacOS X 10.11.x - 10.13.x |
| Dimensions & Weight | |
| Width: | 27.2 cm |
| Depth: | 4.57 cm |
| Height: | 3.3 cm |
| Weight: | 399 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 33.8 cm |
| Shipping Depth: | 14.2 cm |
| Shipping Height: | 6.6 cm |
| Shipping Weight: | 590 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years - carry-in |
| Environmental Parameters | |
| Min Operating Temperature: | 5 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 10 - 80% (non-condensing) |
The DS-80W is easy to use, set up and transport with its space-saving design, and can be used without a power source, making it even easier to stay highly organized. It detects whether it's in wireless or USB mode - no intervention required. TWAIN drivers enable seamless integration to third party applications.
- Scan anywhere: small, lightweight design
- USB cable or integrated battery power: scan up to 300 pages between battery charges
- Fast scanning speeds: at up to four seconds per page (8.5ppm)
- Simplify your workload: continuous scanning with automatic feed mode
