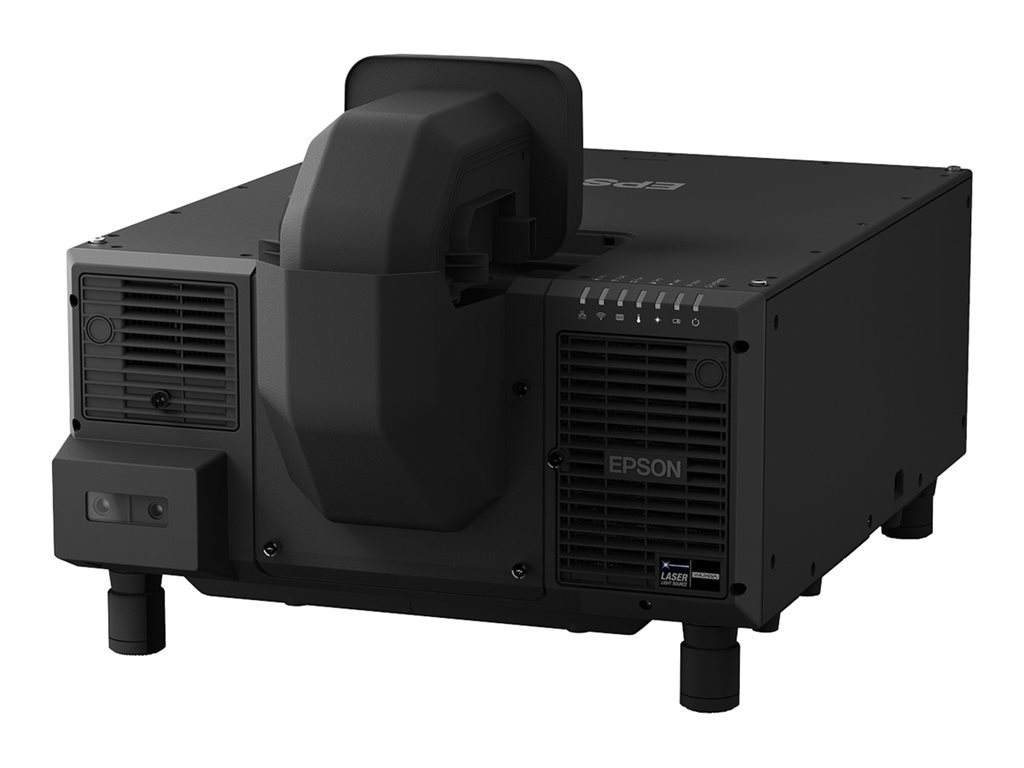

Epson EB-L20000U - 3LCD projector - LAN - black
SKU V11H833840
Product Description: | Epson EB-L20000U - 3LCD projector - LAN - black |
Device Type: | 3LCD projector - 1080p |
Colour: | Black |
Brightness (White): | 20000 lumens |
Brightness (Colour): | 20000 lumens |
Contrast Ratio: | 2000:1 / 2500000:1 (dynamic) |
Resolution: | WUXGA (1920 x 1200) |
- Specifications
- Description
General | |
Device Type: | 3LCD projector - 1080p |
Networking: | Ethernet |
Enclosure Colour: | Black |
Projector | |
Brightness (White): | 20000 lumens |
Brightness (Colour): | 20000 lumens |
Brightness (Reduced): | 14000 lumens |
Contrast Ratio: | 2000:1 / 2500000:1 (dynamic) |
Image Size: | 152 cm - 2540 cm |
Projection Distance: | 2 m - 55.6 m |
Resolution: | WUXGA - WUXGA (1920 x 1200) |
Native Aspect Ratio: | 16:10 |
Colour Support: | 1.07 billion colours |
Bulb type: | Laser |
Bulb life cycle: | Up to 20000 hour(s) - normal mode ¦ Up to 30000 hour(s) - economic mode |
Features: | 3LCD Technology, Crystal Clear Fine (C2 Fine), DICOM Simulation Mode, Dynamic Mode, Auto Calibration, Presentation Mode, Cinema Mode |
Lens | |
Focus Type: | Powered |
Lens Aperture: | F/1.8-2.3 |
Zoom Type: | Powered |
Zoom Factor: | 1.6x |
Keystone Correction Direction: | Horizontal, vertical |
Vertical Keystone Correction: | -45 / +45 |
Horizontal Keystone Correction: | -30 / +30 |
Video Input | |
Video Interfaces: | VGA, HDMI, component video, DVI, 3G-SDI, HD-SDI, SD-SDI |
LAN and Wireless Image Transferring Protocols: | Wired LAN |
Expansion / Connectivity | |
Interfaces: | 1 x component video / RGB output - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x USB 2.0 - 4 pin USB Type B (management) ¦ 1 x 3G/HD/SD-SDI input ¦ 1 x 3G/HD/SD-SDI output ¦ 2 x USB - 4 pin USB Type A ¦ 1 x HDMI input - 19 pin HDMI Type A ¦ 1 x DVI-D input ¦ 1 x HDBaseT - RJ-45 ¦ 1 x component video output - BNC x 5 ¦ 1 x network - RJ-45 ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) |
Miscellaneous | |
Included Accessories: | Cable cover, wireless remote control |
Security Features: | Security lock slot (cable lock sold separately), password protection, security bar |
Security Slot Type: | Kensington security slot |
Power | |
Power Source: | AC |
Voltage Required: | AC 120/230 V (50 - 60 Hz) |
Power Consumption Operational: | 1860 Watt |
Power Consumption Stand by: | 0.5 Watt |
Software / System Requirements | |
Software Included: | EasyMP Multi PC Projection |
Dimensions & Weight | |
Width: | 62 cm |
Depth: | 79 cm |
Height: | 35.8 cm |
Weight: | 49.6 kg |
Environmental Parameters | |
Humidity Range Operating: | 20 - 80% |
Sound Emission: | 49 dBA |
Sound Emission (Economic Mode): | 40 dBA |
Epson's first model in the popular compact 20,000-lumen WUXGA installation projection sector. These projectors are designed to expand Epson's line-up in the high-end AV rental sector, and to be used at events, festivals, visitor attractions, large auditoriums, trade shows and shopping centers, as well as for corporate and educational purposes.
The EB-L20000U has a light, compact design that makes it easy to integrate into existing infrastructure. It is also compatible with the 4K-compatible lenses, so introducing 4K into your installations needn't require the additional expense of replacing lenses.
Installation is made easy not just by the compact casing, but also by a design that means these projectors can be installed at and project from any angle, including portrait. A built-in camera allows remote diagnostics and set-up, and can be used in conjunction with Epson's Professional Projector Tool software to set up multiple-unit installations, and take advantage of advanced techniques such as edge blending and projection mapping. Additionally, interchangeable interface boards mean greater flexibility and futureproofing for as yet unreleased interfaces and transmission standards.
Thanks to their sealed design and durable inorganic phosphor wheel technology, this projector offers outstanding fit.
The EB-L20000U has a light, compact design that makes it easy to integrate into existing infrastructure. It is also compatible with the 4K-compatible lenses, so introducing 4K into your installations needn't require the additional expense of replacing lenses.
Installation is made easy not just by the compact casing, but also by a design that means these projectors can be installed at and project from any angle, including portrait. A built-in camera allows remote diagnostics and set-up, and can be used in conjunction with Epson's Professional Projector Tool software to set up multiple-unit installations, and take advantage of advanced techniques such as edge blending and projection mapping. Additionally, interchangeable interface boards mean greater flexibility and futureproofing for as yet unreleased interfaces and transmission standards.
Thanks to their sealed design and durable inorganic phosphor wheel technology, this projector offers outstanding fit.
- Compact design that makes it easy to integrate into existing infrastructure
- Compatible with the 4K-compatible lenses
- Can be installed at and project from any angle, including portrait
- A built-in camera allows remote diagnostics
