Printers & POSEpson EB-770F - 3LCD projector - ultra short-throw - 802.11a/b/g/n/ac wireless / LAN/ Miracast - white
SKU V11HA79080

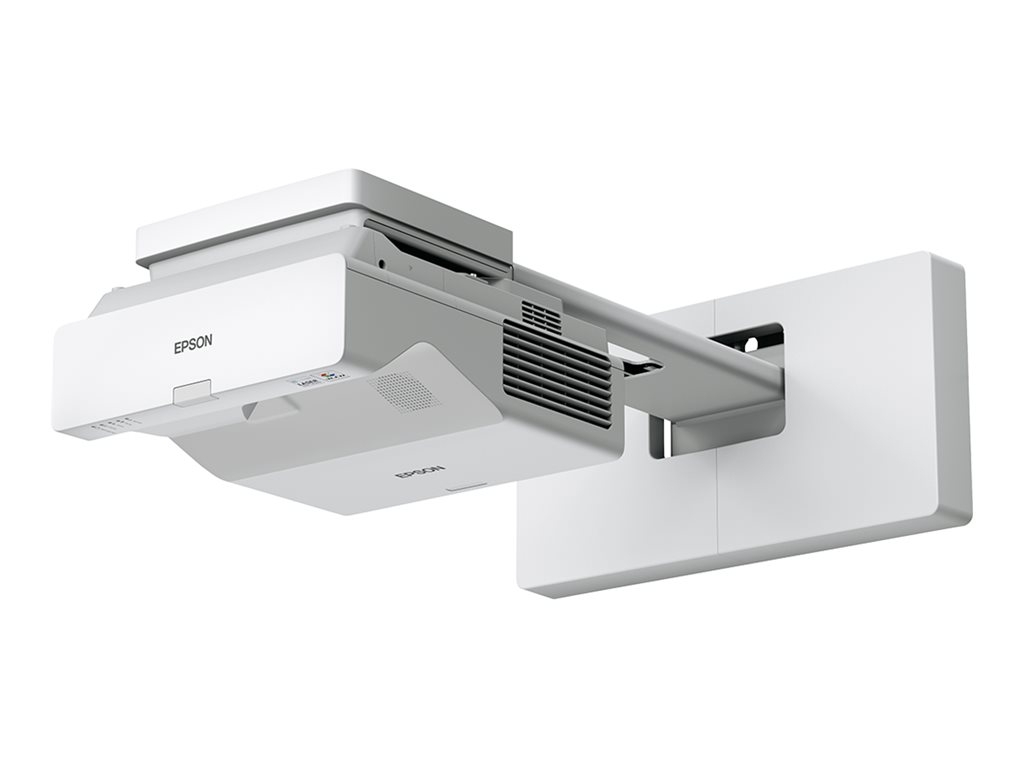

| Product Description: | Epson EB-770F - 3LCD projector - ultra short-throw - 802.11a/b/g/n/ac wireless / LAN/ Miracast - white |
| Device Type: | 3LCD projector - 1080p |
| Colour: | White |
| Built-in Devices: | Speaker |
| Brightness (White): | 4100 lumens |
| Brightness (Colour): | 4100 lumens |
| Contrast Ratio: | 2500000:1 |
- Specifications
- Description
| General | |
| Device Type: | 3LCD projector - 1080p |
| Built-in Devices: | Speaker |
| Networking: | 802.11a/b/g/n/ac, Ethernet |
| Enclosure Colour: | White |
| Projector | |
| Brightness (White): | 4100 lumens |
| Brightness (Colour): | 4100 lumens |
| Brightness (Reduced): | 2800 lumens |
| Contrast Ratio: | 2500000:1 |
| Image Size: | 165.1 cm - 305 cm |
| Throw Ratio: | 0.25 - 0.35:1 |
| Digital Zoom Factor: | 1.35x |
| Resolution: | Full HD |
| Native Aspect Ratio: | 16:9 |
| Colour Support: | 1.07 billion colours |
| Max Sync Rate (V x H): | 240 Hz |
| Bulb type: | Laser |
| Bulb life cycle: | Up to 20000 hour(s) - normal mode ¦ Up to 30000 hour(s) - economic mode |
| Features: | Blackboard Mode, EPSON Quick Corner, Edge blending, EPSON 3LCD technology, Split Screen, Crestron RoomView, DICOM Simulation Mode, AMX Device Discovery, Direct Power On, Direct Power Off, Control4 Certified, Dynamic Mode, Digital Zoom, auto power on, Crestron Integrated Partner, document camera compatible, Presentation Mode, Extron IPLink certified, Cinema Mode, RGB liquid crystal shutter, 21:9 aspect ratio support |
| Lens | |
| Type: | Ultra short-throw lens |
| Focus Type: | Manual |
| Lens Aperture: | F/1.6 |
| Keystone Correction Direction: | Horizontal, vertical |
| Vertical Keystone Correction: | -3 / +3 |
| Horizontal Keystone Correction: | -3 / +3 |
| Video Input | |
| Video Interfaces: | VGA, HDMI, composite video |
| LAN and Wireless Image Transferring Protocols: | IEEE 802.11b, IEEE 802.11g, wired LAN, IEEE 802.11a, IEEE 802.11n, Miracast, IEEE 802.11ac |
| Speakers | |
| Type: | Integrated |
| Sound Output Mode: | Mono |
| Output Power / Channel: | 16 Watt |
| Speakers: | 1 x mixed channel |
| Expansion / Connectivity | |
| Interfaces: | 2 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 3 x HDMI input - 19 pin HDMI Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x composite video input ¦ 3 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x serial RS-232C ¦ 1 x network - RJ-45 ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) |
| Miscellaneous | |
| Included Accessories: | Remote control, battery for remote control |
| Security Features: | Security lock slot (cable lock sold separately), password protection, control panel lock, Wireless LAN Lock, padlock, security cable hole |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | IPv6, IPv4 |
| Environmental Standards | |
| TCO Certified: | TCO Certified Projectors 9 |
| Power | |
| Power Source: | AC |
| Voltage Required: | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational: | 263 Watt |
| Power Consumption Stand by: | 0.5 Watt |
| Software / System Requirements | |
| Software Included: | EasyMP Multi PC Projection, Epson Projector Management Software, Epson Projector Content Manager |
| Dimensions & Weight | |
| Width: | 35.6 cm |
| Depth: | 39.5 cm |
| Height: | 13.3 cm |
| Weight: | 5.9 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years / 12000 hours - carry-in |
| Environmental Parameters | |
| Humidity Range Operating: | 20 - 80% |
| Sound Emission: | 37 dB |
| Sound Emission (Economic Mode): | 27 dB |
The EB-770F's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.
With 4,100 lumens CLO and 3LCD technology, the display is bright and vibrant up to 150", clearly visible from all angles and at a distance. The experience is immersive and user-friendly.
Scalable from 49-150", display sizes can be optimized for each room with one product and a fixed cost, and the EB-770F supports multi-projection edge-blending for a low cost, large, seamless, energy efficient 3 780 x 1 080p image.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes.
With 4,100 lumens CLO and 3LCD technology, the display is bright and vibrant up to 150", clearly visible from all angles and at a distance. The experience is immersive and user-friendly.
Scalable from 49-150", display sizes can be optimized for each room with one product and a fixed cost, and the EB-770F supports multi-projection edge-blending for a low cost, large, seamless, energy efficient 3 780 x 1 080p image.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes.
- Scalable FHD display for any room - 49-150" UST display for unrestricted viewing (no shadows/reflections)
- Bright and energy efficient laser - 4,100 lm CLO with 3LCD technology for brighter colors at only 205 W
- Effortless connectivity options - auto-on, wired/wireless display with USB 2 A output for smart sticks
The technical details come from 3rd party. edgemo is not responsible for any errors.
