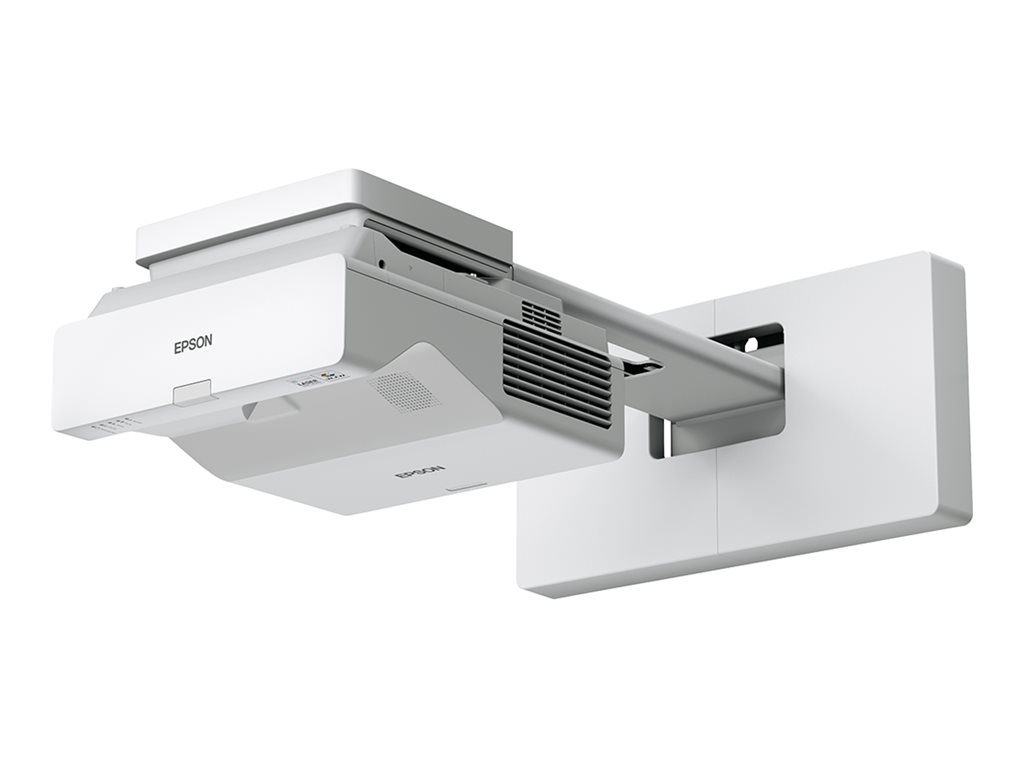

Printers & POSEpson EB-760W - 3LCD projector - ultra short-throw - 802.11a/b/g/n/ac wireless / LAN/ Miracast - white
SKU V11HA81080
| Product Description: | Epson EB-760W - 3LCD projector - ultra short-throw - 802.11a/b/g/n/ac wireless / LAN/ Miracast - white |
| Device Type: | 3LCD projector |
| Colour: | White |
| Built-in Devices: | Speaker |
| Brightness (White): | 4100 lumens |
| Brightness (Colour): | 4100 lumens |
| Contrast Ratio: | 2500000:1 |
- Specifications
- Description
| General | |
| Device Type: | 3LCD projector |
| Built-in Devices: | Speaker |
| Networking: | 802.11a/b/g/n/ac, Ethernet |
| Enclosure Colour: | White |
| Projector | |
| Brightness (White): | 4100 lumens |
| Brightness (Colour): | 4100 lumens |
| Brightness (Reduced): | 2800 lumens |
| Contrast Ratio: | 2500000:1 |
| Image Size: | 165.1 cm - 304.8 cm |
| Throw Ratio: | 0.27 - 0.37:1 |
| Digital Zoom Factor: | 1.35x |
| Resolution: | WXGA |
| Native Aspect Ratio: | 16:10 |
| Colour Support: | 1.07 billion colours |
| Max Sync Rate (V x H): | 120 Hz |
| Bulb type: | Laser |
| Bulb life cycle: | Up to 20000 hour(s) - high power ¦ Up to 30000 hour(s) - economic mode |
| Features: | Blackboard Mode, EPSON Quick Corner, EPSON 3LCD technology, Crestron RoomView, AMX Device Discovery, Direct Power On, Direct Power Off, Dynamic Mode, Digital Zoom, auto power on, Crestron Integrated Partner, document camera compatible, Presentation Mode, Extron IPLink certified, Cinema Mode, RGB liquid crystal shutter |
| Lens | |
| Type: | Ultra short-throw lens |
| Focus Type: | Manual |
| Lens Aperture: | F/1.6 |
| Keystone Correction Direction: | Horizontal, vertical |
| Vertical Keystone Correction: | -3 / +3 |
| Horizontal Keystone Correction: | -3 / +3 |
| Video Input | |
| Video Interfaces: | VGA, HDMI, composite video |
| LAN and Wireless Image Transferring Protocols: | IEEE 802.11b, IEEE 802.11g, wired LAN, IEEE 802.11a, IEEE 802.11n, Miracast, IEEE 802.11ac |
| Speakers | |
| Type: | Integrated |
| Sound Output Mode: | Mono |
| Output Power / Channel: | 16 Watt |
| Speakers: | 1 x mixed channel |
| Expansion / Connectivity | |
| Interfaces: | 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 3 x HDMI input - 19 pin HDMI Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 3 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x microphone input ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) ¦ 2 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x network - RJ-45 ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA |
| Miscellaneous | |
| Included Accessories: | Remote control, battery for remote control |
| Security Features: | Security lock slot (cable lock sold separately), password protection, control panel lock, Wireless LAN Lock, padlock, security cable hole |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | IPv6, IPv4 |
| Environmental Standards | |
| TCO Certified: | TCO Certified Projectors 9 |
| Power | |
| Power Source: | AC |
| Voltage Required: | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational: | 263 Watt |
| Power Consumption Stand by: | 0.5 Watt |
| Software / System Requirements | |
| Software Included: | EasyMP Multi PC Projection, Epson Projector Management Software, Epson Projector Content Manager |
| Dimensions & Weight | |
| Width: | 35.6 cm |
| Depth: | 39.5 cm |
| Height: | 13.3 cm |
| Weight: | 5.9 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years / 12000 hours - carry-in |
| Environmental Parameters | |
| Humidity Range Operating: | 20 - 80% |
| Sound Emission: | 37 dB |
| Sound Emission (Economic Mode): | 27 dB |
The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.
With 4,100 lumens color light output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.
Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimized for each room with one familiar product and at a fixed cost.
Versatile wired and wireless connectivity options, including screen mirroring via Miracast, allow participants to effortlessly share content from their PCs or mobile devices.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes.
With 4,100 lumens color light output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.
Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimized for each room with one familiar product and at a fixed cost.
Versatile wired and wireless connectivity options, including screen mirroring via Miracast, allow participants to effortlessly share content from their PCs or mobile devices.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes.
- Scalable HD display for any room - 53-150" UST display for unrestricted viewing (no shadows/reflections)
- Bright and energy efficient laser - 4,100 lm CLO with 3LCD technology for brighter colors at only 205 W
- Effortless connectivity options - auto-on, wired/wireless display with USB 2 A output for smart sticks
