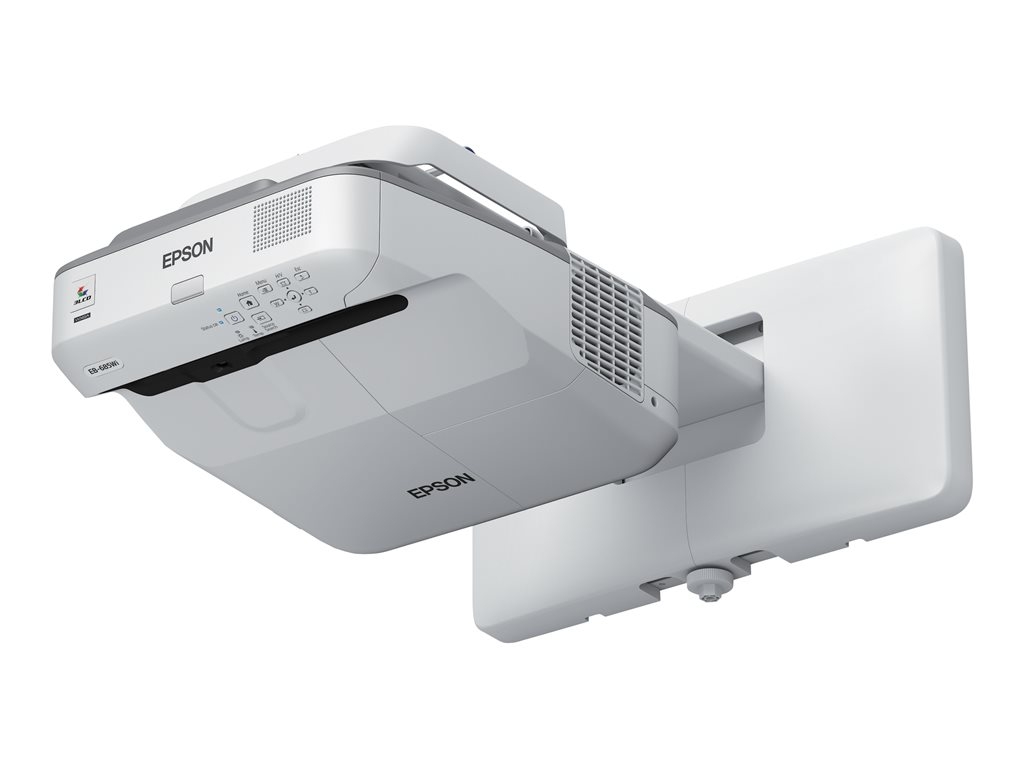

Epson EB-685Wi - 3LCD projector - LAN - grey, white
SKU V11H741040
Product Description: | Epson EB-685Wi - 3LCD projector - LAN - grey, white |
Device Type: | 3LCD projector - 720p |
Colour: | Grey, white |
Built-in Devices: | Speaker |
Brightness (White): | 3500 lumens |
Brightness (Colour): | 3500 lumens |
Contrast Ratio: | 300:1 / 14000:1 (dynamic) |
- Specifications
- Description
General | |
Device Type: | 3LCD projector - 720p |
Built-in Devices: | Speaker |
Networking: | Ethernet |
Enclosure Colour: | Grey, white |
Projector | |
Brightness (White): | 3500 lumens |
Brightness (Colour): | 3500 lumens |
Brightness (Reduced): | 2900 lumens |
Contrast Ratio: | 300:1 / 14000:1 (dynamic) |
Image Size: | 152 cm - 254 cm |
Projection Distance: | 0.4 m - 0.6 m |
Throw Ratio: | 0.28:1 |
Digital Zoom Factor: | 1.35x |
Resolution: | WXGA - WXGA (1280 x 800) |
Native Aspect Ratio: | 16:10 |
Colour Support: | 1.07 billion colours |
Bulb type: | 250 Watt |
Bulb life cycle: | Up to 5000 hour(s) - normal mode ¦ Up to 10000 hour(s) - economic mode |
Features: | sRGB colour profile, Blackboard Mode, EPSON 3LCD technology, Whiteboard Mode, Split Screen, Automatic Brightness Adjustment, Dynamic Lamp Control, Dynamic Mode, Theater Mode |
Lens | |
Focus Type: | Manual |
Lens Aperture: | F/1.6 |
Keystone Correction Direction: | Horizontal, vertical |
Vertical Keystone Correction: | -3 / +3 |
Horizontal Keystone Correction: | -3 / +3 |
Video Input | |
Analogue video Signal: | RGB, composite video |
Video Interfaces: | VGA, HDMI, composite video, MHL |
LAN and Wireless Image Transferring Protocols: | Wired LAN |
Speakers | |
Type: | Integrated |
Sound Output Mode: | Mono |
Output Power / Channel: | 16 Watt |
Speakers: | 1 x mixed channel |
Expansion / Connectivity | |
Interfaces: | 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x Mobile High-Definition Link (MHL) / HDMI ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 3 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x microphone ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) ¦ 1 x network - RJ-45 ¦ 1 x VGA input / output - 15 pin HD D-Sub (HD-15) ¦ 1 x Sync in ¦ 1 x Sync out |
Miscellaneous | |
Included Accessories: | Wall mounting kit, pen tray, wireless remote control, interactive pens |
Cables Included: | 1 x USB cable |
Mounting Kit: | Included |
Security Features: | Security lock slot (cable lock sold separately), password protection |
Power | |
Power Source: | AC |
Voltage Required: | AC 230V (50 - 60 Hz) |
Power Consumption Operational: | 354 Watt |
Power Consumption Stand by: | 0.39 Watt |
Software / System Requirements | |
Software Included: | Epson Easy Interactive Tools, EasyMP Monitor, EasyMP Multi PC Projection |
Dimensions & Weight | |
Width: | 36.7 cm |
Depth: | 40 cm |
Height: | 14.9 cm |
Weight: | 5.9 kg |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 5 years - carry-in |
Environmental Parameters | |
Min Operating Temperature: | 5 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 20 - 80% |
Sound Emission: | 35 dBA |
Sound Emission (Economic Mode): | 30 dBA |
The Epson EB-685Wi is an advanced 3LCD projector designed to deliver high-definition visuals and interactive presentations. With a brightness of 3500 lumens and a color support of 1.07 billion colors, it produces vibrant and clear images that can captivate any audience. The projector offers a dynamic contrast ratio of 14,000:1, ensuring rich, detailed visuals across a wide spectrum of lighting conditions.
Its extensive connectivity options, including HDMI, VGA, composite video, and USB 2.0, make it highly versatile and compatible with a broad range of devices. The EB-685Wi is not just powerful but also economical, with a lamp life of up to 10,000 hours in economic mode, reducing maintenance costs over its lifespan. Equipped with advanced features such as automatic brightness adjustment, Blackboard Mode, and Whiteboard Mode, it is an ideal solution for educational settings, corporate environments, and anywhere in between. The inclusion of EPSON 3LCD technology further enhances its performance, delivering consistent, true-to-life images that are essential for effective presentations.
Its extensive connectivity options, including HDMI, VGA, composite video, and USB 2.0, make it highly versatile and compatible with a broad range of devices. The EB-685Wi is not just powerful but also economical, with a lamp life of up to 10,000 hours in economic mode, reducing maintenance costs over its lifespan. Equipped with advanced features such as automatic brightness adjustment, Blackboard Mode, and Whiteboard Mode, it is an ideal solution for educational settings, corporate environments, and anywhere in between. The inclusion of EPSON 3LCD technology further enhances its performance, delivering consistent, true-to-life images that are essential for effective presentations.
- UST interactive projector
- WXGA resolution
- 3,500 lumens white and color light output
- Touch based interactivity
- Document camera control
- Seamless interactive
- 3x HDMI
