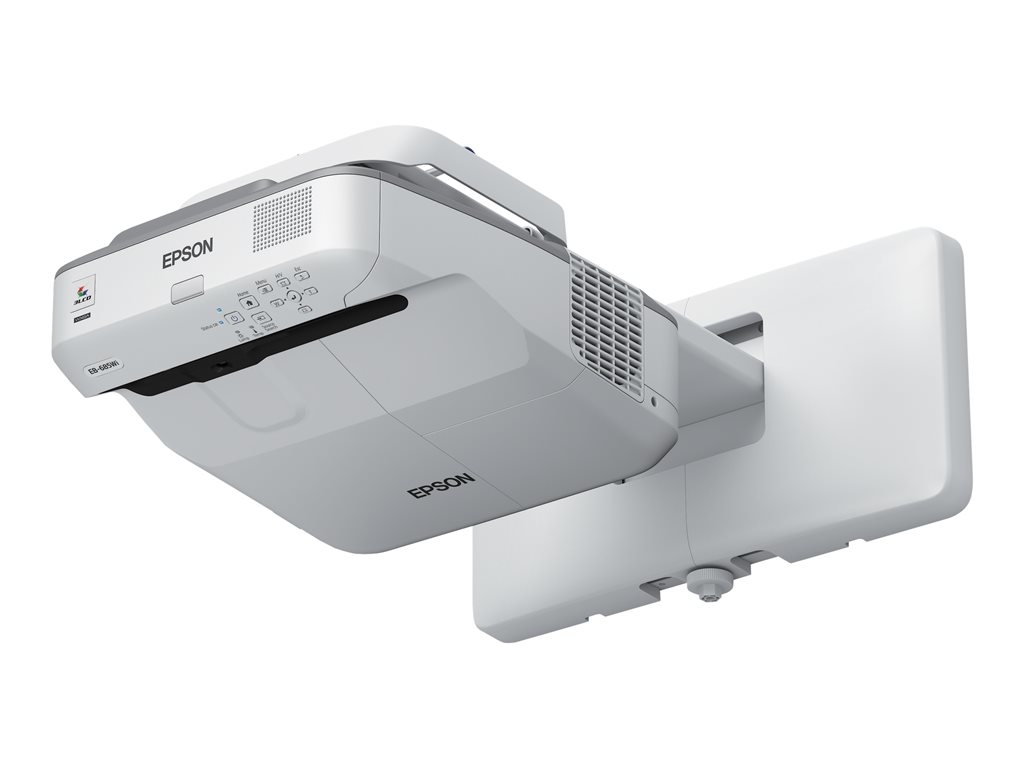

Printers & POSEpson EB-685W - 3LCD projector - LAN - grey, white
SKU V11H744040
| Product Description: | Epson EB-685W - 3LCD projector - LAN - grey, white |
| Device Type: | 3LCD projector - 720p |
| Colour: | Grey, white |
| Built-in Devices: | Speaker |
| Brightness (White): | 3500 lumens |
| Brightness (Colour): | 3500 lumens |
| Contrast Ratio: | 300:1 / 14000:1 (dynamic) |
- Specifications
- Description
| General | |
| Device Type: | 3LCD projector - 720p |
| Built-in Devices: | Speaker |
| Networking: | Ethernet |
| Enclosure Colour: | Grey, white |
| Projector | |
| Brightness (White): | 3500 lumens |
| Brightness (Colour): | 3500 lumens |
| Brightness (Reduced): | 2900 lumens |
| Contrast Ratio: | 300:1 / 14000:1 (dynamic) |
| Image Size: | 152 cm - 254 cm |
| Projection Distance: | 0.4 m - 0.6 m |
| Throw Ratio: | 0.28:1 |
| Digital Zoom Factor: | 1.35x |
| Resolution: | WXGA - WXGA (1280 x 800) |
| Native Aspect Ratio: | 16:10 |
| Colour Support: | 1.07 billion colours |
| Bulb type: | 250 Watt |
| Features: | sRGB colour profile, Blackboard Mode, EPSON 3LCD technology, Whiteboard Mode, Automatic Brightness Adjustment, Dynamic Lamp Control, Dynamic Mode, Theater Mode |
| Lens | |
| Focus Type: | Manual |
| Lens Aperture: | F/1.6 |
| Keystone Correction Direction: | Horizontal, vertical |
| Vertical Keystone Correction: | -3 / +3 |
| Horizontal Keystone Correction: | -3 / +3 |
| Video Input | |
| Analogue video Signal: | RGB, composite video |
| Video Interfaces: | VGA, HDMI, composite video, MHL |
| LAN and Wireless Image Transferring Protocols: | Wired LAN |
| Speakers | |
| Type: | Integrated |
| Sound Output Mode: | Mono |
| Output Power / Channel: | 16 Watt |
| Speakers: | 1 x mixed channel |
| Expansion / Connectivity | |
| Interfaces: | 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x Mobile High-Definition Link (MHL) / HDMI ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 3 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x microphone ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) ¦ 1 x network - RJ-45 ¦ 1 x VGA input / output - 15 pin HD D-Sub (HD-15) |
| Miscellaneous | |
| Included Accessories: | Wireless remote control |
| Cables Included: | 1 x USB cable |
| Mounting Kit: | Included |
| Security Features: | Security lock slot (cable lock sold separately), password protection |
| Power | |
| Power Source: | AC |
| Voltage Required: | AC 230V (50 - 60 Hz) |
| Power Consumption Operational: | 354 Watt |
| Power Consumption Stand by: | 0.39 Watt |
| Software / System Requirements | |
| Software Included: | EasyMP Network Projection, EasyMP Monitor, EasyMP Multi PC Projection |
| Dimensions & Weight | |
| Width: | 36.7 cm |
| Depth: | 40 cm |
| Height: | 14.9 cm |
| Weight: | 5.7 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years - carry-in |
| Environmental Parameters | |
| Min Operating Temperature: | 5 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 20 - 80% |
| Sound Emission: | 35 dBA |
| Sound Emission (Economic Mode): | 30 dBA |
The EB-685W's ultra-short-throw design allows you to present large images from a very short distance with minimized shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.
- Outstanding quality HD-ready WXGA resolution with Epson 3LCD technology
- Reliable improved reliability and a longer lamp life
- Long lamp life in Eco mode
The technical details come from 3rd party. edgemo is not responsible for any errors.
