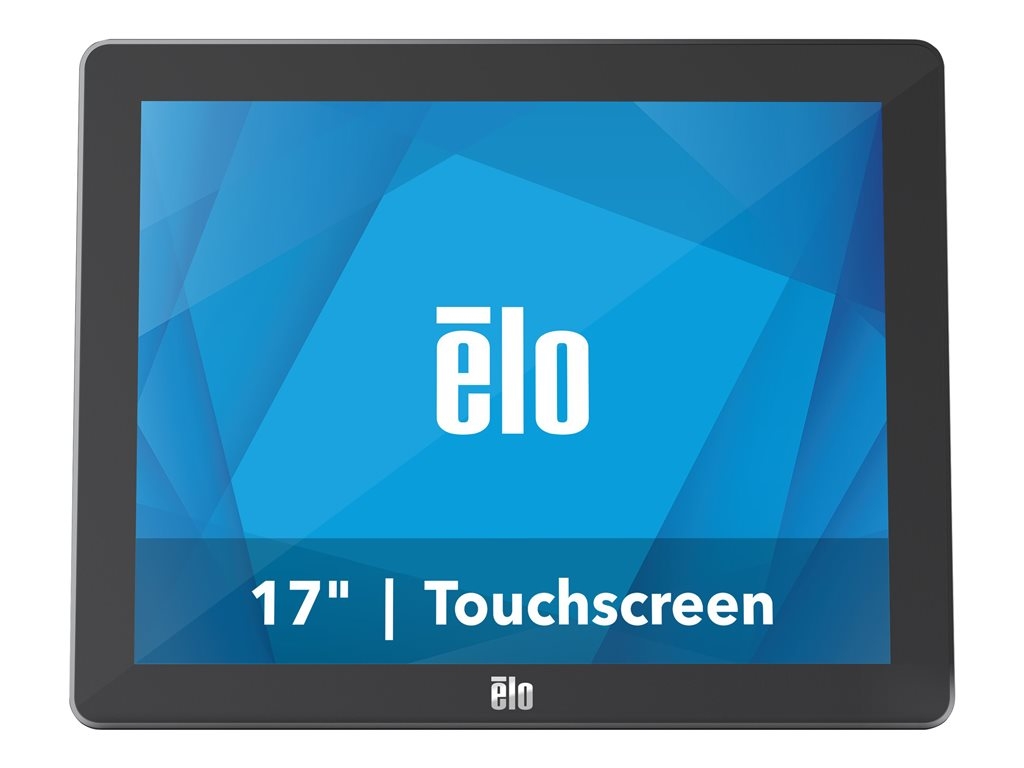

EloPOS System - with Wall Mount & I/O Hub - all-in-one - Core i3 8100T 3.1 GHz - 4 GB - SSD 128 GB - LED 17"

SKU E484291
Product Description:EloPOS System - with Wall Mount & I/O Hub - all-in-one - Core i3 8100T 3.1 GHz - 4 GB - SSD 128 GB - LED 17"
Type:Point of sale terminal - all-in-one
Processor:1 x Intel Core i3 (8th Gen) 8100T / 3.1 GHz (Quad-Core)
Processor Socket:LGA1151 Socket
Processor Main Features:Intel Smart Cache
Cache Memory:6 MB
Cache Per Processor:6 MB
02-01-2026
  • Specifications
  • Description
General
Type:Point of sale terminal
Product Form Factor:All-in-one
Embedded Security:Trusted Platform Module (TPM 2.0) Security Chip
Colour:Black
Processor / Chipset
CPU:Intel Core i3 (8th Gen) 8100T
Clock Speed:3.1 GHz
Number of Cores:Quad-Core
CPU Qty:1
Max CPU Qty:1
Processor Main Features:Intel Smart Cache
CPU Socket:LGA1151 Socket
Chipset Type:Intel H310
Cache Memory
Installed Size:6 MB
Cache Per Processor:6 MB
RAM
Installed Size:4 GB / 32 GB (max)
Technology:DDR4 SDRAM - non-ECC
Effective Memory Speed:2400 MHz
Rated Memory Speed:2666 MHz
Form Factor:SO-DIMM 260-pin
Slots:2 (Total) / 1 (empty)
Features:Unbuffered
Configuration Features:1 x 4 GB
Hard Drive
Type:SSD - M.2
Capacity:1 x 128 GB
Interface Type:SATA 6Gb/s
SSD Endurance:80 TB
Storage Controller
Type:1 x SATA
Controller Interface Type:SATA 6Gb/s
Optical Storage
Type:No optical drive
Monitor
Monitor Type:LED
Touchscreen:Yes (10-point multi-touch)
Diagonal Size:17"
Native Resolution:1280 x 1024 (SXGA)
Widescreen Display:No
Image Aspect Ratio:5:4
Horizontal Viewing Angle:170
Vertical Viewing Angle:160
Response Time:5 ms
Image Brightness:250 cd/m²
Image Contrast Ratio:1000:1
Monitor Features:Anti-glare, Zero-Bezel Design, TouchPro Pro Projected Capacitive (PCAP) technology
Graphics Controller
Graphics Processor:Intel UHD Graphics 630
Audio Output
Sound Output Mode:Stereo
Speakers Included:2 x right / left channel
Networking
Wireless LAN Supported:Yes
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Expansion / Connectivity
Slots:1 (total) / 0 (free) x M.2 Card
Interfaces:3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer (12V/24 V) ¦ 1 x headphones/microphone ¦ 2 x serial - RJ-45 ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging)
Miscellaneous
Included Accessories:Cable cover locking screw
Cables Included:RJ-45 to DB-9 cable
VESA Mounting Interface:75 mm
Compliant Standards:UL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, RCM, Mexico NOM
Power
Device Type:Power adapter
Installed Qty:1
Voltage Required:AC 120/230 V (50/60 Hz)
Power Provided:180 Watt
Power Consumption Operational:63 Watt
Operating System / Software
OS Provided:Windows 10 IoT Enterprise LTSC 64-bit Edition
Manufacturer Warranty
Service & Support:Limited warranty - 3 years
Dimensions & Weight
Weight:4.8 kg
Dimensions & Weight (Shipping)
Shipping Width:47.6 cm
Shipping Depth:19.7 cm
Shipping Height:40 cm
Shipping Weight:6.8 kg
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:35 °C
Humidity Range Operating:20 - 80% (non-condensing)
vis mere
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 17" 5:4 10-touch display, choice of Intel's 8th generation processors and an integrated expansion hub to connect the accessories you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use.




The technical details come from 3rd party. edgemo is not responsible for any errors.
