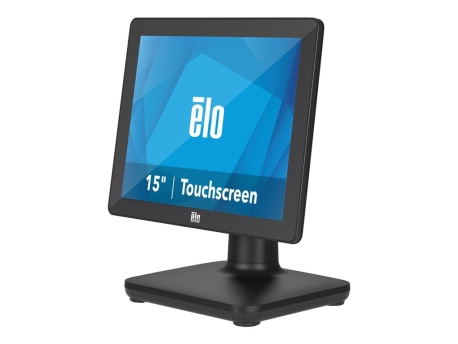

Printers & POSEloPOS System - with I/O Hub Stand - all-in-one - Core i3 8100T 3.1 GHz - 4 GB - SSD 128 GB - LED 15"
SKU E931706
| Product Description: | EloPOS System - with I/O Hub Stand - all-in-one - Core i3 8100T 3.1 GHz - 4 GB - SSD 128 GB - LED 15" |
| Type: | Point of sale terminal - all-in-one |
| Processor: | 1 x Intel Core i3 (8th Gen) 8100T / 3.1 GHz (Quad-Core) |
| Processor Socket: | LGA1151 Socket |
| Processor Main Features: | Intel Smart Cache |
| Cache Memory: | 6 MB |
| Cache Per Processor: | 6 MB |
- Specifications
- Description
| General | |
| Type: | Point of sale terminal |
| Product Form Factor: | All-in-one |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour: | Black |
| Processor / Chipset | |
| CPU: | Intel Core i3 (8th Gen) 8100T |
| Clock Speed: | 3.1 GHz |
| Number of Cores: | Quad-Core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| Processor Main Features: | Intel Smart Cache |
| CPU Socket: | LGA1151 Socket |
| Chipset Type: | Intel H310 |
| Cache Memory | |
| Installed Size: | 6 MB |
| Cache Per Processor: | 6 MB |
| RAM | |
| Installed Size: | 4 GB (installed) / 32 GB (max) |
| Technology: | DDR4 SDRAM - non-ECC |
| Effective Memory Speed: | 2400 MHz |
| Rated Memory Speed: | 2666 MHz |
| Form Factor: | SO-DIMM 260-pin |
| Slots: | 2 (Total) / 1 (empty) |
| Features: | Unbuffered |
| Configuration Features: | 1 x 4 GB |
| Hard Drive | |
| Type: | SSD - 2.5" |
| Capacity: | 1 x 128 GB |
| Interface Type: | SATA 6Gb/s |
| SSD Endurance: | 72 TB |
| Storage Controller | |
| Type: | 1 x SATA |
| Controller Interface Type: | SATA 6Gb/s |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | LED |
| Touchscreen: | Yes (10-point multi-touch) |
| Diagonal Size: | 15" |
| Native Resolution: | 1024 x 768 (XGA) |
| Widescreen Display: | No |
| Image Aspect Ratio: | 4:3 |
| Horizontal Viewing Angle: | 160 |
| Vertical Viewing Angle: | 160 |
| Response Time: | 23 ms |
| Image Brightness: | 340 cd/m² |
| Image Contrast Ratio: | 800:1 |
| Monitor Features: | Anti-glare, Zero-Bezel Design, TouchPro Pro Projected Capacitive (PCAP) technology |
| Graphics Controller | |
| Graphics Processor: | Intel UHD Graphics 630 |
| Audio Output | |
| Sound Output Mode: | Stereo |
| Speakers Included: | 2 x right / left channel |
| Networking | |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Expansion / Connectivity | |
| Bays: | 1 (total) / 0 (free) x internal 2.5" x 1/8H |
| Slots: | 1 (total) / 1 (free) x M.2 Card |
| Interfaces: | 3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer ¦ 1 x headphones ¦ 2 x serial - RJ-45 ¦ 1 x USB-C (27 Watt charging) |
| Miscellaneous | |
| Included Accessories: | Cable cover locking screw |
| Cables Included: | RJ-45 to DB-9 cable |
| VESA Mounting Interface: | 75 mm |
| Compliant Standards: | UL, TUV, VCCI, cUL, NOM, CB, CCC, FCC, S Mark, RCM, CE/EMC |
| Power | |
| Device Type: | Power adapter |
| Installed Qty: | 1 |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Provided: | 180 Watt |
| Power Consumption Operational: | 71 Watt |
| Operating System / Software | |
| OS Provided: | No operating system |
| Sustainability Information | |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 7.1 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Dimensions & Weight Details: | 35.97 cm - 22.13 cm - 39.04 cm - 5.3 kg - with stand |
| Width: | 35.97 cm |
| Depth: | 22.13 cm |
| Height: | 39.04 cm |
| Weight: | 5.3 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 45.5 cm |
| Shipping Depth: | 37.2 cm |
| Shipping Height: | 50.9 cm |
| Shipping Weight: | 8.2 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15" 4:3 10-touch display, choice of Intel's 8th generation processors and an integrated expansion hub to connect the accessories you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use.
The technical details come from 3rd party. edgemo is not responsible for any errors.
