Printers & POSEloPOS System i5 - with Wall Mount & I/O Hub - all-in-one - Core i5 8500T 2.1 GHz - vPro - 16 GB - SSD 256 GB - LED 21.5"
SKU E938113
| Product Description: | EloPOS System i5 - with Wall Mount & I/O Hub - all-in-one - Core i5 8500T 2.1 GHz - vPro - 16 GB - SSD 256 GB - LED 21.5" |
| Type: | Point of sale terminal - all-in-one |
| Platform Technology: | Intel vPro Platform |
| Processor: | 1 x Intel Core i5 (8th Gen) 8500T / 2.1 GHz (, up to 3.5 GHz, (6-core) |
| Processor Socket: | LGA1151 Socket |
| Processor Main Features: | Intel Turbo Boost Technology 2, Intel Smart Cache |
| Cache Memory: | 9 MB |
- Specifications
- Description
| General | |
| Platform Technology: | Intel vPro Platform |
| Type: | Point of sale terminal |
| Product Form Factor: | All-in-one |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour: | Black |
| Processor / Chipset | |
| CPU: | Intel Core i5 (8th Gen) 8500T |
| Clock Speed: | 2.1 GHz |
| Max Turbo Speed: | 3.5 GHz |
| Number of Cores: | 6-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| Processor Main Features: | Intel Turbo Boost Technology 2, Intel Smart Cache |
| CPU Socket: | LGA1151 Socket |
| Chipset Type: | Intel Q370 |
| Cache Memory | |
| Installed Size: | 9 MB |
| Cache Per Processor: | 9 MB |
| RAM | |
| Installed Size: | 16 GB (installed) / 32 GB (max) |
| Technology: | DDR4 SDRAM - non-ECC |
| Effective Memory Speed: | 2666 MHz |
| Rated Memory Speed: | 2666 MHz |
| Form Factor: | SO-DIMM 260-pin |
| Slots: | 2 (Total) |
| Features: | Unbuffered |
| Hard Drive | |
| Type: | SSD - M.2 |
| Capacity: | 1 x 256 GB |
| Interface Type: | PCI Express |
| Features: | NVM Express (NVMe) |
| Storage Controller | |
| Type: | 1 x SATA |
| Controller Interface Type: | SATA 6Gb/s |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | LED |
| Touchscreen: | Yes (10-point multi-touch) |
| Diagonal Size: | 21.5" |
| Native Resolution: | 1920 x 1080 (Full HD) |
| Widescreen Display: | Yes |
| Image Aspect Ratio: | 16:9 |
| Horizontal Viewing Angle: | 178 |
| Vertical Viewing Angle: | 178 |
| Response Time: | 14 ms |
| Image Brightness: | 212.5 cd/m² |
| Image Contrast Ratio: | 1000:1 |
| Monitor Features: | Anti-glare, Zero-Bezel Design, TouchPro Pro Projected Capacitive (PCAP) technology |
| Graphics Controller | |
| Graphics Processor: | Intel UHD Graphics 630 |
| Audio Output | |
| Sound Output Mode: | Stereo |
| Speakers Included: | 2 x right / left channel |
| Networking | |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Features: | Intel Active Management Technology (AMT) 11 |
| Expansion / Connectivity | |
| Interfaces: | 3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer ¦ 1 x headphones ¦ 2 x serial - RJ-45 ¦ 1 x USB-C (27 Watt charging) |
| Miscellaneous | |
| Included Accessories: | Cable cover locking screw |
| Cables Included: | RJ-45 to DB-9 cable |
| Compliant Standards: | UL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, RCM, Mexico NOM |
| Power | |
| Device Type: | Power adapter |
| Installed Qty: | 1 |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Provided: | 180 Watt |
| Power Consumption Operational: | 81 Watt |
| Operating System / Software | |
| OS Provided: | Windows 10 IoT Enterprise LTSB 64-bit Edition |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 41.64 cm |
| Depth: | 8.47 cm |
| Height: | 52.59 cm |
| Weight: | 6 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 64.4 cm |
| Shipping Depth: | 22.6 cm |
| Shipping Height: | 45 cm |
| Shipping Weight: | 8.4 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 20 - 80% |

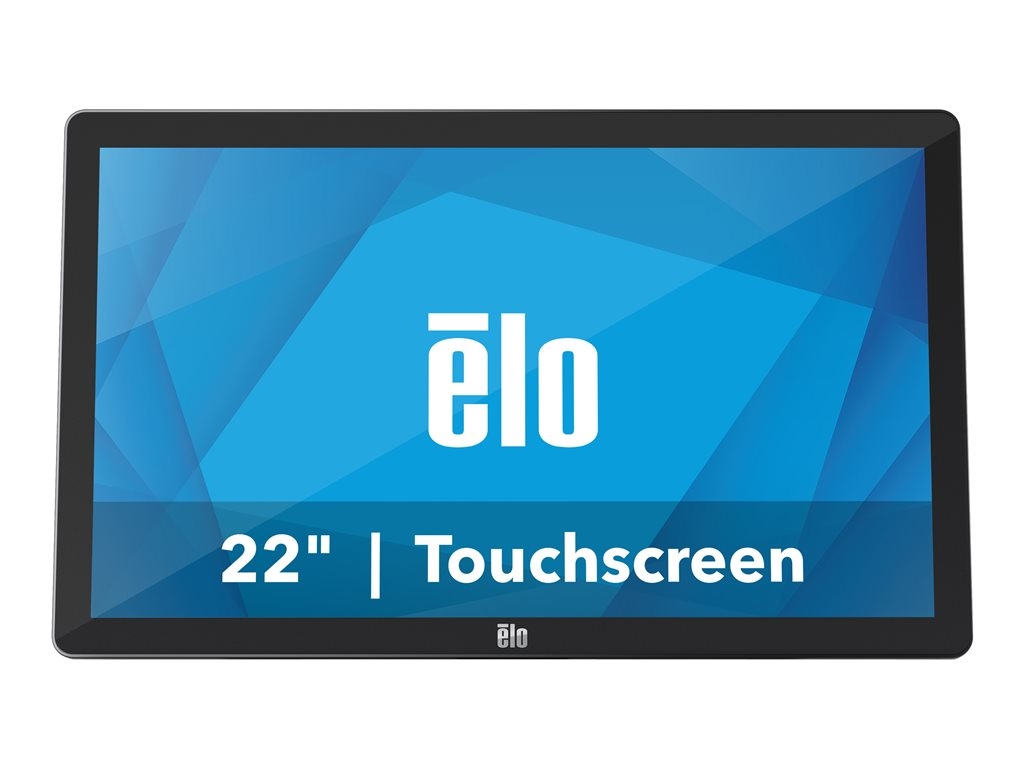

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a Full HD 22" 10-touch display, choice of Intel's 8th generation processors and an integrated expansion hub to connect the accessories you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use.
- Connections
- Configure your solution
- Add a customer-facing display with ease
- Elo Edge Connect lets you do more
The technical details come from 3rd party. edgemo is not responsible for any errors.
