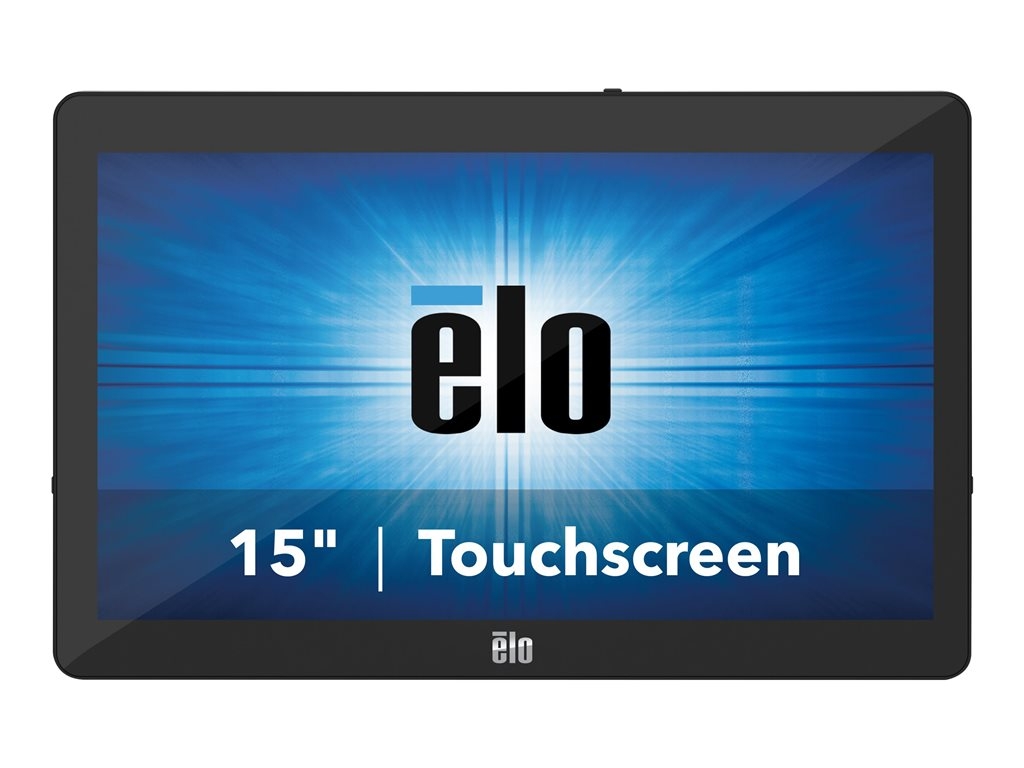

EloPOS System i3 - all-in-one - Core i3 8100T 3.1 GHz - 4 GB - SSD 128 GB - LED 15.6"

SKU E441575

Product Description:	EloPOS System i3 - all-in-one - Core i3 8100T 3.1 GHz - 4 GB - SSD 128 GB - LED 15.6"
Type:	Point of sale terminal - all-in-one
Processor:	1 x Intel Core i3 (8th Gen) 8100T / 3.1 GHz (Quad-Core)
Processor Socket:	LGA1151 Socket
Processor Main Features:	Intel Smart Cache
Cache Memory:	6 MB
Cache Per Processor:	6 MB

Not in stock

Specifications
Description
Accessories

General
Type:	Point of sale terminal
Product Form Factor:	All-in-one
Embedded Security:	Trusted Platform Module (TPM 2.0) Security Chip
Colour:	Black

Processor / Chipset
CPU:	Intel Core i3 (8th Gen) 8100T
Clock Speed:	3.1 GHz
Number of Cores:	Quad-Core
CPU Qty:	1
Max CPU Qty:	1
Processor Main Features:	Intel Smart Cache
CPU Socket:	LGA1151 Socket
Chipset Type:	Intel H310

Cache Memory
Installed Size:	6 MB
Cache Per Processor:	6 MB

RAM
Installed Size:	4 GB / 32 GB (max)
Technology:	DDR4 SDRAM - non-ECC
Effective Memory Speed:	2400 MHz
Rated Memory Speed:	2666 MHz
Form Factor:	SO-DIMM 260-pin
Slots:	2 (Total) / 1 (empty)
Features:	Unbuffered
Configuration Features:	1 x 4 GB

Hard Drive
Type:	SSD - 2.5"
Capacity:	1 x 128 GB
Interface Type:	SATA 6Gb/s
SSD Endurance:	72 TB

Storage Controller
Type:	1 x SATA
Controller Interface Type:	SATA 6Gb/s

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	LED
Touchscreen:	Yes (10-point multi-touch)
Diagonal Size:	15.6"
Native Resolution:	1366 x 768 (HD)
Widescreen Display:	Yes
Image Aspect Ratio:	16:9
Horizontal Viewing Angle:	90
Vertical Viewing Angle:	50
Response Time:	10 ms
Image Brightness:	220 cd/m²
Image Contrast Ratio:	400:1
Monitor Features:	Anti-glare, TouchPro technology

Graphics Controller
Graphics Processor:	Intel UHD Graphics 630

Audio Output
Sound Output Mode:	Stereo
Speakers Included:	2 x right / left channel

Networking
Wireless LAN Supported:	Yes
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0

Expansion / Connectivity
Bays:	1 (total) / 0 (free) x internal 2.5" x 1/8H
Interfaces:	3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer ¦ 1 x headphones ¦ 2 x serial - RJ-45 ¦ 1 x USB-C (27 Watt charging)

Miscellaneous
Cables Included:	RJ-45 to DB-9 cable ¦ Power cable (2 pcs.)
VESA Mounting Interface:	75 mm
Compliant Standards:	UL, TUV, VCCI, cUL, NOM, CB, CCC, FCC, S Mark, RCM, CE/EMC

Power
Device Type:	Power adapter
Installed Qty:	1
Voltage Required:	AC 120/230 V (50/60 Hz)
Power Provided:	180 Watt
Power Consumption Operational:	65 Watt

Operating System / Software
OS Provided:	No operating system

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

Dimensions & Weight
Dimensions & Weight Details:	38.62 cm - 7.33 cm - 24.89 cm - 2.9 kg - without stand
Width:	38.62 cm
Depth:	7.33 cm
Height:	24.89 cm
Weight:	2.9 kg

Dimensions & Weight (Shipping)
Shipping Width:	46.2 cm
Shipping Depth:	21.6 cm
Shipping Height:	34.6 cm
Shipping Weight:	4.9 kg

Environmental Parameters
Min Operating Temperature:	0 °C
Max Operating Temperature:	35 °C
Humidity Range Operating:	20 - 80% (non-condensing)

vis mere

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15.6" 10-touch display, choice of Intel's 8th generation processors and an integrated expansion hub to connect the accessories you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use.

Connections
Configure your solution
Add a customer-facing display with ease
Elo Edge Connect lets you do more

The technical details come from 3rd party. edgemo is not responsible for any errors.
