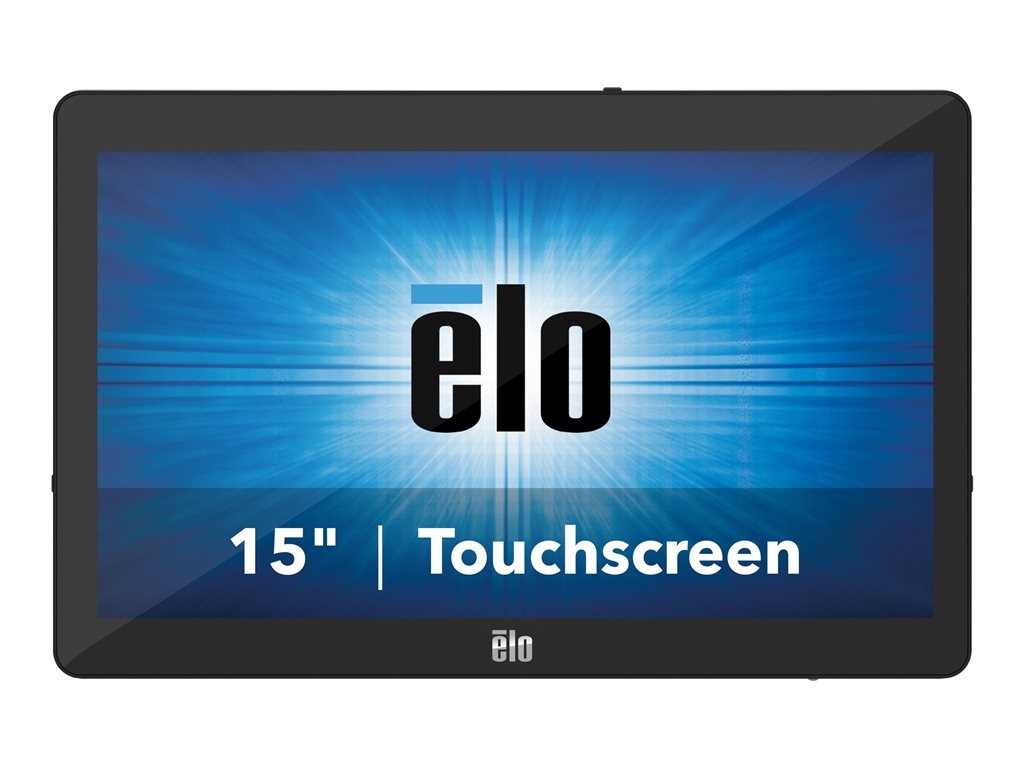

EloPOS System i2 - all-in-one - Celeron J4105 1.5 GHz - 4 GB - SSD 128 GB - LED 15.6"

SKU E440808
Product Description:EloPOS System i2 - all-in-one - Celeron J4105 1.5 GHz - 4 GB - SSD 128 GB - LED 15.6"
Type:Point of sale terminal - all-in-one
Processor:1 x Intel Celeron J4105 / 1.5 GHz (2.5 GHz) (Quad-Core)
Cache Memory:4 MB
Cache Per Processor:4 MB
RAM:4 GB (installed) / 8 GB (max) - DDR4 SDRAM - non-ECC
Storage Controller:SATA (SATA 6Gb/s)
Not in stock
  • Specifications
  • Description
General
Type:Point of sale terminal
Product Form Factor:All-in-one
Embedded Security:Trusted Platform Module (TPM 2.0) Security Chip
Colour:Black
Processor / Chipset
CPU:Intel Celeron J4105
Clock Speed:1.5 GHz
Max Turbo Speed:2.5 GHz
Number of Cores:Quad-Core
CPU Qty:1
Max CPU Qty:1
Cache Memory
Installed Size:4 MB
Cache Per Processor:4 MB
RAM
Installed Size:4 GB / 8 GB (max)
Technology:DDR4 SDRAM - non-ECC
Effective Memory Speed:2400 MHz
Rated Memory Speed:2666 MHz
Form Factor:SO-DIMM 260-pin
Slots:2 (Total) / 1 (empty)
Features:Unbuffered
Configuration Features:1 x 4 GB
Hard Drive
Type:SSD - 2.5"
Capacity:1 x 128 GB
Interface Type:SATA 6Gb/s
SSD Endurance:72 TB
Storage Controller
Type:1 x SATA
Controller Interface Type:SATA 6Gb/s
Optical Storage
Type:No optical drive
Monitor
Monitor Type:LED
Touchscreen:Yes (10-point multi-touch)
Diagonal Size:15.6"
Native Resolution:1366 x 768 (HD)
Widescreen Display:Yes
Image Aspect Ratio:16:9
Horizontal Viewing Angle:90
Vertical Viewing Angle:50
Response Time:10 ms
Image Brightness:220 cd/m²
Image Contrast Ratio:400:1
Monitor Features:Anti-glare, TouchPro technology
Graphics Controller
Graphics Processor:Intel UHD Graphics 600
Audio Output
Sound Output Mode:Stereo
Speakers Included:2 x right / left channel
Networking
Wireless LAN Supported:Yes
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Expansion / Connectivity
Bays:1 (total) / 0 (free) x internal 2.5" x 1/8H
Interfaces:3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer ¦ 1 x headphones ¦ 2 x serial - RJ-45 ¦ 1 x USB-C (27 Watt charging)
Miscellaneous
Cables Included:RJ-45 to DB-9 cable ¦ Power cable (2 pcs.)
VESA Mounting Interface:75 mm
Compliant Standards:UL, TUV, VCCI, cUL, NOM, CB, CCC, FCC, S Mark, RCM, CE/EMC
Power
Device Type:Power adapter
Installed Qty:1
Voltage Required:AC 120/230 V (50/60 Hz)
Power Provided:180 Watt
Power Consumption Operational:24 Watt
Operating System / Software
OS Provided:Windows 10 IoT Enterprise LTSB 64-bit Edition
Manufacturer Warranty
Service & Support:Limited warranty - 3 years
Dimensions & Weight
Dimensions & Weight Details:38.62 cm - 7.33 cm - 24.89 cm - 2.9 kg - without stand
Width:38.62 cm
Depth:7.33 cm
Height:24.89 cm
Weight:2.9 kg
Dimensions & Weight (Shipping)
Shipping Width:46.2 cm
Shipping Depth:21.6 cm
Shipping Height:34.6 cm
Shipping Weight:4.9 kg
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:35 °C
Humidity Range Operating:20 - 80% (non-condensing)
vis mere
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15.6" 10-touch display, choice of Intel's 8th generation processors and an integrated expansion hub to connect the accessories you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use.
  • Connections
  • Configure your solution
  • Add a customer-facing display with ease
  • Elo Edge Connect lets you do more




The technical details come from 3rd party. edgemo is not responsible for any errors.
