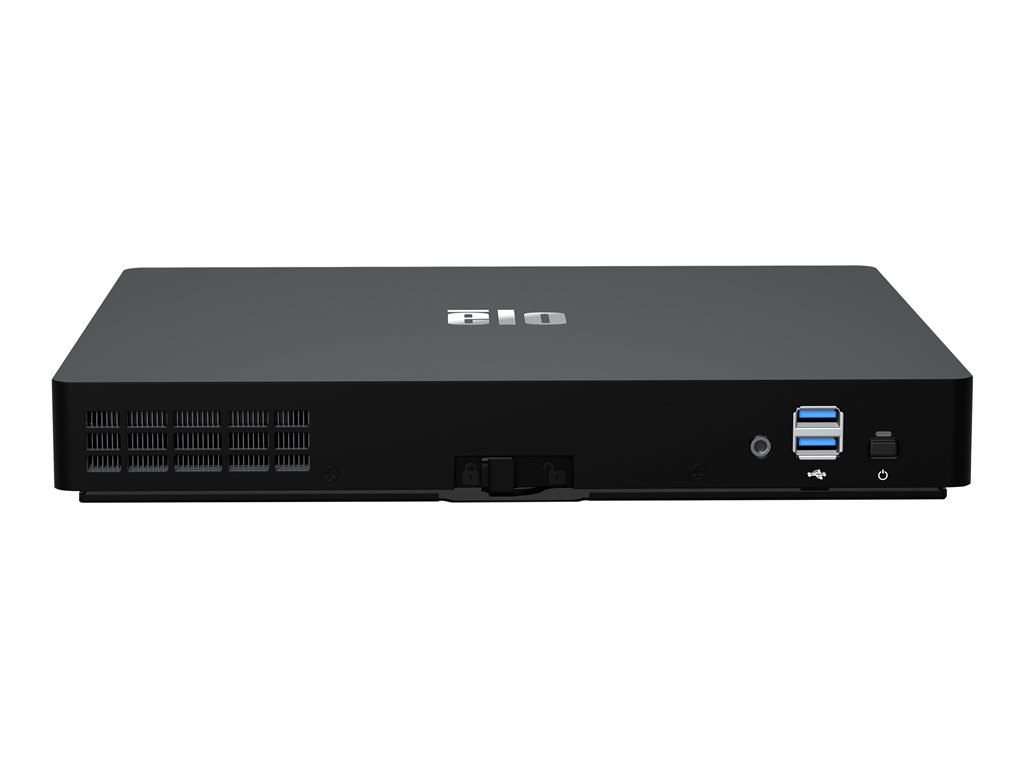

Printers & POSEloPOS Pack EPS00E5 - mini desktop - Core i5 8500T 2.1 GHz - vPro - 8 GB - SSD 128 GB
SKU E924731
| Product Description: | EloPOS Pack EPS00E5 - mini desktop - Core i5 8500T 2.1 GHz - vPro - 8 GB - SSD 128 GB |
| Type: | Personal computer - mini desktop |
| Platform Technology: | Intel vPro Platform |
| Processor: | Intel Core i5 (8th Gen) 8500T / 2.1 GHz (, up to 3.5 GHz, (6-core) |
| Processor Socket: | LGA1151 Socket |
| Processor Main Features: | Intel Turbo Boost Technology 2, Intel Smart Cache |
| Cache Memory: | 9 MB |
- Specifications
- Description
| General | |
| Platform Technology: | Intel vPro Platform |
| Type: | Personal computer |
| Product Form Factor: | Mini desktop |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour: | Black |
| Processor / Chipset | |
| CPU: | Intel Core i5 (8th Gen) 8500T |
| Clock Speed: | 2.1 GHz |
| Max Turbo Speed: | 3.5 GHz |
| Number of Cores: | 6-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| Processor Main Features: | Intel Turbo Boost Technology 2, Intel Smart Cache |
| CPU Socket: | LGA1151 Socket |
| Chipset Type: | Intel Q370 |
| Cache Memory | |
| Installed Size: | 9 MB |
| Cache Per Processor: | 9 MB |
| RAM | |
| Installed Size: | 8 GB (installed) / 64 GB (max) |
| Technology: | DDR4 SDRAM - non-ECC |
| Effective Memory Speed: | 2666 MHz |
| Rated Memory Speed: | 2666 MHz |
| Form Factor: | SO-DIMM 260-pin |
| Slots: | 4 (Total) / 3 (empty) |
| Features: | Unbuffered |
| Configuration Features: | 1 x 8 GB |
| Hard Drive | |
| Type: | SSD - M.2 |
| Capacity: | 1 x 128 GB |
| Interface Type: | SATA 6Gb/s |
| Storage Controller | |
| Type: | 1 x SATA |
| Controller Interface Type: | SATA 6Gb/s |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | Intel UHD Graphics 630 |
| Video Interfaces: | HDMI |
| Networking | |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Features: | Intel Active Management Technology (AMT) 11 |
| Expansion / Connectivity | |
| Interfaces: | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PoweredUSB (24 V) ¦ 5 x PoweredUSB (12 V) ¦ 1 x serial - RJ-50 ¦ 1 x cash drawer (12V/24 V) ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging) ¦ 1 x headphones/microphone ¦ 4 x USB 3.0 (2 front, 2 rear) |
| Miscellaneous | |
| Included Accessories: | 2x wireless aerials |
| Cables Included: | Serial cable ¦ USB-C cable ¦ HDMI cable ¦ USB cable |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | UL, TUV, VCCI, C-Tick, cUL, NOM, CB, CCC, FCC, S Mark, RCM |
| Power | |
| Device Type: | Power adapter |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Power Provided: | 180 Watt |
| Power Consumption Operational: | 48.87 Watt |
| Operating System / Software | |
| OS Provided: | Windows 10 IoT Enterprise LTSC 64-bit Edition |
| Sustainability Information | |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 7.1 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 27.6 cm |
| Depth: | 23.75 cm |
| Height: | 3.7 cm |
| Weight: | 2.6 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 41.4 cm |
| Shipping Depth: | 34.6 cm |
| Shipping Height: | 16.9 cm |
| Shipping Weight: | 5 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
The EloPOS Pack delivers a powerful enterprise-ready compute platform in a sleek, compact form factor. Backed by the security and infrastructure of a Windows-based system and the speed of the Intel Q370 Chipset, the EloPOS Pack provides the power you need to run your business. With versatile connectivity options, plug in anything from Elo’s latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. The system provides flexibility to make upgrades as your business requirements change.
The technical details come from 3rd party. edgemo is not responsible for any errors.
