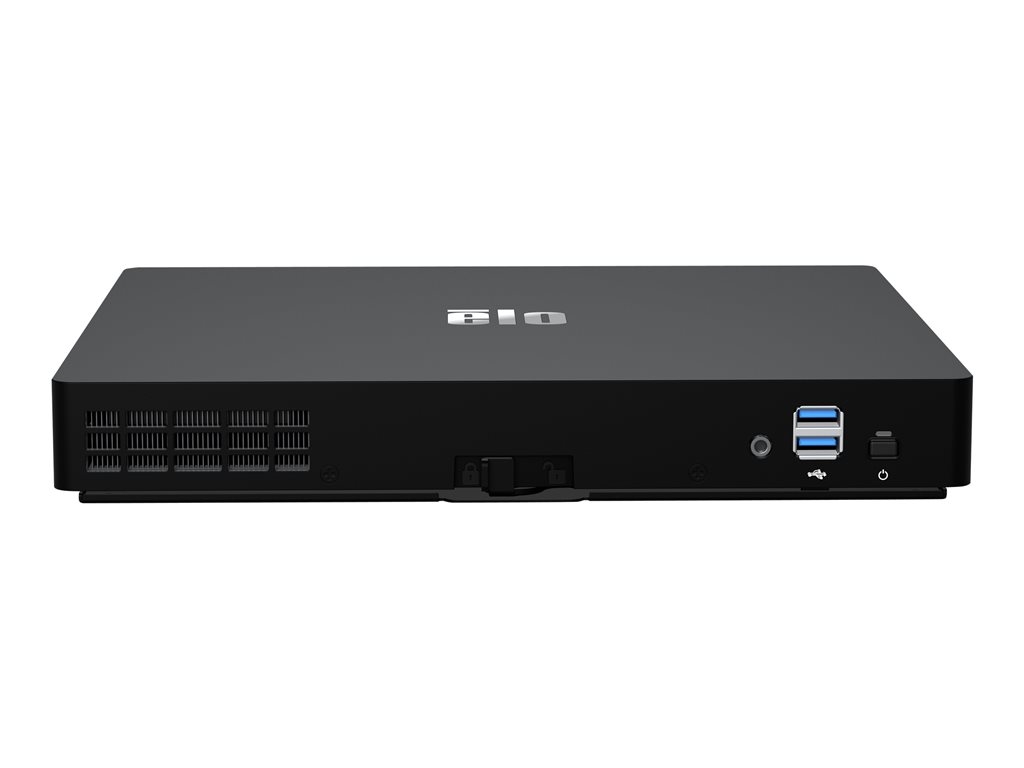

EloPOS Pack EPS00E3 - mini desktop - Core i3 8100T 3.1 GHz - 8 GB - SSD 128 GB

SKU E924535
Product Description:EloPOS Pack EPS00E3 - mini desktop - Core i3 8100T 3.1 GHz - 8 GB - SSD 128 GB
Type:Personal computer - mini desktop
Processor:Intel Core i3 (8th Gen) 8100T / 3.1 GHz (Quad-Core)
Processor Socket:LGA1151 Socket
Processor Main Features:Intel Smart Cache
Cache Memory:6 MB
Cache Per Processor:6 MB
Not in stock
  • Specifications
  • Description
General
Type:Personal computer
Product Form Factor:Mini desktop
Embedded Security:Trusted Platform Module (TPM 2.0) Security Chip
Colour:Black
Processor / Chipset
CPU:Intel Core i3 (8th Gen) 8100T
Clock Speed:3.1 GHz
Number of Cores:Quad-Core
CPU Qty:1
Max CPU Qty:1
Processor Main Features:Intel Smart Cache
CPU Socket:LGA1151 Socket
Chipset Type:Intel Q370
Cache Memory
Installed Size:6 MB
Cache Per Processor:6 MB
RAM
Installed Size:8 GB / 64 GB (max)
Technology:DDR4 SDRAM - non-ECC
Effective Memory Speed:2400 MHz
Rated Memory Speed:2400 MHz
Form Factor:SO-DIMM 260-pin
Slots:4 (Total) / 3 (empty)
Features:Unbuffered
Configuration Features:1 x 8 GB
Hard Drive
Type:SSD - M.2
Capacity:1 x 128 GB
Interface Type:SATA 6Gb/s
Storage Controller
Type:1 x SATA
Controller Interface Type:SATA 6Gb/s
Optical Storage
Type:No optical drive
Monitor
Monitor Type:None.
Graphics Controller
Graphics Processor:Intel UHD Graphics 630
Video Interfaces:HDMI
Networking
Wireless LAN Supported:Yes
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Features:Intel Active Management Technology (AMT) 11
Expansion / Connectivity
Interfaces:1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PoweredUSB (24 V) ¦ 5 x PoweredUSB (12 V) ¦ 1 x serial - RJ-50 ¦ 1 x cash drawer (12V/24 V) ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging) ¦ 1 x headphones/microphone ¦ 4 x USB 3.0 (2 front, 2 rear)
Miscellaneous
Included Accessories:2x wireless aerials
Cables Included:Serial cable ¦ USB-C cable ¦ HDMI cable ¦ USB cable
Theft/Intrusion Protection:Security lock slot (cable lock sold separately)
Security Slot Type:Kensington security slot
Compliant Standards:UL, TUV, VCCI, C-Tick, cUL, NOM, CB, CCC, FCC, S Mark, RCM
Power
Device Type:Power adapter
Voltage Required:AC 120/230 V (50 - 60 Hz)
Power Provided:180 Watt
Power Consumption Operational:48.87 Watt
Operating System / Software
OS Provided:Windows 10 IoT Enterprise LTSC 64-bit Edition
Environmental Standards
ENERGY STAR Certified:Yes
ENERGY STAR Version:7.1
Manufacturer Warranty
Service & Support:Limited warranty - 3 years
Dimensions & Weight
Width:27.6 cm
Depth:23.75 cm
Height:3.7 cm
Weight:2.6 kg
Dimensions & Weight (Shipping)
Shipping Width:41.4 cm
Shipping Depth:34.6 cm
Shipping Height:16.9 cm
Shipping Weight:5 kg
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90% (non-condensing)
vis mere
The EloPOS Pack delivers a powerful enterprise-ready compute platform in a sleek, compact form factor. Backed by the security and infrastructure of a Windows-based system and the speed of the Intel Q370 Chipset, the EloPOS Pack provides the power you need to run your business. With versatile connectivity options, plug in anything from Elo’s latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. The system provides flexibility to make upgrades as your business requirements change.
