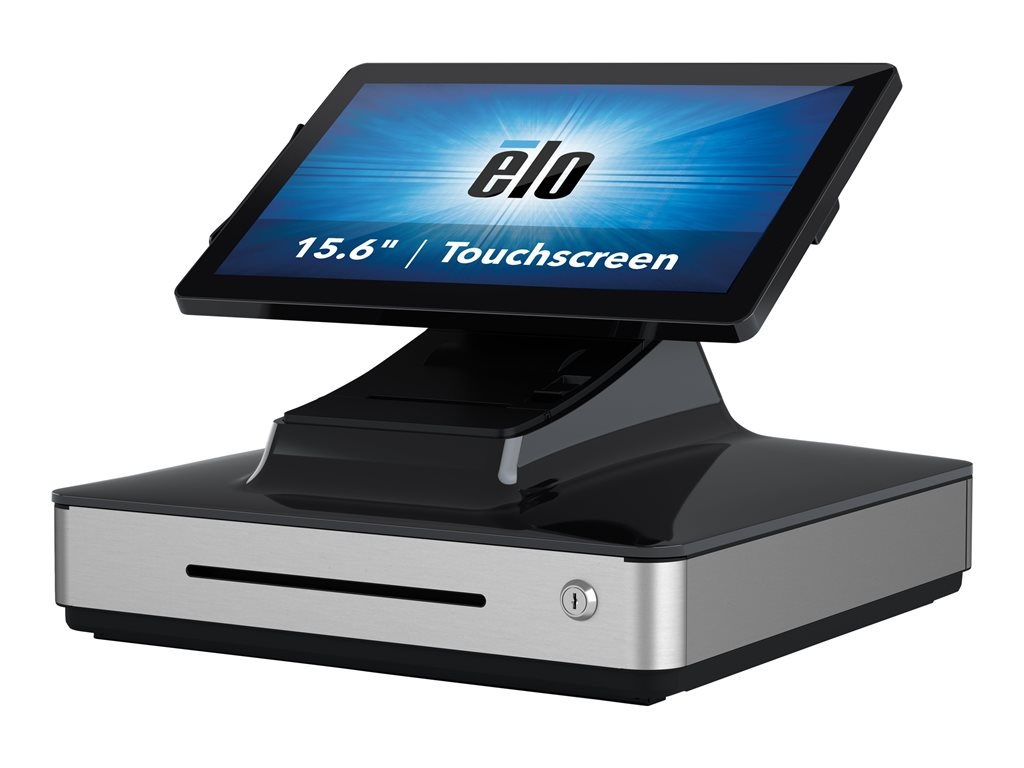

Elo PayPoint Plus - all-in-one - Core i5 8500T 2.1 GHz - 8 GB - SSD 128 GB - LED 15.6"
SKU E549280
Product Description: | Elo PayPoint Plus - all-in-one - Core i5 8500T 2.1 GHz - 8 GB - SSD 128 GB - LED 15.6" |
Type: | Point of sale terminal - all-in-one |
Localisation: | Region: United States |
Processor: | 1 x Intel Core i5 (8th Gen) 8500T / 2.1 GHz (3.5 GHz) (6-core) |
Processor Main Features: | Intel Turbo Boost Technology 2 |
Cache Memory: | 9 MB |
Cache Per Processor: | 9 MB |
- Specifications
- Description
General | |
Type: | Point of sale terminal |
Product Form Factor: | All-in-one |
Built-in Devices: | Speaker, LCD Customer Display, 2D barcode reader, cash drawer (4 bill, 8 coin) |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Colour: | Black |
Localisation: | Region: United States |
Processor / Chipset | |
CPU: | Intel Core i5 (8th Gen) 8500T |
Clock Speed: | 2.1 GHz |
Max Turbo Speed: | 3.5 GHz |
Number of Cores: | 6-core |
CPU Qty: | 1 |
Processor Main Features: | Intel Turbo Boost Technology 2 |
Cache Memory | |
Installed Size: | 9 MB |
Cache Per Processor: | 9 MB |
RAM | |
Installed Size: | 8 GB / 32 GB (max) |
Technology: | DDR4 SDRAM |
Effective Memory Speed: | 2666 MHz |
Rated Memory Speed: | 2666 MHz |
Form Factor: | SO-DIMM 260-pin |
Slots: | 2 (Total) / 1 (empty) |
Configuration Features: | 1 x 8 GB |
Hard Drive | |
Type: | SSD - M.2 |
Capacity: | 1 x 128 GB |
Monitor | |
Monitor Type: | LED |
Touchscreen: | Yes (5-point multi-touch) |
Diagonal Size: | 15.6" |
Native Resolution: | 1920 x 1080 (Full HD) |
V-Sync Rate at Max Res.: | 60 Hz |
Widescreen Display: | Yes |
Image Aspect Ratio: | 16:9 |
Horizontal Viewing Angle: | +80 / -80 |
Vertical Viewing Angle: | +80 / -80 |
Response Time: | 30 ms |
Image Brightness: | 300 cd/m² |
Image Contrast Ratio: | 800:1 |
Monitor Features: | Projected Capacitive Touch (P-CAP) technology |
Graphics Controller | |
Graphics Processor: | Intel UHD Graphics 630 |
Input Device | |
Type: | Bar-code reader, Magnetic Stripe Reader |
Networking | |
Wireless LAN Supported: | Yes |
Data Link Protocol: | Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
Printer | |
Type: | Receipt printer |
Technology: | Thermal transfer |
Max Print Speed: | 250 mm/sec |
Media Size: | Roll (8 cm) |
Expansion / Connectivity | |
Interfaces: | 4 x USB 2.0 ¦ 2 x serial - RJ-45 ¦ 1 x Micro-HDMI ¦ 1 x cash drawer - RJ-12 ¦ 1 x LAN ¦ 1 x PoweredUSB (12 V) |
Miscellaneous | |
Included Accessories: | 2 cash drawer keys, customer facing display, receipt paper roll |
Cables Included: | Serial cable |
Compliant Standards: | UL, VCCI, cUL, CB, CCC, IC, FCC, SRRC, JRF, RED |
Battery | |
Technology: | Lithium Ion |
Power | |
Device Type: | Power supply |
Voltage Required: | AC 100 - 240 V (50 - 60 Hz) |
Power Consumption Operational: | 51.86 Watt |
Operating System / Software | |
OS Provided: | Windows 10 IoT LTSB |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Dimensions & Weight | |
Width: | 42 cm |
Depth: | 41.1 cm |
Height: | 32.3 cm |
Weight: | 10.2 kg |
Dimensions & Weight (Shipping) | |
Shipping Width: | 51.8 cm |
Shipping Depth: | 53.8 cm |
Shipping Height: | 38.9 cm |
Shipping Weight: | 13.5 kg |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 20 - 80% (non-condensing) |
PayPoint Plus for Windows is a new point-of-sale (POS) solution that delivers unmatched style and function with the power of Intel Coffee Lake Core i5 processing. PayPoint Plus provides everything a merchant needs including a 15.6" Windows-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from Magtek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.
The technical details come from 3rd party. edgemo is not responsible for any errors.
