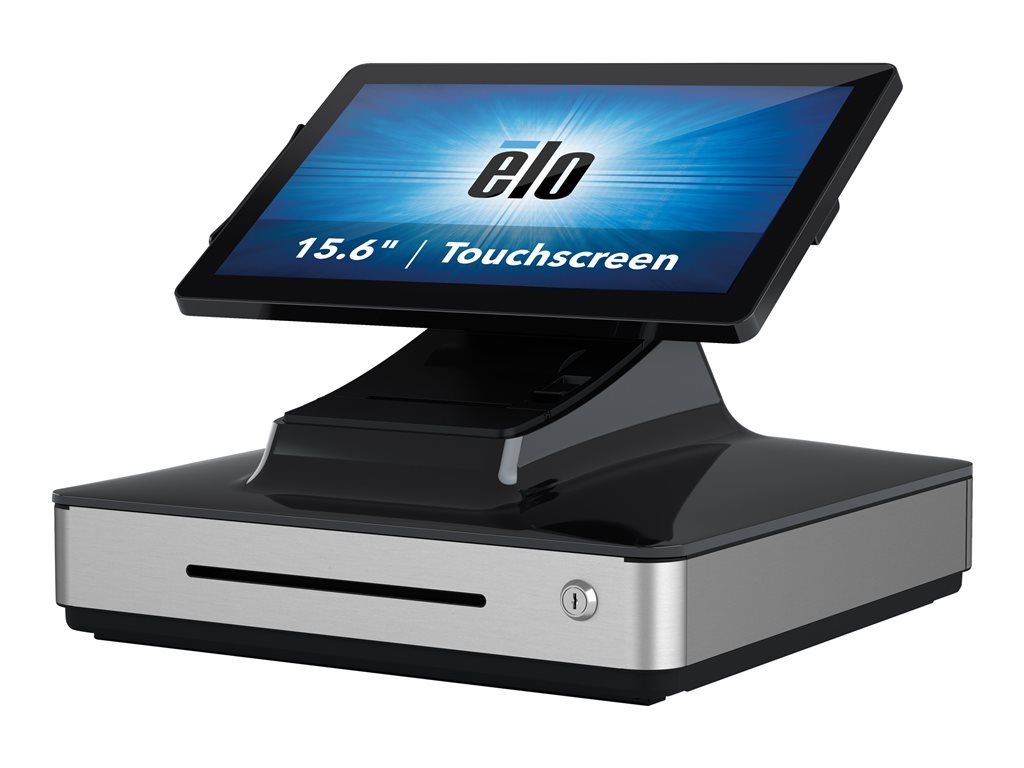

Elo PayPoint Plus - all-in-one - Core i5 8500T 2.1 GHz - 8 GB - SSD 128 GB - LED 15.6"

SKU E549091
Product Description:Elo PayPoint Plus - all-in-one - Core i5 8500T 2.1 GHz - 8 GB - SSD 128 GB - LED 15.6"
Type:Point of sale terminal - all-in-one
Localisation:Region: United States
Processor:1 x Intel Core i5 (8th Gen) 8500T / 2.1 GHz (3.5 GHz) (6-core)
Processor Main Features:Intel Turbo Boost Technology 2
Cache Memory:9 MB
Cache Per Processor:9 MB
Not in stock
  • Specifications
  • Description
General
Type:Point of sale terminal
Product Form Factor:All-in-one
Built-in Devices:Speaker, LCD Customer Display, 2D barcode reader, cash drawer (4 bill, 8 coin)
Embedded Security:Trusted Platform Module (TPM 2.0) Security Chip
Colour:Black
Localisation:Region: United States
Processor / Chipset
CPU:Intel Core i5 (8th Gen) 8500T
Clock Speed:2.1 GHz
Max Turbo Speed:3.5 GHz
Number of Cores:6-core
CPU Qty:1
Processor Main Features:Intel Turbo Boost Technology 2
Cache Memory
Installed Size:9 MB
Cache Per Processor:9 MB
RAM
Installed Size:8 GB / 32 GB (max)
Technology:DDR4 SDRAM
Effective Memory Speed:2666 MHz
Rated Memory Speed:2666 MHz
Form Factor:SO-DIMM 260-pin
Slots:2 (Total) / 1 (empty)
Configuration Features:1 x 8 GB
Hard Drive
Type:SSD - M.2
Capacity:1 x 128 GB
Monitor
Monitor Type:LED
Touchscreen:Yes (5-point multi-touch)
Diagonal Size:15.6"
Native Resolution:1920 x 1080 (Full HD)
V-Sync Rate at Max Res.:60 Hz
Widescreen Display:Yes
Image Aspect Ratio:16:9
Horizontal Viewing Angle:+80 / -80
Vertical Viewing Angle:+80 / -80
Response Time:30 ms
Image Brightness:300 cd/m²
Image Contrast Ratio:800:1
Monitor Features:Projected Capacitive Touch (P-CAP) technology
Graphics Controller
Graphics Processor:Intel UHD Graphics 630
Input Device
Type:Bar-code reader, Magnetic Stripe Reader
Networking
Wireless LAN Supported:Yes
Data Link Protocol:Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Printer
Type:Receipt printer
Technology:Thermal transfer
Max Print Speed:250 mm/sec
Media Size:Roll (8 cm)
Expansion / Connectivity
Interfaces:4 x USB 2.0 ¦ 2 x serial - RJ-45 ¦ 1 x Micro-HDMI ¦ 1 x cash drawer - RJ-12 ¦ 1 x LAN ¦ 1 x PoweredUSB (12 V)
Miscellaneous
Included Accessories:2 cash drawer keys, customer facing display, receipt paper roll
Cables Included:Serial cable
Compliant Standards:UL, VCCI, cUL, CB, CCC, IC, FCC, SRRC, JRF, RED
Battery
Technology:Lithium Ion
Power
Device Type:Power supply
Voltage Required:AC 100 - 240 V (50 - 60 Hz)
Power Consumption Operational:51.86 Watt
Operating System / Software
OS Provided:No operating system
Manufacturer Warranty
Service & Support:Limited warranty - 3 years
Dimensions & Weight
Width:42 cm
Depth:41.1 cm
Height:32.3 cm
Weight:10.2 kg
Dimensions & Weight (Shipping)
Shipping Width:51.8 cm
Shipping Depth:53.8 cm
Shipping Height:38.9 cm
Shipping Weight:13.5 kg
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:35 °C
Humidity Range Operating:20 - 80% (non-condensing)
vis mere
PayPoint Plus for Windows is a new point-of-sale (POS) solution that delivers unmatched style and function with the power of Intel Coffee Lake Core i5 processing. PayPoint Plus provides everything a merchant needs including a 15.6" Windows-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from Magtek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.
