Printers & POSElo Pay 7" - all-in-one Snapdragon 660 2.2 GHz - 4 GB - flash 64 GB - LCD 7" - with Z70 POS Stand & External Hub
SKU E814281
| Product Description: | Elo Pay 7" - all-in-one Snapdragon 660 2.2 GHz - 4 GB - flash 64 GB - LCD 7" - with Z70 POS Stand & External Hub |
| Type: | Point of sale terminal - all-in-one |
| Processor: | 1 x Qualcomm Snapdragon 660 2.2 GHz (8-core) |
| RAM: | 4 GB |
| Hard Drive: | Flash 64 GB |
| Optical Storage: | No optical drive |
| Card Reader: | Yes |
- Specifications
- Description
| General | |
| Type: | Point of sale terminal |
| Product Form Factor: | All-in-one |
| Built-in Devices: | 1W speaker, buzzer, MIFARE EMV card reader, EMV Chip Card Rader, 3-track MSR reader |
| Sensors: | Accelerometer |
| Colour: | Black |
| Bundled with: | Z70 POS Stand & External Hub |
| Processor / Chipset | |
| CPU: | Qualcomm Snapdragon 660 |
| Clock Speed: | 2.2 GHz |
| Number of Cores: | 8-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| RAM | |
| Installed Size: | 4 GB |
| Hard Drive | |
| Type: | Flash |
| Capacity: | 1 x 64 GB |
| Optical Storage | |
| Type: | No optical drive |
| Card Reader | |
| Type: | Card reader |
| Supported Flash Memory Cards: | microSD |
| Monitor | |
| Monitor Type: | LCD |
| Touchscreen: | Yes (10-point multi-touch) |
| Diagonal Size: | 7" |
| Native Resolution: | 1920 x 1080 (Full HD) |
| Widescreen Display: | Yes |
| Image Contrast Ratio: | 1000:1 |
| Monitor Features: | Projected Capacitive Touch (P-CAP) technology, Corning Gorilla glass, water resistant, Optically Bonded |
| Camera | |
| Camera: | Yes |
| Resolution (MP): | 5 Megapixel (front) |
| Input Device | |
| Type: | Magnetic Stripe Reader, 2 card readers |
| Audio Input | |
| Type: | Two microphones |
| Networking | |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, NFC |
| Features: | MU-MIMO Support |
| Expansion / Connectivity | |
| Slots: | 2 (total) / 2 (free) x PSAM slot |
| Interfaces: | 4 x USB 2.0 - Type A ¦ 3 x USB-C ¦ 1 x LAN |
| Miscellaneous | |
| Cables Included: | USB-C to USB-C cable |
| Compliant Standards: | IP54 front, PCI-PTS 6.2 Certified, EMV Level-1, EMV Level 2, Visa payWave, MasterCard payPass, Amex ExpressPay, Discover D-PAS, China Union Pay International, JCB J/Speedy, Mastercard TQM, Interac Flash, EFTPOS, SECC, UKCC, UL, FCC Class B certified, cUL, IC, CB, RCM, China RoHS, ESD Class B, ISO 18092, ISO 14443 type A, ISO 14443 type B, ISO 7810, ISO 7811 |
| Power | |
| Device Type: | Power adapter |
| Power Device Name: | Elo Power Brick |
| Power Provided: | 120 Watt |
| Operating System / Software | |
| OS Provided: | Android 12 |
| Software: | Google Play Services, EloView content deployment and management |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width: | 17.6 cm |
| Depth: | 4.295 cm |
| Height: | 16.868 cm |
| Weight: | 616 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 22 cm |
| Shipping Depth: | 6.8 cm |
| Shipping Height: | 18.95 cm |
| Shipping Weight: | 716 g |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |

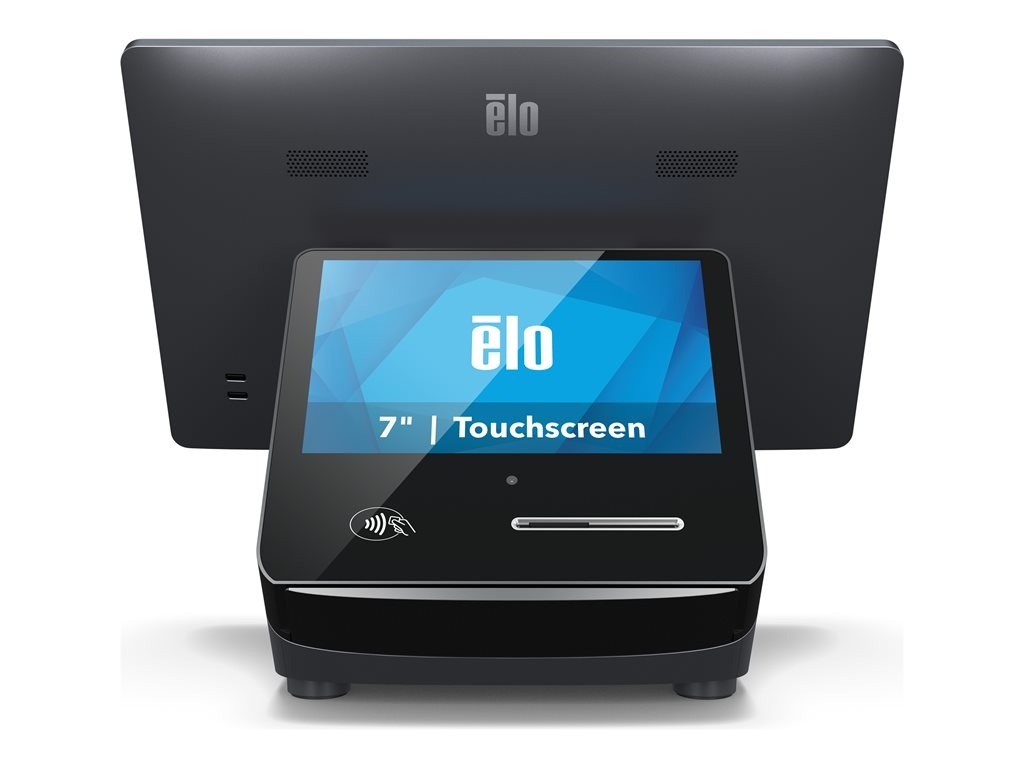

The Elo Pay 7-inch integrated payment POS system packs the modularity merchants need into a compact enterprise-grade terminal. Complete with a 7-inch HD touch display, integrated payment, flexible Android 12 OS, Qualcomm SD660 processor and Z70 POS Stand with integrated hub. From EMV and NFC to MSR and support for pin-on-glass, the Elo Pay 7-inch POS system enables merchants to accept all forms of payment. And with the ability to place it on the counter or mount it on the back of the Z70 POS Stand, there is a configuration to support all types of merchants.
- 7-inch Full HD touchscreen with Projected Capacitive Touch (P-CAP) technology
- Supports a wide array of payment methods including NFC and EMV chip cards
- Robust connectivity with Bluetooth 5.0 and Wi-Fi 802.11a/b/g/n/ac
- Built-in 5 Megapixel front camera for versatile use cases
- Compliant with multiple security and payment standards for reliable transactions
