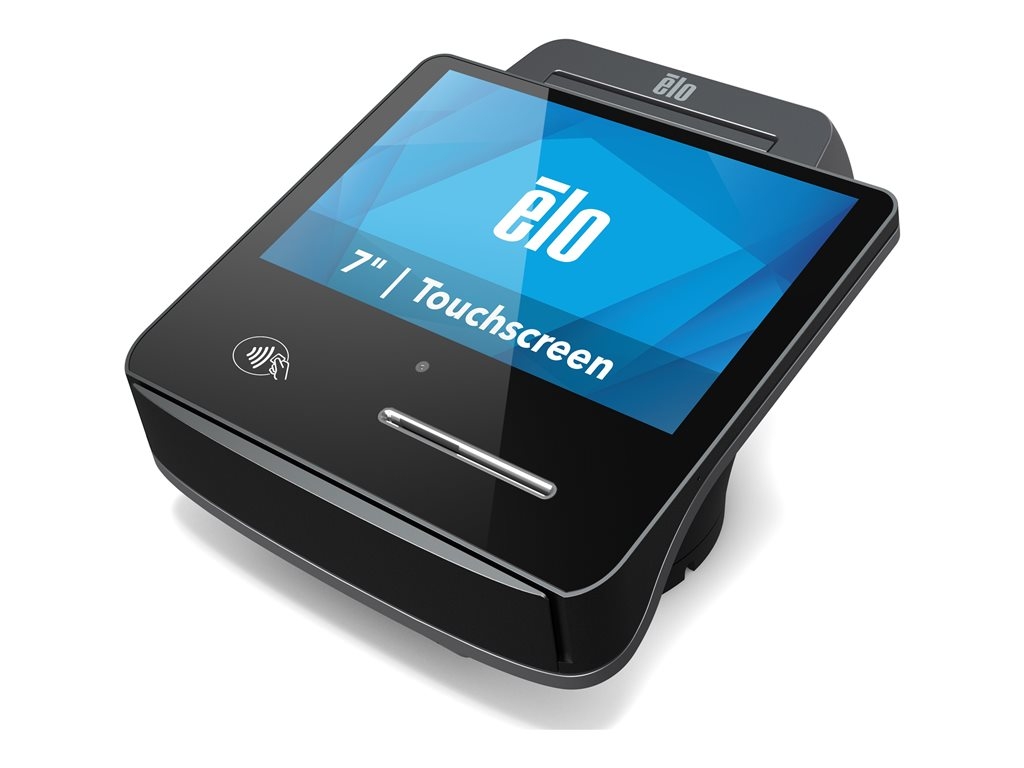

Printers & POSElo Pay 7" - all-in-one Snapdragon 660 2.2 GHz - 4 GB - flash 64 GB - LCD 7" - with Printer Stand
SKU E814661
| Product Description: | Elo Pay 7" - all-in-one Snapdragon 660 2.2 GHz - 4 GB - flash 64 GB - LCD 7" - with Printer Stand |
| Type: | Point of sale terminal - all-in-one |
| Processor: | 1 x Qualcomm Snapdragon 660 2.2 GHz (8-core) |
| RAM: | 4 GB |
| Hard Drive: | Flash 64 GB |
| Optical Storage: | No optical drive |
| Card Reader: | Yes |
- Specifications
- Description
| General | |
| Type: | Point of sale terminal |
| Product Form Factor: | All-in-one |
| Built-in Devices: | 1W speaker, buzzer, MIFARE EMV card reader, EMV Chip Card Rader, 3-track MSR reader |
| Sensors: | Accelerometer |
| Colour: | Black |
| Bundled with: | Printer Stand |
| Processor / Chipset | |
| CPU: | Qualcomm Snapdragon 660 |
| Clock Speed: | 2.2 GHz |
| Number of Cores: | 8-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| RAM | |
| Installed Size: | 4 GB |
| Hard Drive | |
| Type: | Flash |
| Capacity: | 1 x 64 GB |
| Optical Storage | |
| Type: | No optical drive |
| Card Reader | |
| Type: | Card reader |
| Supported Flash Memory Cards: | microSD |
| Monitor | |
| Monitor Type: | LCD |
| Touchscreen: | Yes (10-point multi-touch) |
| Diagonal Size: | 7" |
| Native Resolution: | 1920 x 1080 (Full HD) |
| Widescreen Display: | Yes |
| Image Contrast Ratio: | 1000:1 |
| Monitor Features: | Projected Capacitive Touch (P-CAP) technology, Corning Gorilla glass, water resistant, Optically Bonded |
| Camera | |
| Camera: | Yes |
| Resolution (MP): | 5 Megapixel (front) |
| Input Device | |
| Type: | Magnetic Stripe Reader, 2 card readers |
| Audio Input | |
| Type: | Two microphones |
| Networking | |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, NFC |
| Features: | MU-MIMO Support |
| Expansion / Connectivity | |
| Slots: | 2 (total) / 2 (free) x PSAM slot |
| Interfaces: | 4 x USB 2.0 - Type A ¦ 3 x USB-C ¦ 1 x cash drawer - RJ-12 ¦ 1 x LAN ¦ 1 x PoweredUSB (24 V) |
| Miscellaneous | |
| Included Accessories: | Roll paper |
| Compliant Standards: | IP54 front, PCI-PTS 6.2 Certified, EMV Level-1, Visa payWave, MasterCard payPass, Amex ExpressPay, Discover D-PAS, China Union Pay International, JCB J/Speedy, Mastercard TQM, Interac Flash, EFTPOS, SECC, UKCC, UL, FCC Class B certified, cUL, IC, CB, RCM, China RoHS, ESD Class B, ISO 18092, ISO 14443 type A, ISO 14443 type B, ISO 7810, ISO 7811, EMV Level 2 |
| Power | |
| Device Type: | Power adapter |
| Power Provided: | 45 Watt |
| Operating System / Software | |
| OS Provided: | Android 12 |
| Software: | Google Play Services, EloView content deployment and management |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width: | 17.6 cm |
| Depth: | 4.295 cm |
| Height: | 16.868 cm |
| Weight: | 616 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 22 cm |
| Shipping Depth: | 6.8 cm |
| Shipping Height: | 18.95 cm |
| Shipping Weight: | 716 g |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
The Elo Pay 7-inch integrated payment POS system packs the modularity merchants need into a compact enterprise-grade terminal. Complete with a 7-inch HD touch display, integrated payment, flexible Android 12 OS, Qualcomm SD660 processor and a swivel stand with an integrated printer. From EMV and NFC to MSR and support for pin-on-glass, the Elo Pay 7-inch POS system enables merchants to accept all forms of payment.
- 7-inch Full HD touchscreen with Projected Capacitive Touch (P-CAP) technology
- Supports a wide array of payment methods including NFC and EMV chip cards
- Robust connectivity with Bluetooth 5.0 and Wi-Fi 802.11a/b/g/n/ac
- Built-in 5 Megapixel front camera for versatile use cases
- Compliant with multiple security and payment standards for reliable transactions
The technical details come from 3rd party. edgemo is not responsible for any errors.
