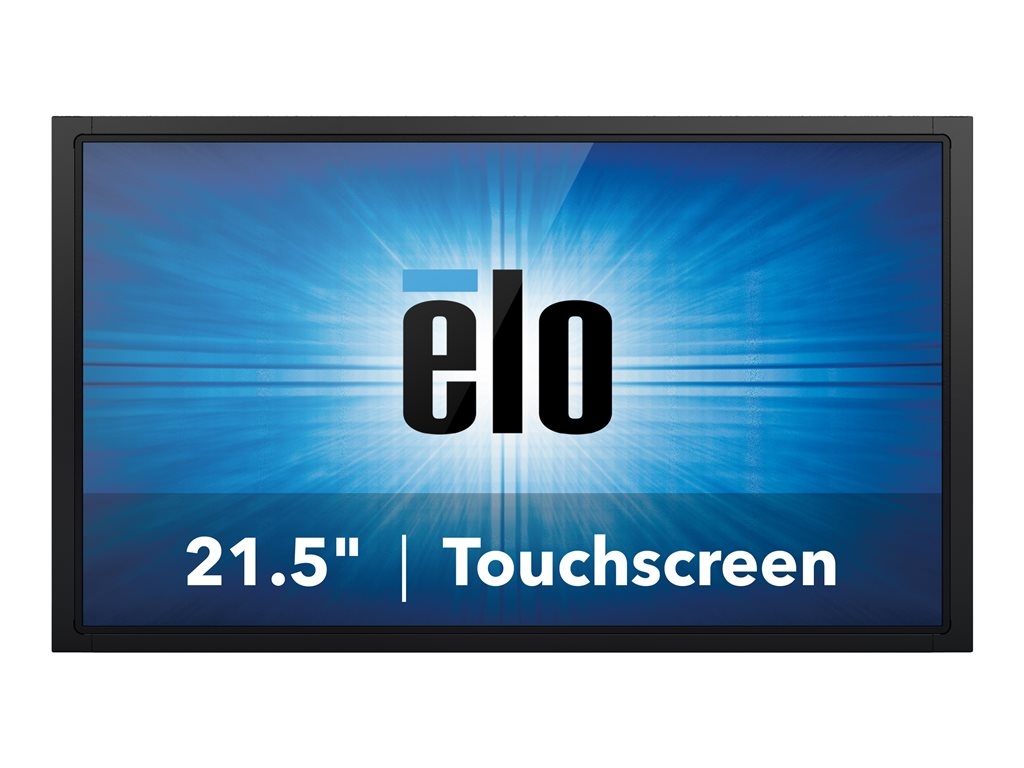

Printers & POSElo Open-Frame Touchmonitors 2294L - Rev B - LED monitor - Full HD (1080p) - 21.5"
SKU E327528
| Product Description: | Elo Open-Frame Touchmonitors 2294L - Rev B - LED monitor - Full HD (1080p) - 21.5" |
| Device Type: | LED-backlit LCD monitor - 21.5" - touchscreen |
| Energy Class: | Class B |
| Energy Consumption per Year: | 39 kWh |
| Power Consumption (On mode): | 27 W |
| Features: | Touch-screen, remote control |
| Aspect Ratio: | 16:9 |
- Specifications
- Description
| General | |
| Display Type: | LED-backlit LCD monitor / TFT active matrix |
| Energy Class: | Class B |
| Energy Consumption per Year: | 39 kWh |
| Diagonal Size: | 21.5" |
| Aspect Ratio: | 16:9 |
| Native Resolution: | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness: | 250 cd/m² |
| Brightness w/touchscreen: | 225 cd/m² |
| Contrast Ratio: | 1000:1 |
| Colour Support: | 16.7 million colours |
| Response Time: | 14 ms |
| Vertical Refresh Rate: | 50 - 75 Hz |
| Horizontal Refresh Rate: | 30 - 82 kHz |
| Horizontal Viewing Angle: | +89 / -89 |
| Vertical Viewing Angle: | +89 / -89 |
| Backlight Technology: | LED backlight |
| OSD Languages: | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features: | Remote OSD, IntelliTouch Surface Acoustic Wave |
| Colour: | Black |
| Dimensions (WxDxH): | 51.18 cm x 4.2 cm x 29.82 cm |
| Weight: | 5.1 kg |
| Input | |
| Type: | Touch-screen, remote control - touchscreen |
| Movement Detection Technology: | Intellitouch SAW |
| Connectivity | |
| Interfaces: | USB ¦ VGA ¦ DisplayPort ¦ HDMI |
| Mechanical | |
| VESA Mounting Interface: | 100 x 100 mm |
| Miscellaneous | |
| Cables Included: | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit: | Included |
| MTBF: | 50,000 hours |
| Compliant Standards: | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, DisplayPort 1.1a, IMERC |
| Power | |
| Power Consumption (On mode): | 27 W |
| Power Consumption (Typical): | 25 Watt |
| Power Consumption Sleep: | 1.5 Watt |
| Power Consumption (Off Mode): | 0.5 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2294L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
- IntelliTouch SAW and IntelliTouch Plus SAW
- High-definition LCD display offers ultimate HD interactivity, clarity and resolution
- Wide viewing angle for sharp colors and graphics in both portrait and landscape modes
- LED backlighting allows for state-of-the-art slim design while reducing power consumption
- 10-point touch projected capacitive with Thru-glass capabilities
- DisplayPort and VGA video interfaces
The technical details come from 3rd party. edgemo is not responsible for any errors.
