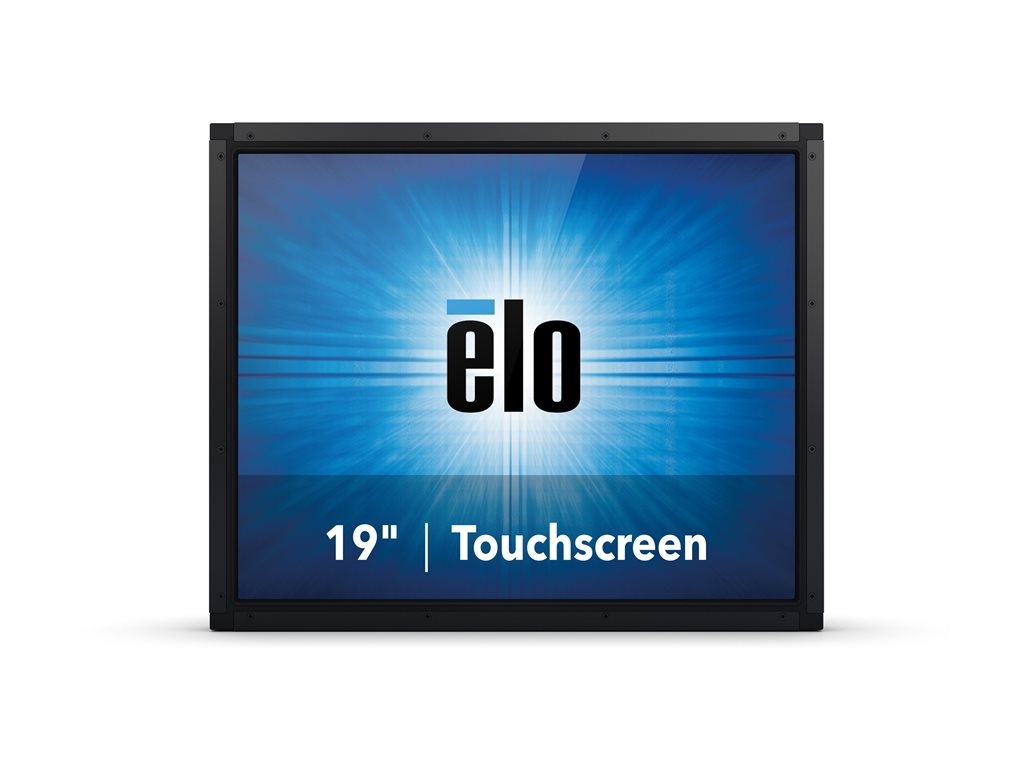

Elo Open-Frame Touchmonitors 1990L - LED monitor - 19"

SKU E328497
Product Description:Elo Open-Frame Touchmonitors 1990L - LED monitor - 19"
Device Type:LED-backlit LCD monitor - 19" - touchscreen
Energy Class:Class B
Energy Consumption per Year:34 kWh
Power Consumption (On mode):23 W
Aspect Ratio:5:4
Native Resolution:1280 x 1024 at 60 Hz
In Stock(20)
  • Specifications
  • Description
Display Type:LED-backlit LCD monitor / TFT active matrix
Energy Class:Class B
Energy Consumption per Year:34 kWh
Diagonal Size:19"
Aspect Ratio:5:4
Native Resolution:1280 x 1024 at 60 Hz
Brightness:250 cd/m²
Brightness w/touchscreen:225 cd/m²
Contrast Ratio:1000:1
Colour Support:16.7 million colours
Response Time:5 ms
Vertical Refresh Rate:50 - 75 Hz
Horizontal Refresh Rate:30 - 82 kHz
Horizontal Viewing Angle:+85 / -85
Vertical Viewing Angle:+80 / -80
Backlight Technology:LED backlight
OSD Languages:Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese
Features:Remote OSD, Slim Design, IntelliTouch Surface Acoustic Wave
Dimensions (WxDxH):41.47 cm x 5 cm x 34.27 cm
Weight:4.6 kg
Interfaces:USB ¦ VGA ¦ DisplayPort ¦ HDMI ¦ Serial
VESA Mounting Interface:100 x 100 mm, 75 x 75 mm
Cables Included:1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable
Mounting Kit:Included
MTBF:50,000 hours
Compliant Standards:UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, DisplayPort 1.1a, IMERC
Input Voltage:AC 120/230 V (50/60 Hz)
Power Consumption (On mode):23 W
Power Consumption (Typical):22 Watt
Manufacturer Warranty
Service & Support:Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:20 - 80% (non-condensing)
vis mere
The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
  • IntelliTouch SAW
  • Touchscreen sealed against dirt, dust and liquids
  • LED backlighting allows for state-of-the-art slim design while reducing power consumption
  • 10-point touch projected capacitive (PCAP) with Thru-glass capabilities
  • DisplayPort and VGA video interfaces

The technical details come from 3rd party. edgemo is not responsible for any errors.
