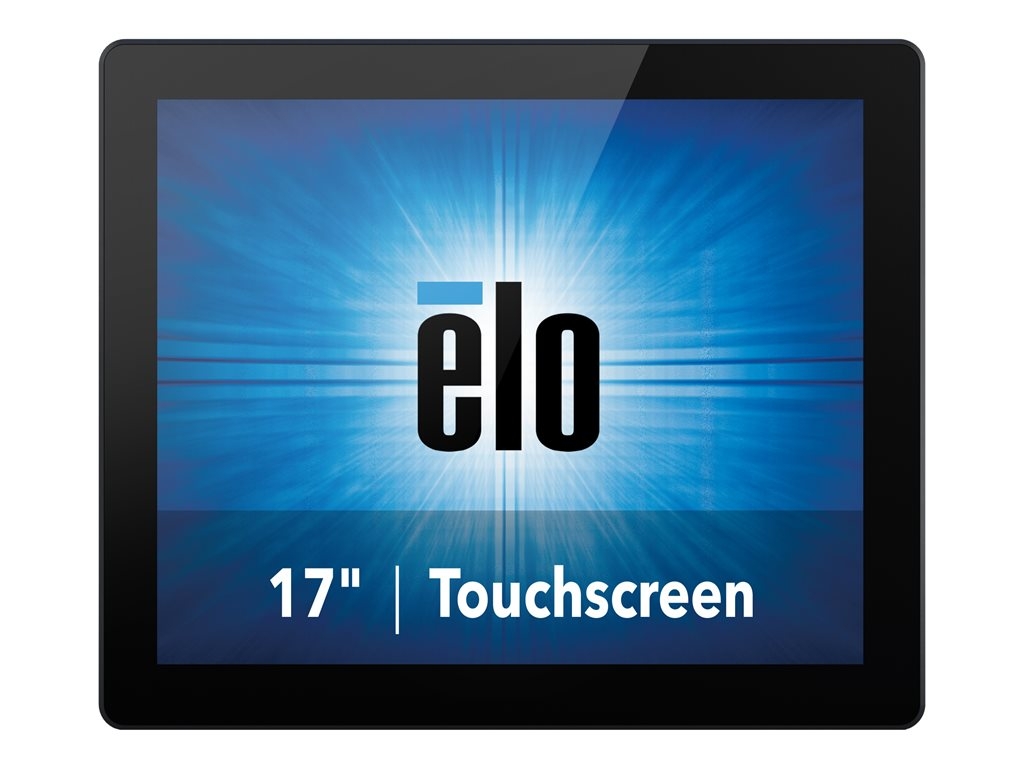

Printers & POSElo Open-Frame Touchmonitors 1790L - LED monitor - 17"
SKU E330225
| Product Description: | Elo Open-Frame Touchmonitors 1790L - LED monitor - 17" |
| Device Type: | LED-backlit LCD monitor - 17" - touchscreen |
| Energy Class: | Class B |
| Energy Consumption per Year: | 30 kWh |
| Power Consumption (On mode): | 20 W |
| Features: | Touch-screen, remote control |
| Aspect Ratio: | 5:4 |
- Specifications
- Description
| General | |
| Display Type: | LED-backlit LCD monitor / TFT active matrix |
| Energy Class: | Class B |
| Energy Consumption per Year: | 30 kWh |
| Diagonal Size: | 17" |
| Aspect Ratio: | 5:4 |
| Native Resolution: | 1280 x 1024 at 60 Hz |
| Brightness: | 250 cd/m² |
| Brightness w/touchscreen: | 225 cd/m² |
| Contrast Ratio: | 1000:1 |
| Colour Support: | 16.7 million colours |
| Response Time: | 5 ms |
| Vertical Refresh Rate: | 50 - 75 Hz |
| Horizontal Refresh Rate: | 30 - 82 kHz |
| Horizontal Viewing Angle: | +85 / -85 |
| Vertical Viewing Angle: | +80 / -80 |
| Backlight Technology: | LED backlight |
| OSD Languages: | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features: | Remote OSD, Projected Capacitive Touch (P-CAP) technology |
| Colour: | Black |
| Dimensions (WxDxH): | 39.22 cm x 4.28 cm x 32.75 cm |
| Weight: | 3.6 kg |
| Input | |
| Type: | Touch-screen, remote control - touchscreen |
| Movement Detection Technology: | Projected capacitive |
| Connectivity | |
| Interfaces: | USB ¦ VGA ¦ DisplayPort ¦ HDMI |
| Mechanical | |
| VESA Mounting Interface: | 100 x 100 mm, 75 x 75 mm |
| Miscellaneous | |
| Cables Included: | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit: | Included |
| MTBF: | 50,000 hours |
| Compliant Standards: | UL, TUV, VCCI, BSMI, cUL, UL 60950, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IK07, DisplayPort 1.1a, IMERC |
| Power | |
| Power Consumption (On mode): | 20 W |
| Power Consumption (Typical): | 17.8 Watt |
| Power Consumption Sleep: | 1.5 Watt |
| Power Consumption (Off Mode): | 0.5 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 17-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
- IntelliTouch SAW, SecureTouch anti-vandal SAW, and AccuTouch five-wire resistive
- High-quality energy-saving LED panel
- 10-point touch projected capacitive (PCAP)
- DisplayPort and VGA video interfaces
The technical details come from 3rd party. edgemo is not responsible for any errors.
