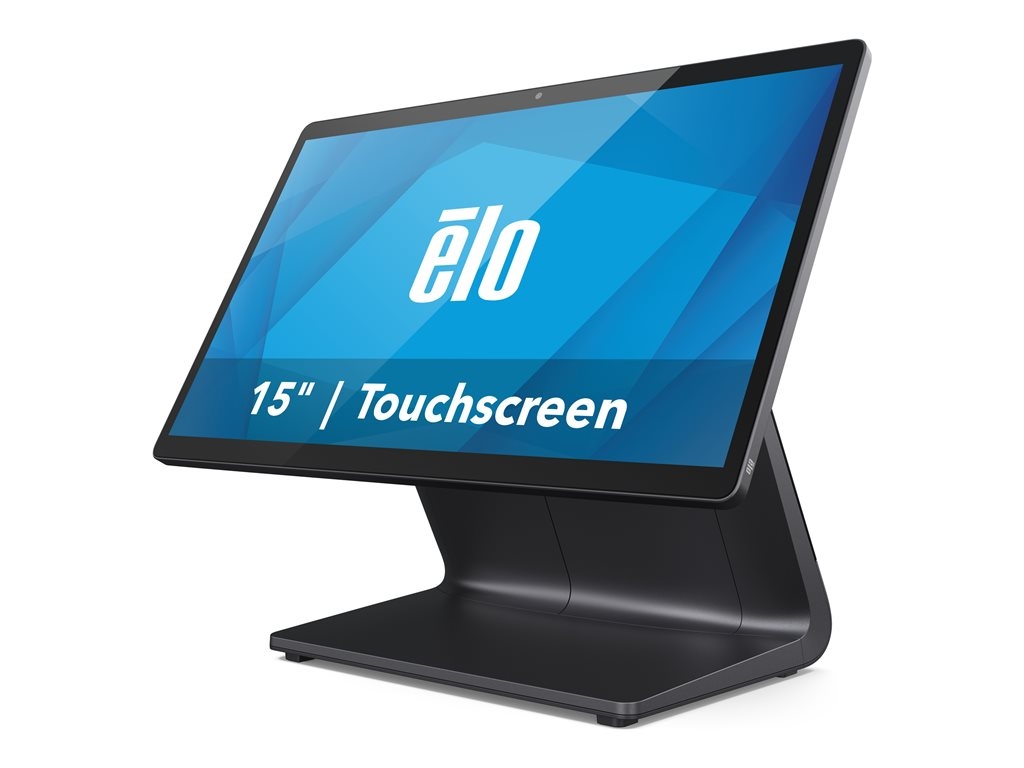

Printers & POSElo I-Series EloPOS Z30 - all-in-one Pentium J6426 2 GHz - 8 GB - SSD 128 GB - LED 15.6"
SKU E984089
| Product Description: | Elo I-Series EloPOS Z30 - all-in-one Pentium J6426 2 GHz - 8 GB - SSD 128 GB - LED 15.6" |
| Type: | Point of sale terminal - all-in-one |
| Localisation: | Region: Worldwide |
| Processor: | 1 x Intel Pentium J6426 / 2 GHz (up to 3 GHz, (Quad-Core) |
| Cache Memory: | 1.5 MB L2 Cache |
| Cache Per Processor: | 1.5 MB |
| RAM: | 8 GB (installed) / 32 GB (max) - DDR4 SDRAM |
- Specifications
- Description
| General | |
| Type: | Point of sale terminal |
| Product Form Factor: | All-in-one |
| Built-in Devices: | Antenna, dual 2 W speakers |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour: | Dark grey metallic |
| Localisation: | Region: Worldwide |
| Processor / Chipset | |
| CPU: | Intel Pentium J6426 |
| Clock Speed: | 2 GHz |
| Max Turbo Speed: | 3 GHz |
| Number of Cores: | Quad-Core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| Cache Memory | |
| Installed Size: | L2 Cache - 1.5 MB |
| Cache Per Processor: | 1.5 MB |
| RAM | |
| Installed Size: | 8 GB (installed) / 32 GB (max) |
| Technology: | DDR4 SDRAM |
| Effective Memory Speed: | 3200 MHz |
| Rated Memory Speed: | 3200 MHz |
| Form Factor: | SO-DIMM 260-pin |
| Slots: | 1 (Total) / 0 (empty) |
| Configuration Features: | 1 x 8 GB |
| Hard Drive | |
| Type: | SSD - M.2 |
| Capacity: | 1 x 128 GB |
| Interface Type: | PCI Express |
| Features: | NVM Express (NVMe) |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | LED |
| Touchscreen: | Yes (10-point multi-touch) |
| Diagonal Size: | 15.6" |
| Native Resolution: | 1920 x 1080 (Full HD) |
| V-Sync Rate at Max Res.: | 60 Hz |
| Widescreen Display: | Yes |
| Image Aspect Ratio: | 16:9 |
| Horizontal Viewing Angle: | +85 / -85 |
| Vertical Viewing Angle: | +85 / -85 |
| Response Time: | 25 ms |
| Image Brightness: | 300 cd/m² |
| Image Contrast Ratio: | 1000:1 |
| Monitor Features: | TouchPro Pro Projected Capacitive (PCAP) technology, 16.2 million colors |
| Graphics Controller | |
| Graphics Processor: | Intel UHD Graphics |
| Audio Output | |
| Sound Output Mode: | Stereo |
| Speakers Included: | 2 x right / left channel |
| Camera | |
| Camera: | Yes |
| Resolution (MP): | 8 Megapixel |
| Resolution: | 1920 x 1080 |
| Features: | Autofocus, 30 frames per second |
| Audio Input | |
| Type: | Digital microphone |
| Networking | |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Expansion / Connectivity | |
| Interfaces: | 4 x USB 3.0 ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging) ¦ 1 x cash drawer - RJ-12 (12V/24 V) ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB (powered (DC 24V)) ¦ 1 x USB-C ¦ 1 x DisplayPort/USB-C (Power Delivery) |
| Miscellaneous | |
| Included Accessories: | Screw set, 2 x zip ties, base plate |
| VESA Mounting Interface: | 75 x 75 mm, VESA |
| Compliant Standards: | UL, VCCI, cUL, NOM, CB, CCC, FCC, ANATEL, SRRC, RCM, UKCA, Argentina S-Mark |
| Power | |
| Device Type: | Power adapter |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Provided: | 150 Watt |
| Power Consumption Operational: | 32 Watt |
| Operating System / Software | |
| OS Provided: | No operating system |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 36.28 cm |
| Depth: | 18.04 cm |
| Height: | 29.87 cm |
| Weight: | 4 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 46 cm |
| Shipping Depth: | 27 cm |
| Shipping Height: | 39.9 cm |
| Shipping Weight: | 6.4 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 10 - 90% |
Built on Elo's unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing and an optional customer-facing touchscreen display, the EloPOS Z30 brings one of the sleekest form factors to the market.
- 15.6-inch Full HD display with TouchPro Pro Projected Capacitive (PCAP) technology for interactive user experiences
- Intel Pentium J6426 quad-core processor and 8 GB DDR4 RAM for powerful performance
- Built-in digital microphone and stereo speakers for enhanced audio
- Comprehensive connectivity with USB 3.0, DisplayPort/USB-C, and Gigabit Ethernet
- Trusted Platform Module (TPM 2.0) for secure operations
The technical details come from 3rd party. edgemo is not responsible for any errors.
