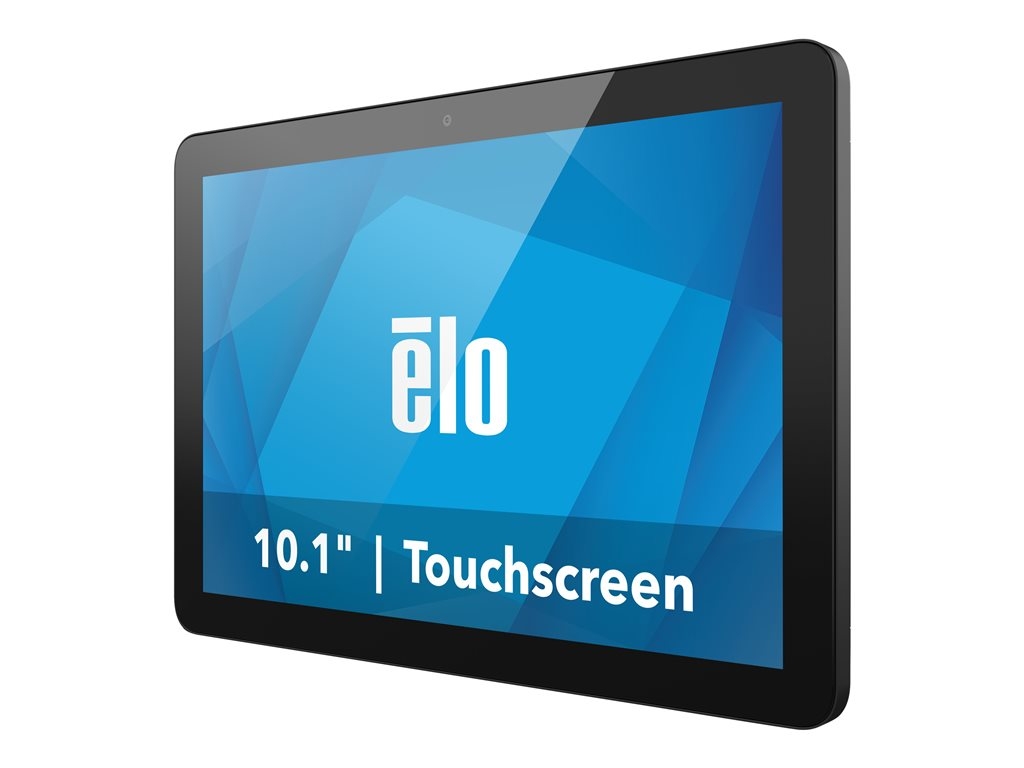

Printers & POSElo I-Series 4.0 - Value - all-in-one RK3399 - 4 GB - flash 32 GB - LED 10.1"
SKU E390647
| Product Description: | Elo I-Series 4.0 - Value - all-in-one RK3399 - 4 GB - flash 32 GB - LED 10.1" |
| Type: | Point of sale terminal - all-in-one |
| Processor: | 1 x Rockchip RK3399 |
| RAM: | 4 GB |
| Hard Drive: | Flash 32 GB |
| Optical Storage: | No optical drive |
| Card Reader: | Yes |
- Specifications
- Description
| General | |
| Type: | Point of sale terminal |
| Product Form Factor: | All-in-one |
| Colour: | Black |
| Processor / Chipset | |
| CPU: | Rockchip RK3399 |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| RAM | |
| Installed Size: | 4 GB |
| Hard Drive | |
| Type: | Flash |
| Capacity: | 1 x 32 GB |
| Optical Storage | |
| Type: | No optical drive |
| Card Reader | |
| Type: | Card reader |
| Supported Flash Memory Cards: | microSD |
| Monitor | |
| Monitor Type: | LED |
| Touchscreen: | Yes (10-point multi-touch) |
| Diagonal Size: | 10.1" |
| Native Resolution: | 1280 x 800 (WXGA) |
| V-Sync Rate at Max Res.: | 60 Hz |
| Widescreen Display: | Yes |
| Image Aspect Ratio: | 16:10 |
| Horizontal Viewing Angle: | +85 / -85 |
| Vertical Viewing Angle: | +85 / -85 |
| Response Time: | 25 ms |
| Image Brightness: | 250 cd/m² |
| Image Contrast Ratio: | 800:1 |
| Monitor Features: | TouchPro Pro Projected Capacitive (PCAP) technology |
| Audio Output | |
| Sound Output Mode: | Stereo |
| Camera | |
| Camera: | Yes |
| Resolution (MP): | 5 Megapixel |
| Resolution: | 1920 x 1080 |
| Features: | Autofocus |
| Audio Input | |
| Type: | Microphone |
| Networking | |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Expansion / Connectivity | |
| Interfaces: | 1 x USB 3.0 (900 mA) ¦ USB-C ¦ 1 x GPIO ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 - micro-USB (support for 1.2 A on one port and 500 mA for the remaining three ports) |
| Miscellaneous | |
| Included Accessories: | Power adapter, screw set |
| VESA Mounting Interface: | 75 mm, VESA |
| Compliant Standards: | UL, VCCI, cUL, CB, IC, MIC, FCC, RCM |
| Power | |
| Device Type: | Power adapter |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational: | 7.2 Watt |
| Power Consumption Stand by: | 0.4 Watt |
| Power Consumption Sleep: | 2.6 Watt |
| Operating System / Software | |
| OS Provided: | Android 10 |
| Software: | Google Mobile Services |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width: | 25.29 cm |
| Depth: | 2.21 cm |
| Height: | 16.9 cm |
| Weight: | 800 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 33 cm |
| Shipping Depth: | 15.1 cm |
| Shipping Height: | 24 cm |
| Shipping Weight: | 2.2 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% |
The Elo I-Series 4.0 offers a versatile, all-in-one solution ideal for interactive applications. With a 10.1-inch touchscreen featuring TouchPro Pro Projected Capacitive (PCAP) technology, this display ensures smooth, multi-touch interaction and precise control. The native resolution of 1280 x 800 delivers sharp images, while the 250 cd/m² brightness and 800:1 contrast ratio provide clear visibility in various lighting conditions. Equipped with a powerful Rockchip RK3399 processor and 4 GB RAM, the system ensures responsive performance for point of sale applications and other demanding tasks. Connectivity options include Gigabit Ethernet, multiple USB ports, and support for Bluetooth 5.0, facilitating seamless integration with various devices. The built-in 5 megapixel camera with autofocus enhances communication and interaction, making it ideal for virtual engagements. With a robust design and compliance with numerous standards, the Elo I-Series 4.0 is a reliable choice for business environments that require functional and durable touchscreen solutions.
- Perfect for any industry
- Modular and innovative
- Google mobile services ready
- Ready to support your digital transformation
- Create your perfect POS system
- Amazing touchscreen kiosks simplified
- Build engaging brand experiences
- Commercial-grade performance
- Expand with Edge Connect
- Do more with power over Ethernet
- Android device management made easy
The technical details come from 3rd party. edgemo is not responsible for any errors.
