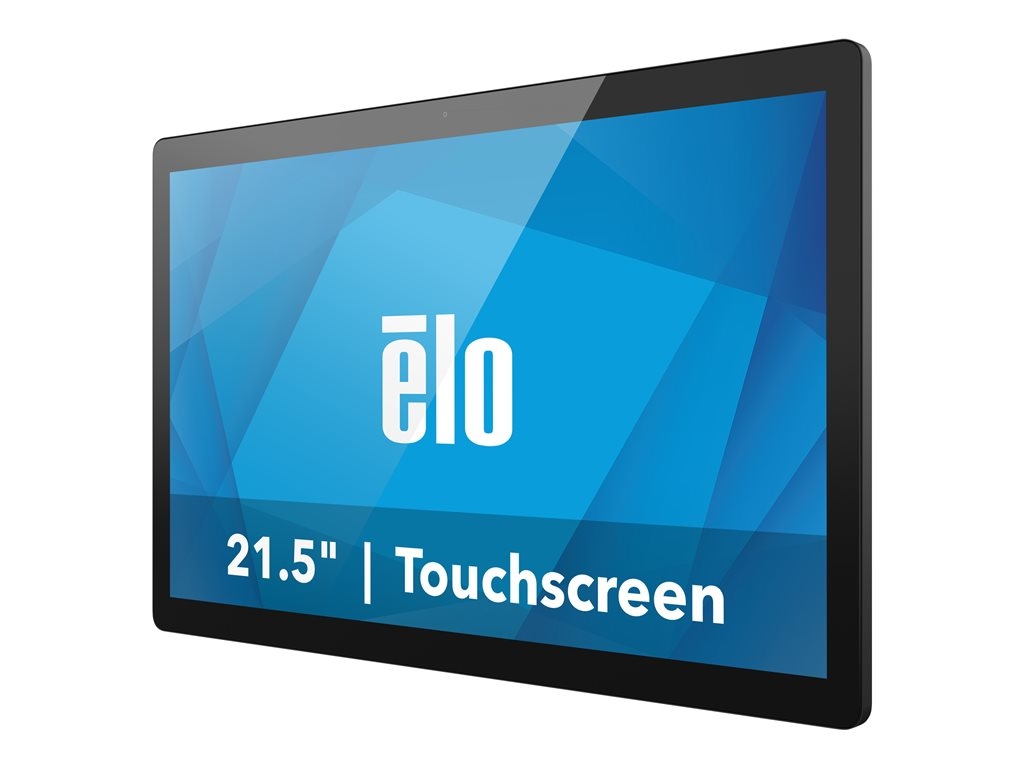

Printers & POSElo I-Series 4.0 - Standard - all-in-one Snapdragon 660 - 4 GB - flash 64 GB - LED 21.5"
SKU E390263
| Product Description: | Elo I-Series 4.0 - Standard - all-in-one Snapdragon 660 - 4 GB - flash 64 GB - LED 21.5" |
| Type: | Point of sale terminal - all-in-one |
| Processor: | 1 x Qualcomm Snapdragon 660 (8-core) |
| RAM: | 4 GB |
| Hard Drive: | Flash 64 GB |
| Optical Storage: | No optical drive |
| Card Reader: | Yes |
- Specifications
- Description
| General | |
| Type: | Point of sale terminal |
| Product Form Factor: | All-in-one |
| Colour: | Black |
| Processor / Chipset | |
| CPU: | Qualcomm Snapdragon 660 |
| Number of Cores: | 8-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| RAM | |
| Installed Size: | 4 GB |
| Hard Drive | |
| Type: | Flash |
| Capacity: | 1 x 64 GB |
| Optical Storage | |
| Type: | No optical drive |
| Card Reader | |
| Type: | Card reader |
| Supported Flash Memory Cards: | microSD |
| Monitor | |
| Monitor Type: | LED |
| Touchscreen: | Yes (10-point multi-touch) |
| Diagonal Size: | 21.5" |
| Native Resolution: | 1920 x 1080 (Full HD) |
| V-Sync Rate at Max Res.: | 60 Hz |
| Widescreen Display: | Yes |
| Image Aspect Ratio: | 16:9 |
| Horizontal Viewing Angle: | +89 / -89 |
| Vertical Viewing Angle: | +89 / -89 |
| Response Time: | 14 ms |
| Image Brightness: | 215 cd/m² |
| Image Contrast Ratio: | 1000:1 |
| Monitor Features: | TouchPro Pro Projected Capacitive (PCAP) technology |
| Audio Output | |
| Sound Output Mode: | Stereo |
| Camera | |
| Camera: | Yes |
| Resolution (MP): | 8 Megapixel |
| Resolution: | 1920 x 1080 |
| Features: | Autofocus |
| Audio Input | |
| Type: | Two microphones |
| Networking | |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Expansion / Connectivity | |
| Interfaces: | 1 x USB 3.0 (900 mA) ¦ 1 x USB-C ¦ 1 x GPIO ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 - micro-USB (support for 1.2 A on one port and 500 mA for the remaining three ports) |
| Miscellaneous | |
| Included Accessories: | Power adapter, screw set |
| VESA Mounting Interface: | 75 mm, 100 mm, VESA |
| Compliant Standards: | UL, VCCI, cUL, CB, IC, MIC, FCC, RCM |
| Power | |
| Device Type: | Power adapter |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational: | 19.8 Watt |
| Power Consumption Stand by: | 0.4 Watt |
| Power Consumption Sleep: | 4.4 Watt |
| Operating System / Software | |
| OS Provided: | Android 10 |
| Software: | Google Mobile Services |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width: | 52.48 cm |
| Depth: | 3.25 cm |
| Height: | 32.48 cm |
| Weight: | 3.8 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 59 cm |
| Shipping Depth: | 16.8 cm |
| Shipping Height: | 40 cm |
| Shipping Weight: | 5.6 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% |
The I-Series has been used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management. Elo's I-Series delivers a powerful, commercial-grade interactive platform complete with a Full HD 10-touch display and enhanced CPU performance.
- High-performance computing
- Sleek edge-to-edge glass PCAP touchscreen
- Modular design with flexible mounting
The technical details come from 3rd party. edgemo is not responsible for any errors.
