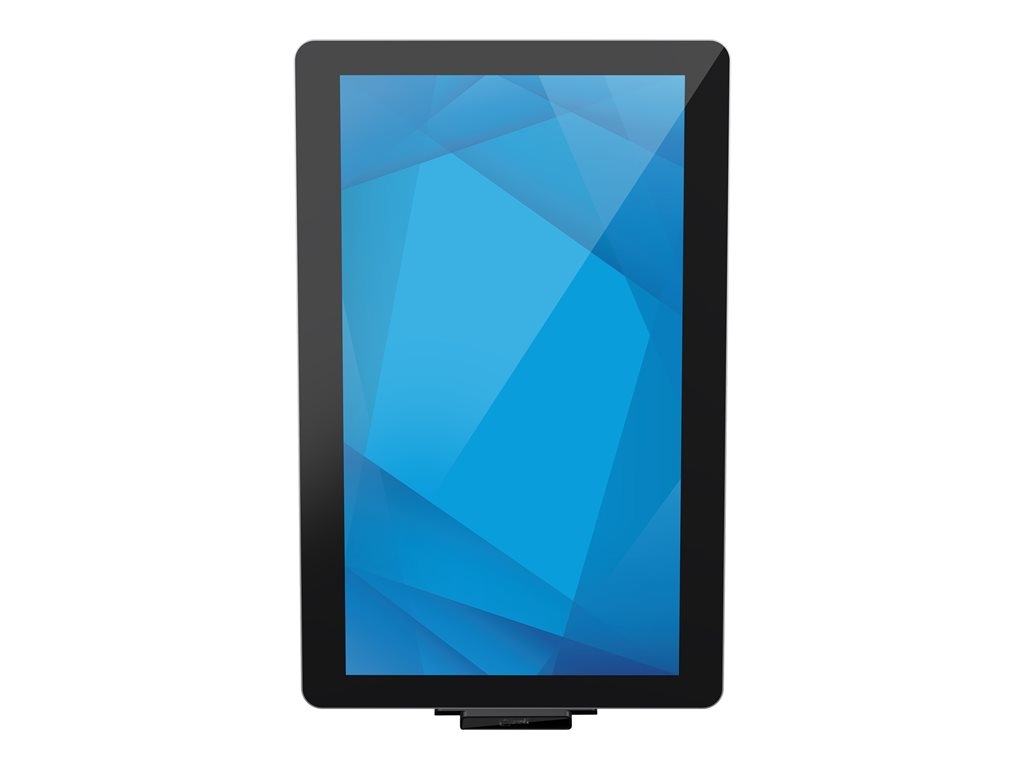

Printers & POSElo I-Series 3.0 - all-in-one - Snapdragon APQ8053 1.8 GHz - 3 GB - SSD 32 GB - LED 15"
SKU E509874
| Product Description: | Elo I-Series 3.0 - all-in-one - Snapdragon APQ8053 1.8 GHz - 3 GB - SSD 32 GB - LED 15" |
| Type: | Point of sale terminal - all-in-one |
| Localisation: | Region: Worldwide |
| Processor: | 1 x Qualcomm Snapdragon APQ8053 / 1.8 GHz (8-core) |
| RAM: | 3 GB DDR3L SDRAM |
| Hard Drive: | SSD 32 GB - eMMC 5.1 |
| Optical Storage: | No optical drive |
- Specifications
- Description
| General | |
| Type: | Point of sale terminal |
| Product Form Factor: | All-in-one |
| Built-in Devices: | Stereo speakers, 2D barcode reader (N3680), POE Module |
| Colour: | Black |
| Localisation: | Region: Worldwide |
| Processor / Chipset | |
| CPU: | Qualcomm Snapdragon APQ8053 |
| Clock Speed: | 1.8 GHz |
| Number of Cores: | 8-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| RAM | |
| Installed Size: | 3 GB |
| Technology: | DDR3L SDRAM |
| Hard Drive | |
| Type: | SSD |
| Capacity: | 1 x 32 GB |
| Features: | eMMC 5.1 |
| Optical Storage | |
| Type: | No optical drive |
| Card Reader | |
| Type: | Card reader |
| Supported Flash Memory Cards: | microSD |
| Monitor | |
| Monitor Type: | LED |
| Touchscreen: | Yes (10-point multi-touch) |
| Diagonal Size: | 15" |
| Native Resolution: | 1920 x 1080 (Full HD) |
| Widescreen Display: | Yes |
| Image Aspect Ratio: | 16:9 |
| Horizontal Viewing Angle: | +85 / -85 |
| Vertical Viewing Angle: | +85 / -85 |
| Response Time: | 30 ms |
| Image Brightness: | 258 cd/m² |
| Image Contrast Ratio: | 800:1 |
| Monitor Features: | TouchPro Pro-G Projected Capacitive (PCAP) technology |
| Audio Output | |
| Sound Output Mode: | Stereo |
| Camera | |
| Camera: | Yes |
| Resolution: | 1920 x 1080 |
| Features: | Auto exposure, auto gain control |
| Audio Input | |
| Type: | Microphone |
| Networking | |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.1 |
| Expansion / Connectivity | |
| Interfaces: | 1 x Micro-HDMI ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ GPIO ¦ 1 x USB 3.0 - Type A ¦ 4 x USB 2.0 - micro-USB |
| Miscellaneous | |
| VESA Mounting Interface: | 100 x 100 mm, 75 x 75 mm |
| Compliant Standards: | UL, BSMI, cUL, NOM, CB, IC, FCC, KCC, ANATEL, BIS |
| Power | |
| Device Type: | Power adapter |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational: | 13 Watt |
| Power Consumption Stand by: | 0.4 Watt |
| Power Consumption Sleep: | 4.5 Watt |
| Operating System / Software | |
| OS Provided: | Android 8.1 (Oreo) |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width: | 38.674 cm |
| Depth: | 2.83 cm |
| Height: | 24.817 cm |
| Weight: | 1.59 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 47 cm |
| Shipping Depth: | 15 cm |
| Shipping Height: | 30 cm |
| Shipping Weight: | 3.27 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
This solution is purposely designed to help retailers easily deploy a price checking experience with additional flexibility to support in-depth product information, endless aisle, wayfinding, BOPIS, loyalty, and more!
- High-performance computing and sleek edge-to-edge glass PCAP touchscreen
- Power-over-Ethernet and virtual GPS enable flexible installations and customized content delivery via applications
- You can deploy content and manage settings with EloView
- Modular design with flexible mounting in portrait, landscape and table-top orientation
The technical details come from 3rd party. edgemo is not responsible for any errors.
