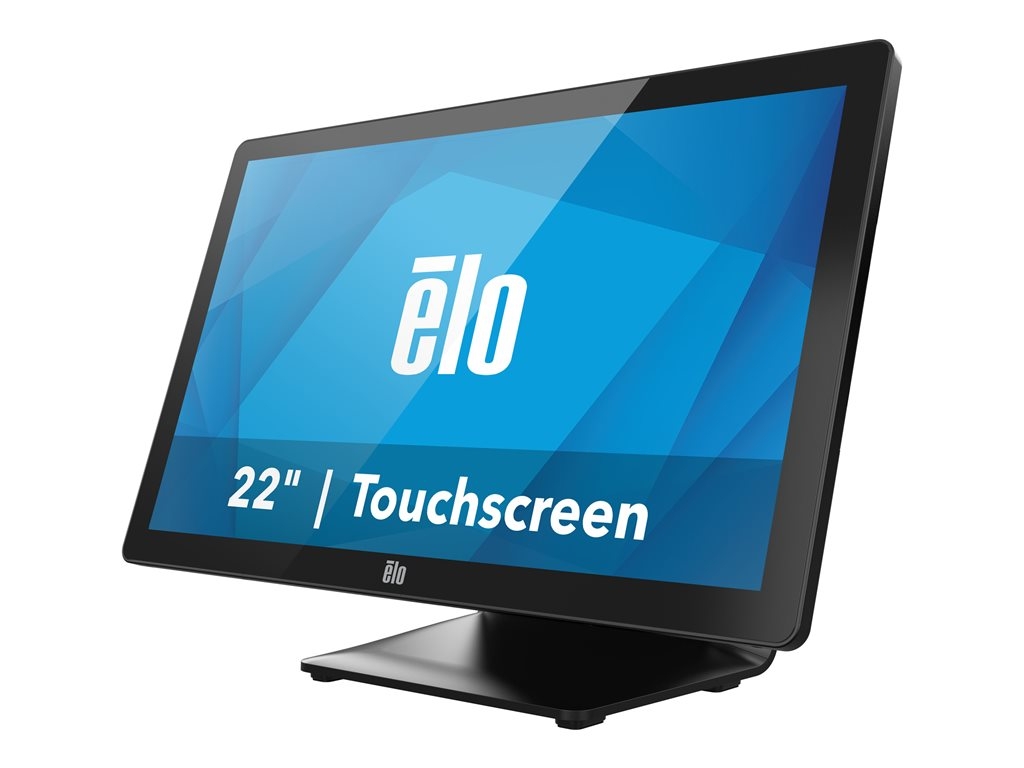

Printers & POSElo I-Series 3 - all-in-one Core i3 i3-1215UL 1.2 GHz - 8 GB - SSD 128 GB - LED 21.5"
SKU E707378
| Product Description: | Elo I-Series 3 - all-in-one Core i3 i3-1215UL 1.2 GHz - 8 GB - SSD 128 GB - LED 21.5" |
| Type: | Personal computer - all-in-one |
| Localisation: | Region: Worldwide |
| Processor: | Intel Core i3 (12th Gen) i3-1215UL / 1.2 GHz (up to 4.4 GHz, (6-core) |
| Processor Main Features: | Intel Turbo Boost Technology 2 |
| Cache Memory: | 10 MB |
| Cache Per Processor: | 10 MB |
- Specifications
- Description
| General | |
| Type: | Personal computer |
| Product Form Factor: | All-in-one |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour: | Black |
| Localisation: | Region: Worldwide |
| Processor / Chipset | |
| CPU: | Intel Core i3 (12th Gen) i3-1215UL |
| Clock Speed: | 1.2 GHz |
| Max Turbo Speed: | 4.4 GHz (P-core) / 2.5 GHz (E-core) |
| Number of Cores: | 6-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| Processor Main Features: | Intel Turbo Boost Technology 2 |
| Cache Memory | |
| Installed Size: | 10 MB |
| Cache Per Processor: | 10 MB |
| RAM | |
| Installed Size: | 8 GB (installed) / 32 GB (max) |
| Technology: | DDR5 SDRAM |
| Effective Memory Speed: | 4800 MHz |
| Rated Memory Speed: | 4800 MHz |
| Form Factor: | SO-DIMM 262-pin |
| Slots: | 2 (Total) / 1 (empty) |
| Configuration Features: | 1 x 8 GB |
| Hard Drive | |
| Type: | SSD - M.2 |
| Capacity: | 1 x 128 GB |
| Interface Type: | PCI Express |
| SSD Endurance: | 80 TB |
| Features: | NVM Express (NVMe) |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | LED |
| Touchscreen: | Yes (10-point multi-touch) |
| Diagonal Size: | 21.5" |
| Native Resolution: | 1920 x 1080 (Full HD) |
| V-Sync Rate at Max Res.: | 60 Hz |
| Widescreen Display: | Yes |
| Image Aspect Ratio: | 16:9 |
| Horizontal Viewing Angle: | +89 / -89 |
| Vertical Viewing Angle: | +89 / -89 |
| Response Time: | 14 ms |
| Image Brightness: | 250 cd/m² |
| Image Contrast Ratio: | 1000:1 |
| Monitor Features: | TouchPro Pro Projected Capacitive (PCAP) technology, 16.7 million colour depth, Zero-Bezel Design, anti-glare |
| Graphics Controller | |
| Graphics Processor: | Intel UHD Graphics |
| Audio Output | |
| Sound Output Mode: | Stereo |
| Speakers Included: | 2 x right / left channel |
| Networking | |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Expansion / Connectivity | |
| Interfaces: | 1 x headphones/microphone ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.0 ¦ 4 x USB 2.0 - micro-USB ¦ 1 x PoweredUSB (24 V) ¦ 2 x PoweredUSB (12 V) ¦ 1 x serial - RJ-50 (powered) ¦ 1 x cash drawer (12V/24 V) ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging) |
| Miscellaneous | |
| Included Accessories: | Mount screw, cable tie, stand |
| Cables Included: | RJ-50 to DB-9 cable |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| VESA Mounting Interface: | 100 x 100 mm, VESA |
| Compliant Standards: | cUL, UL, TUV, RCM, UKCA, CB, Argentina S-Mark, ANATEL, VCCI, MIC, Mexico NOM, CoC |
| Power | |
| Device Type: | Power adapter |
| Voltage Required: | AC 100/240 V (50/60 Hz) |
| Power Provided: | 180 Watt |
| Power Consumption Operational: | 42 Watt |
| Operating System / Software | |
| OS Provided: | Windows 10 IoT Enterprise 2021 LTSC |
| Sustainability Information | |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 8.0 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 52.58 cm |
| Depth: | 20.46 cm |
| Height: | 36.87 cm |
| Weight: | 10.1 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 64.5 cm |
| Shipping Depth: | 31.6 cm |
| Shipping Height: | 50.3 cm |
| Shipping Weight: | 12 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
Elo's I-Series 3 with Intel Touchscreen Computer delivers reliable, enterprise-grade security and performance powered by advanced processors. Designed with a sleek and durable fixed tablet form factor, the I-Series offers models that support Windows, ChromeOS Flex and Linux. The I-Series offers a modular platform with connectivity to support your accessories including a customer facing display, payment reader, printer, cash drawer, barcode scanner, scale and more. The I-Series with Intel delivers the durability needed to survive continuous public use.
- 10-point multi-touch screen with TouchPro PCAP technology
- Intel Core i3 processor with turbo boost up to 4.4 GHz
- 8 GB of DDR5 RAM for efficient multitasking
- Comprehensive connectivity with Gigabit Ethernet, Bluetooth 5.2, and USB 3.0
- ENERGY STAR certified for energy efficiency
The technical details come from 3rd party. edgemo is not responsible for any errors.
