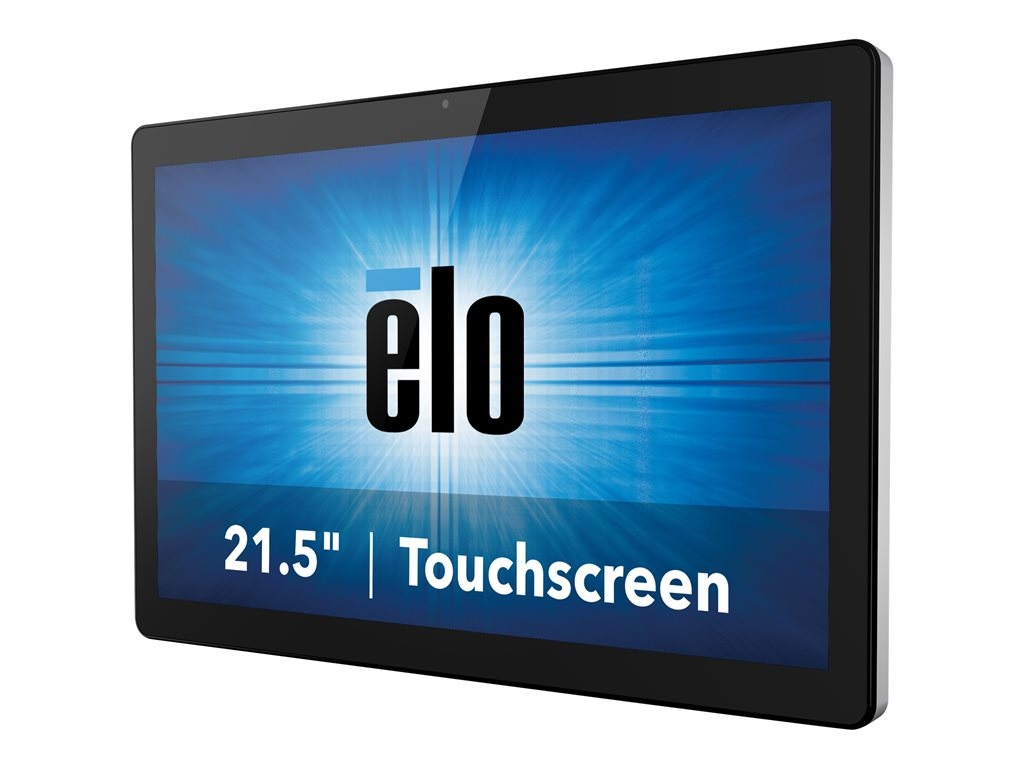

Elo I-Series 2.0 - Standard Version - all-in-one - Snapdragon 625 2 GHz - 3 GB - SSD 32 GB - LED 21.5"
SKU E614981
Product Description: | Elo I-Series 2.0 - Standard Version - all-in-one - Snapdragon 625 2 GHz - 3 GB - SSD 32 GB - LED 21.5" |
Type: | Android PC - all-in-one |
Processor: | 1 x Qualcomm Snapdragon 625 2 GHz (8-core) |
RAM: | 3 GB DDR3L SDRAM |
Hard Drive: | SSD 32 GB - eMMC - eMMC 5.1 |
Optical Storage: | No optical drive |
Card Reader: | Yes |
- Specifications
- Description
General | |
Type: | Android PC |
Product Form Factor: | All-in-one |
Colour: | White |
Image Colour Disclaimer: | The displayed product image may be a different colour |
Processor / Chipset | |
CPU: | Qualcomm Snapdragon 625 |
Clock Speed: | 2 GHz |
Number of Cores: | 8-core |
CPU Qty: | 1 |
RAM | |
Installed Size: | 3 GB |
Technology: | DDR3L SDRAM |
Hard Drive | |
Type: | SSD - eMMC |
Capacity: | 32 GB |
Features: | eMMC 5.1 |
Optical Storage | |
Type: | No optical drive |
Card Reader | |
Type: | Card reader |
Supported Flash Memory Cards: | microSD |
Monitor | |
Monitor Type: | LED |
Touchscreen: | Yes (10-point multi-touch) |
Diagonal Size: | 21.5" |
Native Resolution: | 1920 x 1080 (Full HD) |
Widescreen Display: | Yes |
Image Aspect Ratio: | 16:9 |
Horizontal Viewing Angle: | +89 / -89 |
Vertical Viewing Angle: | +89 / -89 |
Response Time: | 14 ms |
Image Brightness: | 250 cd/m² |
Image Contrast Ratio: | 1000:1 |
Monitor Features: | High Frame Rate Control (Hi-FRC), TouchPro Pro-F Projected Capacitive (PCAP) technology |
Graphics Controller | |
Video Interfaces: | HDMI |
Audio Output | |
Sound Output Mode: | Stereo |
Speakers Included: | 2 x right / left channel |
Camera | |
Camera: | Yes |
Resolution: | 1920 x 1080 |
Features: | Auto exposure, auto gain control |
Networking | |
Wireless LAN Supported: | Yes |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.1 |
Expansion / Connectivity | |
Interfaces: | 1 x Micro-HDMI ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x USB 3.0 ¦ 4 x USB - micro-USB |
Miscellaneous | |
VESA Mounting Interface: | 100 x 100 mm, 75 x 75 mm |
Compliant Standards: | UL, VCCI, BSMI, cUL, NOM, CB, CCC, IC, MIC, FCC, KCC, ANATEL, SRRC, EAC, China RoHS, RCM, BIS |
Power | |
Device Type: | Power adapter |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Consumption Operational: | 16 Watt |
Power Consumption Sleep: | 4 Watt |
Operating System / Software | |
OS Provided: | Android 7.1 (Nougat) |
Software: | EloView Portal |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years |
Dimensions & Weight | |
Width: | 52.39 cm |
Depth: | 32.39 cm |
Height: | 3.52 cm |
Weight: | 4.3 kg |
Dimensions & Weight (Shipping) | |
Shipping Width: | 18 cm |
Shipping Depth: | 40 cm |
Shipping Height: | 60 cm |
Shipping Weight: | 7.3 kg |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 20 - 80% |
Elo's newly upgraded I-Series 2.0 for Android combines commercial-grade reliability with the powerful Android Qualcomm Snapdragon processor. Delivering 2X the performance of its predecessor, the I-Series 2.0 brings it all with an integrated TouchPro PCAP 10-touch display, Android 7.1 (Nougat) and optional Power-over-Ethernet (POE) - all in a compact responsive AiO computer. Available in white and black, the AiO offers a variety of mounting options with the flexibility needed to survive the rigors of continuous public use for in-store interaction, point of sale, self-service, wayfinding, corporate and hospitality environments.
- Power-over-Ethernet and virtual GPS enable flexible installations and customized content delivery via applications
- Optimize deployments with cloud-based configuration, monitoring and scheduling
- Modern design with flexible mounting in portrait, landscape and table-top orientation
