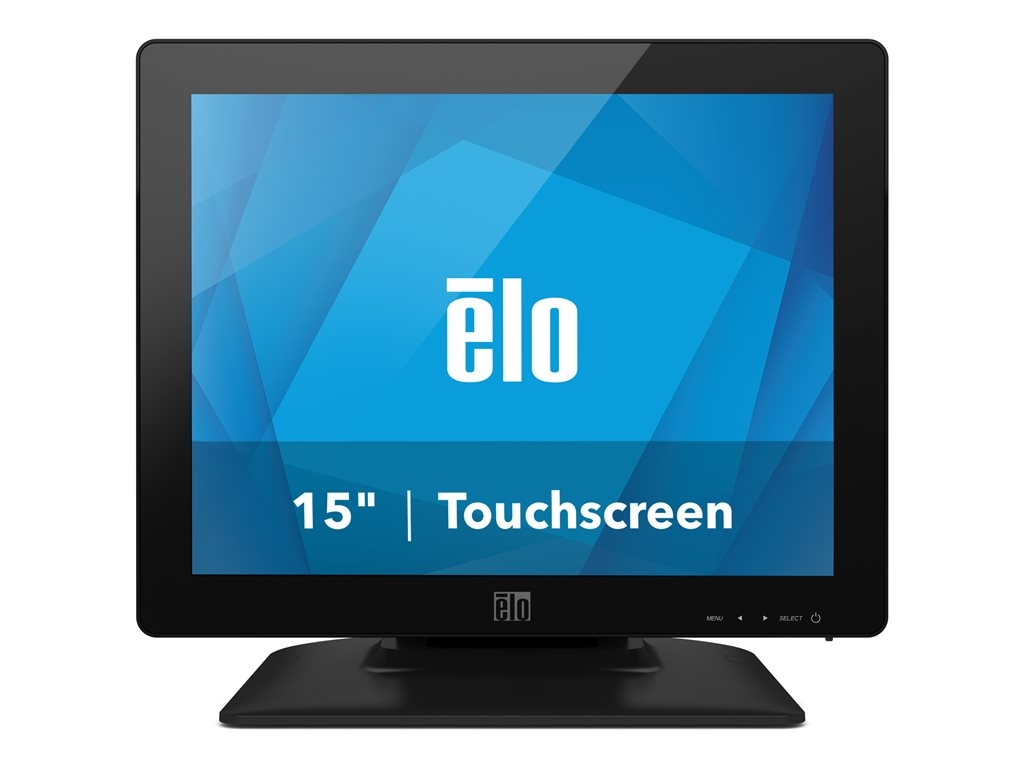

Printers & POSElo Desktop Touchmonitors 1523L iTouch Plus - LED monitor - 15"
SKU E394454
| Product Description: | Elo Desktop Touchmonitors 1523L iTouch Plus - LED monitor - 15" |
| Device Type: | LED-backlit LCD monitor - 15" - touchscreen |
| Features: | Touch-screen |
| Aspect Ratio: | 4:3 |
| Native Resolution: | 1024 x 768 at 75 Hz |
| Brightness: | 225 cd/m² |
| Contrast Ratio: | 700:1 |
- Specifications
- Description
| General | |
| Display Type: | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size: | 15" |
| Aspect Ratio: | 4:3 |
| Native Resolution: | 1024 x 768 at 75 Hz |
| Brightness: | 225 cd/m² |
| Contrast Ratio: | 700:1 |
| Colour Support: | 16.2 million colours |
| Response Time: | 25 ms |
| Vertical Refresh Rate: | 56 - 75 Hz |
| Horizontal Refresh Rate: | 31 - 80 KHz |
| Horizontal Viewing Angle: | 160 |
| Vertical Viewing Angle: | 140 |
| Backlight Technology: | LED backlight |
| Controls & Adjustments: | Mute, volume, brightness, contrast, H/V position, sharpness, colour temperature, phase, clock, aspect control |
| OSD Languages: | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features: | iTouch Surface Wave, anti-glare, integrated cable management |
| Colour: | Black |
| Dimensions (WxDxH): | 35.8 cm x 31.8 cm x 19.9 cm - with stand |
| Weight: | 4.44 kg |
| Audio | |
| Type: | Speakers - stereo - internal |
| Input | |
| Type: | Touch-screen - touchscreen |
| Movement Detection Technology: | Intellitouch SAW |
| Connectivity | |
| Interfaces: | VGA ¦ DVI-D ¦ 2 x USB |
| Mechanical | |
| Display Position Adjustments: | Tilt |
| VESA Mounting Interface: | 75 x 75 mm |
| Miscellaneous | |
| Features: | Security lock slot (cable lock sold separately), water-resistant, dust-resistant, iTouch Surface Acoustic Wave Technology |
| MTBF: | 50,000 hour(s) |
| Compliant Standards: | UL, VCCI, C-Tick, BSMI, cUL, VESA DPMS, CB, CCC, IC, FCC, RoHS, DDC, KCC, WEEE, E-Standby |
| Localisation: | Worldwide |
| Power | |
| Power Supply: | Internal |
| Input Voltage: | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical): | 12 Watt |
| Dimensions & Weight | |
| Dimensions & Weight Details: | With stand - width: 35.8 cm - depth: 31.8 cm - height: 19.9 cm - weight: 4.44 kg ¦ Without stand - weight: 2.65 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Elo Touch Solutions 1523L 15-inch touch-monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave (SAW) touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.
The 1523L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, connectivity incorporated within the monitor, and communication cables and side controls with lockout capability.
The 1523L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, connectivity incorporated within the monitor, and communication cables and side controls with lockout capability.
- Integrated peripheral options include a Magnetic Stripe Reader (MSR), RFID reader and webcam
- Integrated cable management
- iTouch Plus Surface Acoustic Wave (SAW) touchscreen technology couples zero-bezel design with multi-touch
- Dual position stand - single hinge with high/low settings and tilt functionality
- Desktop, wall or VESA mounting
- Internal speakers
The technical details come from 3rd party. edgemo is not responsible for any errors.
