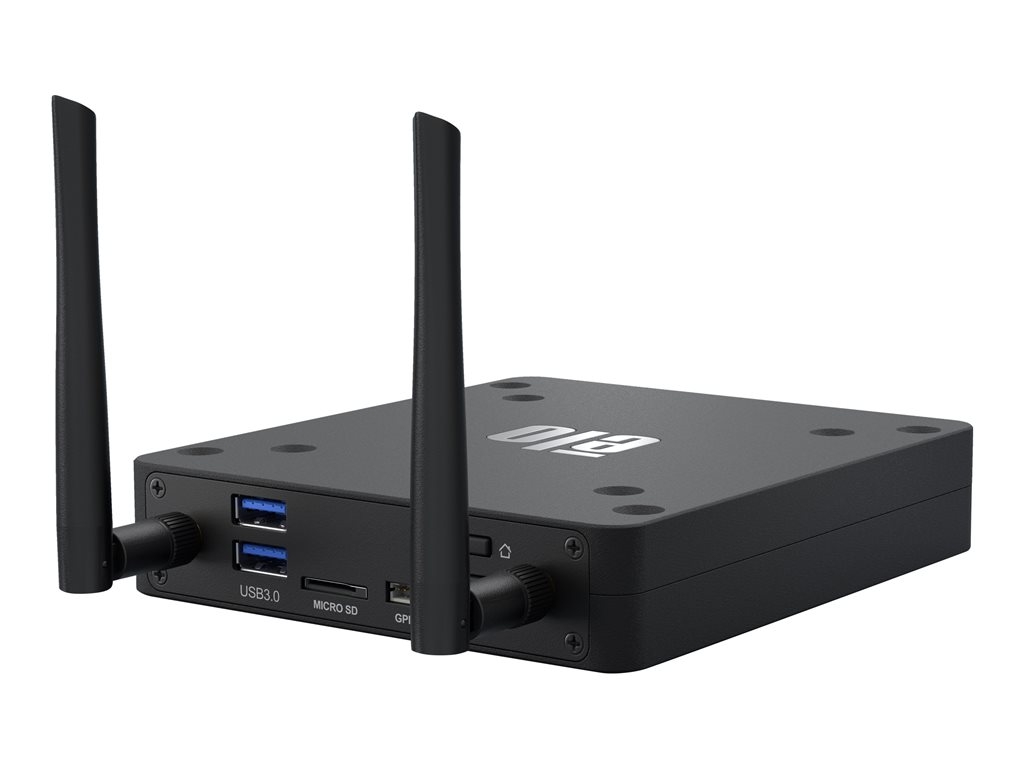

Printers & POSElo Backpack 4 - Standard - backpack PC Snapdragon 660 - 4 GB - flash 64 GB
SKU E393359
| Product Description: | Elo Backpack 4 - Standard - backpack PC Snapdragon 660 - 4 GB - flash 64 GB |
| Type: | Point of sale terminal - backpack PC |
| Processor: | 1 x Qualcomm Snapdragon 660 (8-core) |
| RAM: | 4 GB LPDDR4 SDRAM |
| Hard Drive: | Flash 64 GB |
| Optical Storage: | No optical drive |
| Card Reader: | Yes |
- Specifications
- Description
| General | |
| Type: | Point of sale terminal |
| Product Form Factor: | Backpack PC |
| Colour: | Black |
| Processor / Chipset | |
| CPU: | Qualcomm Snapdragon 660 |
| Number of Cores: | 8-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| RAM | |
| Installed Size: | 4 GB |
| Technology: | LPDDR4 SDRAM |
| Hard Drive | |
| Type: | Flash |
| Capacity: | 1 x 64 GB |
| Optical Storage | |
| Type: | No optical drive |
| Card Reader | |
| Type: | Card reader |
| Supported Flash Memory Cards: | microSD |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Video Interfaces: | HDMI, USB-C |
| Networking | |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Expansion / Connectivity | |
| Interfaces: | HDMI ¦ 4 x USB 3.0 ¦ 1 x USB-C ¦ 1 x GPIO ¦ 1 x LAN (Gigabit Ethernet) |
| Miscellaneous | |
| Included Accessories: | Power adapter, 2 x aerials |
| Compliant Standards: | UL, VCCI, cUL, CB, IC, MIC, FCC, RCM |
| Power | |
| Device Type: | Power adapter |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational: | 9.9 Watt |
| Power Consumption Stand by: | 0.4 Watt |
| Power Consumption Sleep: | 3.2 Watt |
| Operating System / Software | |
| OS Provided: | Android 10 |
| Software: | Google Mobile Services |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width: | 11.4 cm |
| Depth: | 13.9 cm |
| Height: | 2.54 cm |
| Weight: | 590 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 37.1 cm |
| Shipping Depth: | 21 cm |
| Shipping Height: | 6.2 cm |
| Shipping Weight: | 1.3 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Elo Backpack delivers a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps across your interactive experiences. Purpose-built to fit in compact spaces, the Elo Backpack boasts a small footprint in both size and weight and can secure to any counter or in a kiosk easily with the built-in 75 mm or 100 mm VESA mount.
The technical details come from 3rd party. edgemo is not responsible for any errors.
