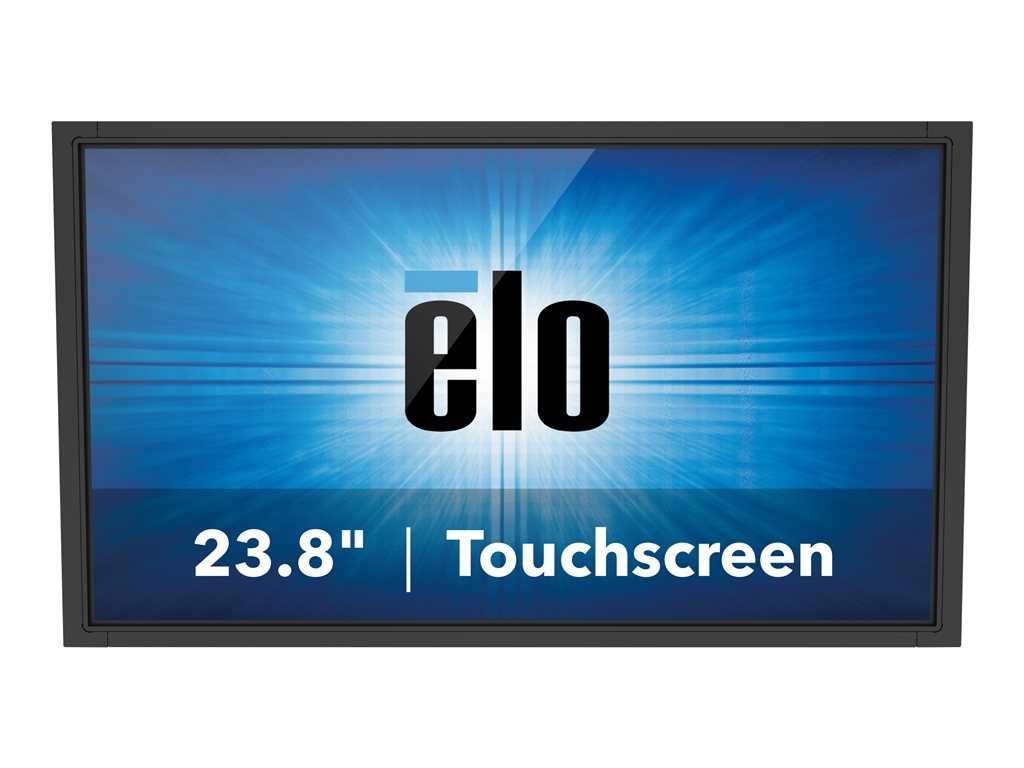

Printers & POSElo 2494L - 90-Series - LED monitor - Full HD (1080p) - 23.8"
SKU E329825
| Product Description: | Elo 2494L - 90-Series - LED monitor - Full HD (1080p) - 23.8" |
| Device Type: | LED-backlit LCD monitor - 23.8" - touchscreen |
| Energy Class: | Class B |
| Energy Consumption per Year: | 39 kWh |
| Power Consumption (On mode): | 27 W |
| Features: | Touch-screen |
| Aspect Ratio: | 16:9 |
- Specifications
- Description
| General | |
| Display Type: | LED-backlit LCD monitor / TFT active matrix |
| Energy Class: | Class B |
| Energy Consumption per Year: | 39 kWh |
| Diagonal Size: | 23.8" |
| Aspect Ratio: | 16:9 |
| Native Resolution: | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness: | 250 cd/m² |
| Brightness w/touchscreen: | 225 cd/m² |
| Contrast Ratio: | 3000:1 |
| Colour Support: | 16.7 million colours |
| Response Time: | 16 ms (tr - tf) |
| Vertical Refresh Rate: | 50 - 75 Hz |
| Horizontal Refresh Rate: | 30 - 82 kHz |
| Horizontal Viewing Angle: | +89 / -89 |
| Vertical Viewing Angle: | +89 / -89 |
| Backlight Technology: | LED backlight |
| Features: | Remote OSD, IntelliTouch Surface Acoustic Wave |
| Colour: | Black |
| Dimensions (WxDxH): | 56.24 cm x 4.17 cm x 32.66 cm |
| Weight: | 6.39 kg |
| Input | |
| Type: | Touch-screen - touchscreen |
| Movement Detection Technology: | Intellitouch SAW |
| Connectivity | |
| Interfaces: | USB (Type B) ¦ VGA ¦ DisplayPort ¦ Management (RJ-45) ¦ HDMI |
| Mechanical | |
| VESA Mounting Interface: | 200 x 100 mm |
| Miscellaneous | |
| Cables Included: | 1 x VGA cable ¦ 1 x USB cable ¦ 1 x HDMI cable |
| Mounting Kit: | Included |
| MTBF: | 50,000 hours |
| Compliant Standards: | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IMERC |
| Localisation: | Worldwide |
| Power | |
| Power Consumption (On mode): | 27 W |
| Power Consumption (Typical): | 27.3 Watt |
| Power Consumption Sleep: | 1.5 Watt |
| Power Consumption (Off Mode): | 0.5 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Elo 2494L 23.8-inch open-frame touch display features a thin and compact state-of-the-art design, with energy-saving and low-heat LED panels. Available with IntelliTouch (SAW) or TouchPro (PCAP) touch technologies, the 2494L offers the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.
Featuring a brilliant wide viewing angle panel, Elo's open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for integrating in any table, kiosk, or cabinet design. With proven Elo expertise and reliability built in, the industrial-grade displays provide outstanding image clarity and light transmissivity as well as stable, drift-free operation for accurate touch responses.
Featuring a brilliant wide viewing angle panel, Elo's open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for integrating in any table, kiosk, or cabinet design. With proven Elo expertise and reliability built in, the industrial-grade displays provide outstanding image clarity and light transmissivity as well as stable, drift-free operation for accurate touch responses.
- Viewing angle of 178°(h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- Touchscreen sealed against dirt, dust and liquids
- PCAP 2GS (two glass solution) offers pristine optical clarity and touch durability
- 10 touch projected capacitive (PCAP) with Thru-glass capabilities that passes UL-60950 & IK-07 Impact testing
- Display Port and VGA video interfaces
The technical details come from 3rd party. edgemo is not responsible for any errors.
