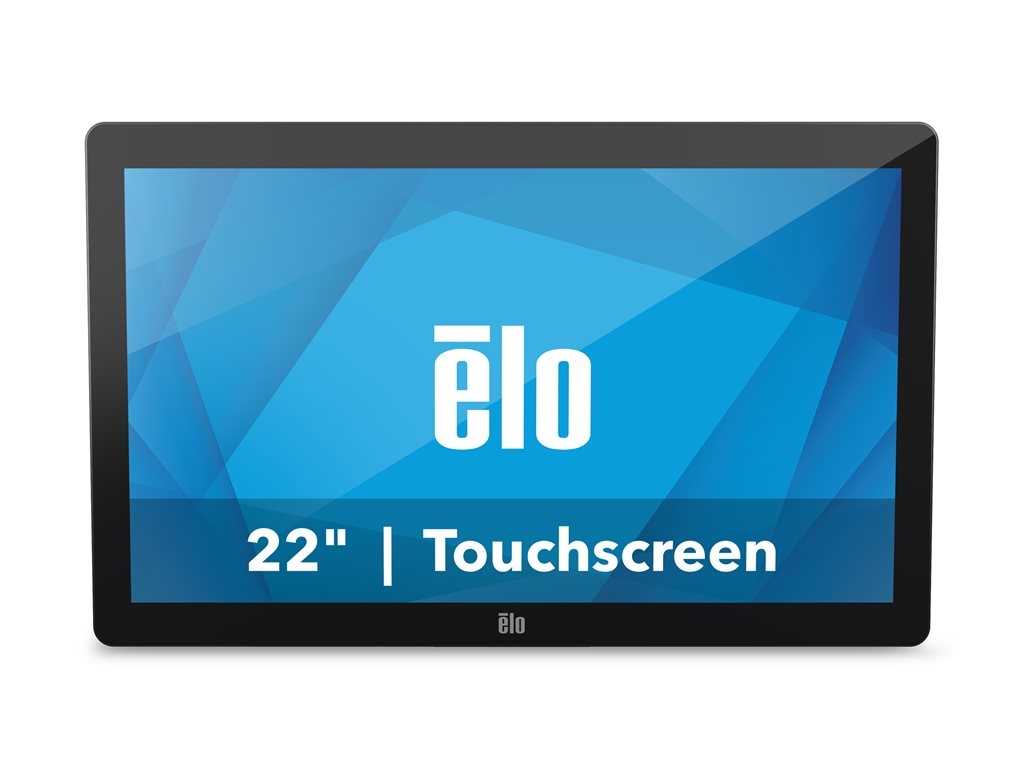

Printers & POSElo 2202L - LCD monitor - Full HD (1080p) - 22"
SKU E351600
| Product Description: | Elo 2202L - LCD monitor - Full HD (1080p) - 22" |
| Device Type: | LCD monitor - 22" - touchscreen |
| Energy Class: | Class F |
| Features: | Touch-screen, USB Hub |
| Aspect Ratio: | 16:9 |
| Native Resolution: | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness: | 250 cd/m² |
- Specifications
- Description
| General | |
| Display Type: | LCD monitor / TFT active matrix |
| Energy Class: | Class F |
| Diagonal Size: | 22" |
| Viewable Size: | 21.5" |
| Built-in Devices: | USB Hub |
| Aspect Ratio: | 16:9 |
| Native Resolution: | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness: | 250 cd/m² |
| Brightness w/touchscreen: | 240 cd/m² |
| Contrast Ratio: | 3000:1 |
| Colour Support: | 16.7 million colours |
| Response Time: | 25 ms (tr - tf) |
| Vertical Refresh Rate: | 50 - 75 Hz |
| Horizontal Refresh Rate: | 30 - 82 kHz |
| Horizontal Viewing Angle: | +89 / -89 |
| Vertical Viewing Angle: | +89 / -89 |
| OSD Languages: | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Russian, Spanish, Japanese, Korean |
| Features: | TouchPro technology |
| Colour: | Black |
| Dimensions (WxDxH): | 52.69 cm x 19.34 cm x 38.38 cm - with stand |
| Weight: | 6.8 kg |
| Audio | |
| Type: | Speakers - stereo |
| Output Power / Channel: | 2 Watt |
| Input | |
| Type: | Touch-screen - touchscreen |
| Movement Detection Technology: | Projected capacitive |
| Connectivity | |
| Interfaces: | HDMI ¦ VGA ¦ Headphones ¦ USB (Type B) ¦ USB 2.0 (Type A) ¦ 4 x Micro-USB |
| Mechanical | |
| VESA Mounting Interface: | 100 x 100 mm |
| Miscellaneous | |
| Features: | Security lock slot (cable lock sold separately) |
| Included Accessories: | 3 cable ties |
| Cables Included: | 1 x VGA cable ¦ 1 x HDMI cable ¦ 1 x USB cable ¦ 1 x audio cable |
| MTBF: | 50,000 hours |
| Compliant Standards: | UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, IPX1, EAC, RCM, CoC |
| Security Slot Type: | Kensington security slot |
| Power | |
| Input Voltage: | AC 120/230 V (50/60 Hz) |
| Power Consumption SDR (On mode): | 16 kWh/1000h |
| Power Consumption (Typical): | 22.5 Watt |
| Power Consumption Sleep: | 0.8 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 61.7 cm |
| Shipping Depth: | 26 cm |
| Shipping Height: | 47.7 cm |
| Shipping Weight: | 10.8 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Elo 2202L 22-inch touchscreen monitor delivers a professional-grade interactive solution with Elo's industry-leading TouchPro PCAP technology featuring edge-to-edge glass and enabling up to 10 simultaneous touches. The clear glass touchscreen provides exceptional image clarity, resolution, and light transmission for vivid images and details. The feature rich touchscreen monitor is equipped with dual built-in speakers and VGA and HDMI video connectors. With a compact form factor, clean design aesthetic and flexible mounting options, these touchscreens are well-suited for POS, interactive digital signage and self-service.
The technical details come from 3rd party. edgemo is not responsible for any errors.
