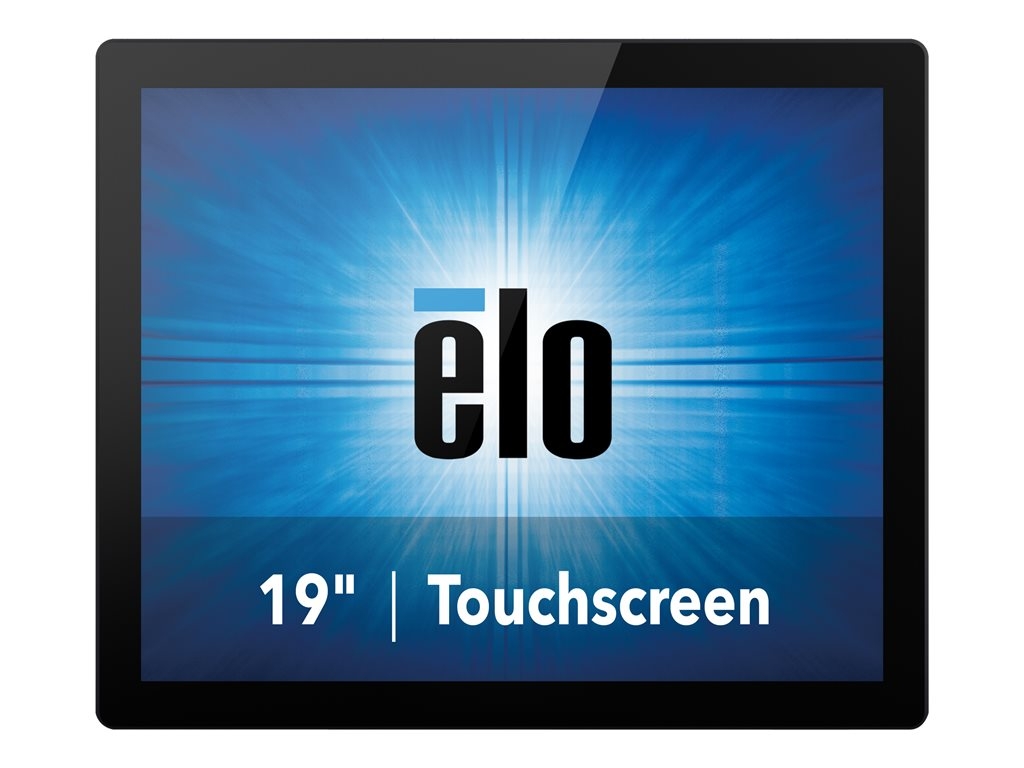

Printers & POSElo 1991L - 90-Series - LED monitor - 19"
SKU E331019
| Product Description: | Elo 1991L - 90-Series - LED monitor - 19" |
| Device Type: | LED-backlit LCD monitor - 19" - touchscreen |
| Energy Class: | Class A |
| Energy Consumption per Year: | 28 kWh |
| Power Consumption (On mode): | 19 W |
| Features: | Touch-screen |
| Aspect Ratio: | 5:4 |
- Specifications
- Description
| General | |
| Display Type: | LED-backlit LCD monitor / TFT active matrix |
| Energy Class: | Class A |
| Energy Consumption per Year: | 28 kWh |
| Diagonal Size: | 19" |
| Aspect Ratio: | 5:4 |
| Native Resolution: | 1280 x 1024 at 60 Hz |
| Brightness: | 250 cd/m² |
| Brightness w/touchscreen: | 225 cd/m² |
| Contrast Ratio: | 1000:1 |
| Colour Support: | 16.7 million colours |
| Response Time: | 14 ms (tr - tf) |
| Vertical Refresh Rate: | 50 - 75 Hz |
| Horizontal Refresh Rate: | 30 - 82 kHz |
| Horizontal Viewing Angle: | +89 / -89 |
| Vertical Viewing Angle: | +89 / -89 |
| Backlight Technology: | LED backlight |
| OSD Languages: | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features: | Remote OSD, Zero-Bezel Design, Projected Capacitive Touch (P-CAP) technology |
| Colour: | Black |
| Dimensions (WxDxH): | 42.01 cm x 4.07 cm x 34.81 cm |
| Weight: | 4.6 kg |
| Input | |
| Type: | Touch-screen - touchscreen |
| Movement Detection Technology: | Projected capacitive |
| Connectivity | |
| Interfaces: | USB (Type B) ¦ VGA ¦ DisplayPort ¦ Management (RJ-45) ¦ HDMI |
| Mechanical | |
| VESA Mounting Interface: | 100 x 100 mm |
| Miscellaneous | |
| Cables Included: | 1 x VGA cable ¦ 1 x USB cable ¦ 1 x HDMI cable |
| Mounting Kit: | Included |
| MTBF: | 50,000 hours |
| Compliant Standards: | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IMERC |
| Localisation: | Worldwide |
| Power | |
| Power Consumption (On mode): | 19 W |
| Power Consumption (Typical): | 17 Watt |
| Power Consumption Sleep: | 1.5 Watt |
| Power Consumption (Off Mode): | 0.5 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Elo 1991L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1991L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
- Viewing angle of 178° x 178°, for sharp colors and graphics in both portrait and landscape modes
- Touchscreen sealed against dirt, dust and liquids
- PCAP 2GS (two glass solution) offers pristine optical clarity and touch durability
- 10 touch projected capacitive (PCAP) with Thru-glass capabilities
- Display Port and VGA video interfaces
