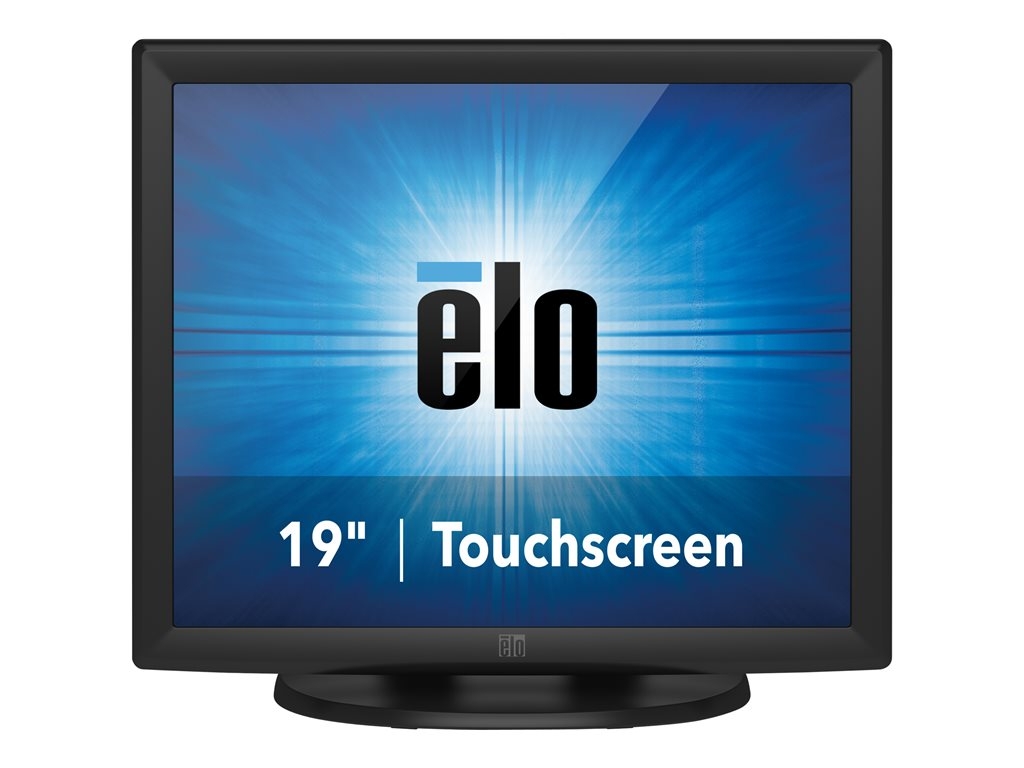

Elo 1915L IntelliTouch - LED monitor - 19"

SKU E266835
Product Description:Elo 1915L IntelliTouch - LED monitor - 19"
Device Type:LED-backlit LCD monitor - 19" - touchscreen
Features:Touch-screen
Native Resolution:1280 x 1024 at 75 Hz
Brightness:225 cd/m²
Contrast Ratio:1000:1
Response Time:5 ms
23-07-2024
  • Specifications
  • Description
General
Display Type:LED-backlit LCD monitor / TFT active matrix
Diagonal Size:19"
Native Resolution:1280 x 1024 at 75 Hz
Brightness:225 cd/m²
Contrast Ratio:1000:1
Colour Support:16.7 million colours
Response Time:5 ms
Vertical Refresh Rate:56.3 - 75 Hz
Horizontal Refresh Rate:31.5 - 80 kHz
Horizontal Viewing Angle:+85 / -85
Vertical Viewing Angle:+80 / -80
Backlight Technology:LED backlight
Controls & Adjustments:Brightness, contrast, H/V position, colour temperature, phase, clock
OSD Languages:English, German, French, Spanish, Japanese
Features:IntelliTouch Surface Wave, anti-glare, OSD lock
Colour:Dark grey
Dimensions (WxDxH):42.9 cm x 20.7 cm x 37.9 cm
Weight:7.9 kg
Input
Type:Touch-screen - touchscreen
Movement Detection Technology:Intellitouch SAW
Connectivity
Interfaces:VGA ¦ Serial ¦ USB
Interfaces:1 x VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type A
Mechanical
VESA Mounting Interface:100 x 100 mm
Miscellaneous
Features:Water-resistant, wall mountable, dust-resistant, dirt resistant, Flexible Mounting Profile, mounting holes, security lock
Cables Included:1 x VGA cable - 1.8 m ¦ 1 x USB cable - USB Type A to B - 1.83 m
MTBF:50,000 hour(s)
Compliant Standards:FCC Class B certified, IC Class B, UL, TUV GS, VCCI Class B ITE, cUL, C-Tick Class B, RoHS
Localisation:EMEA, Americas
Power
Power Supply:Internal
Input Voltage:AC 120/230 V (50/60 Hz)
Power Consumption (Typical):23 Watt
Power Consumption Sleep:1.19 Watt
Power Consumption (Off Mode):0.63 Watt
Dimensions & Weight (Shipping)
Shipping Width:54 cm
Shipping Depth:28.5 cm
Shipping Height:49.5 cm
Shipping Weight:11.7 kg
Manufacturer Warranty
Service & Support:Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:20 - 80%
vis mere
The 1915L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. This compact touchmonitor is "designed for touch" from the ground up, with Elo expertise and reliability built in. The 1915L desktop touchmonitor with Elo's IntelliTouch surface acoustic wave technology has a dual serial/USB touch interface, offers pure glass image quality and continues to function even if scratched.
  • Entry-level monitor with Elo quality
  • Designed for touch with features such as a stable tilt stand
  • Long-lasting product cycle
  • Sealed touchscreen
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Worldwide agency approvals




The technical details come from 3rd party. edgemo is not responsible for any errors.
