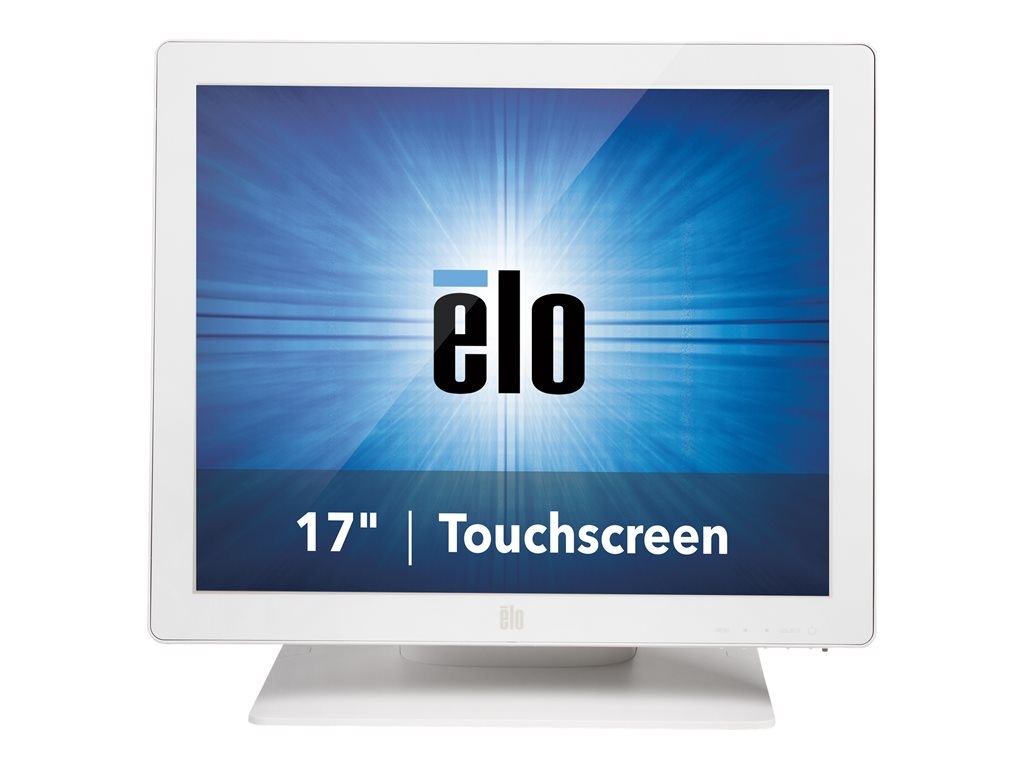

Printers & POSElo 1723L - LED monitor - 17"
SKU E016808
| Product Description: | Elo 1723L - LED monitor - 17" |
| Device Type: | LED-backlit LCD monitor - 17" - touchscreen |
| Features: | Touch-screen, USB Hub |
| Aspect Ratio: | 5:4 |
| Native Resolution: | 1280 x 1024 at 75 Hz |
| Brightness: | 250 cd/m² |
| Contrast Ratio: | 800:1 |
- Specifications
- Description
| General | |
| Display Type: | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size: | 17" |
| Built-in Devices: | USB Hub |
| Aspect Ratio: | 5:4 |
| Native Resolution: | 1280 x 1024 at 75 Hz |
| Brightness: | 250 cd/m² |
| Brightness w/touchscreen: | 215 cd/m² |
| Contrast Ratio: | 800:1 |
| Colour Support: | 16.7 million colours |
| Response Time: | 30 ms |
| Vertical Refresh Rate: | 56 - 75 Hz |
| Horizontal Refresh Rate: | 31 - 80 KHz |
| Horizontal Viewing Angle: | 170 |
| Vertical Viewing Angle: | 160 |
| Backlight Technology: | LED backlight |
| Controls & Adjustments: | Mute, volume, brightness, contrast, H/V position, sharpness, colour temperature, phase, clock, aspect control |
| OSD Languages: | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features: | Anti-glare, IntelliTouch Pro |
| Colour: | White |
| Dimensions (WxDxH): | 39.19 cm x 20.94 cm x 36.07 cm - with stand |
| Weight: | 5.21 kg |
| Audio | |
| Type: | Speakers - stereo |
| Output Power / Channel: | 2 Watt |
| Input | |
| Type: | Touch-screen - touchscreen |
| Movement Detection Technology: | Projected capacitive |
| Connectivity | |
| Interfaces: | VGA ¦ DVI-D ¦ 2 x USB (Type A) ¦ USB (Type B) ¦ USB upstream (Type B) |
| Mechanical | |
| Display Position Adjustments: | Height, tilt |
| Tilt Angle: | -5/+90 |
| VESA Mounting Interface: | 75 x 75 mm |
| Miscellaneous | |
| Features: | Security lock slot (cable lock sold separately) |
| Included Accessories: | Cable management clip |
| Cables Included: | 1 x VGA cable - VGA to VGA ¦ 1 x DVI cable - DVI-D to DVI-D ¦ 1 x audio cable ¦ 1 x USB cable - USB Type A to B |
| MTBF: | 50,000 hour(s) |
| Compliant Standards: | Plug and Play, UL, VCCI, C-Tick, BSMI, cUL, VESA DPMS, CB, CCC, IC, FCC, RoHS, KCC, WEEE, E-Standby, China RoHS, CoC |
| Power | |
| Input Voltage: | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical): | 22 Watt |
| Power Consumption Sleep: | 2 Watt |
| Dimensions & Weight | |
| Dimensions & Weight Details: | Without stand - width: 39.19 cm - depth: 4.95 cm - height: 32.72 cm - weight: 3.56 kg ¦ With stand - width: 39.19 cm - depth: 20.94 cm - height: 36.07 cm - weight: 5.21 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Elo 1723L 17-inch standard format touchscreen monitor meets the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1723L brings a clean, modern feel to any environment. The zero-bezel monitor is available in both black or white with Elo's industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
The 1723L has been designed for touch from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.
The 1723L has been designed for touch from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.
- Integrated peripheral options include a Magnetic Stripe Reader (MSR), RFID reader and webcam
- Integrated cable management
- iTouch Plus surface acoustic wave (SAW) touchscreen couples zero-bezel design with multi-touch functionality
- Dual position stand - single hinge with high/low settings and tilt functionality
- Desktop, wall or VESA mounting
- Internal speakers
The technical details come from 3rd party. edgemo is not responsible for any errors.
