Printers & POSElo 1598L - Rev A - LED monitor - 15"
SKU E126407
| Product Description: | Elo 1598L - Rev A - LED monitor - 15" |
| Device Type: | LED-backlit LCD monitor - 15" - touchscreen |
| Energy Class: | Class B |
| Energy Consumption per Year: | 23 kWh |
| Power Consumption (On mode): | 16 W |
| Aspect Ratio: | 4:3 |
| Native Resolution: | 1024 x 768 at 60 Hz |
- Specifications
- Description
| General | |
| Display Type: | LED-backlit LCD monitor / TFT active matrix |
| Energy Class: | Class B |
| Energy Consumption per Year: | 23 kWh |
| Diagonal Size: | 15" |
| Aspect Ratio: | 4:3 |
| Native Resolution: | 1024 x 768 at 60 Hz |
| Brightness: | 500 cd/m² |
| Brightness w/touchscreen: | 400 cd/m² |
| Contrast Ratio: | 1500:1 |
| Colour Support: | 16.2 million colours |
| Response Time: | 35 ms |
| Vertical Refresh Rate: | 50 - 75 Hz |
| Horizontal Refresh Rate: | 30 - 60 kHz |
| Horizontal Viewing Angle: | +85 / -85 |
| Vertical Viewing Angle: | +85 / -85 |
| Backlight Technology: | LED backlight |
| OSD Languages: | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features: | AccuTouch Five-Wire Resistive |
| Colour: | Black |
| Dimensions (WxDxH): | 33.64 cm x 4.19 cm x 26.44 cm |
| Weight: | 2.9 kg |
| Input | |
| Type: | Touchscreen |
| Connectivity | |
| Interfaces: | HDMI ¦ VGA (DB-15) ¦ DisplayPort ¦ Serial (DB-9) ¦ USB ¦ Management |
| Miscellaneous | |
| Included Accessories: | Remote control |
| Cables Included: | 1 x HDMI cable ¦ 1 x USB cable ¦ 1 x VGA cable |
| Mounting Kit: | Included |
| MTBF: | 50,000 hours |
| Compliant Standards: | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IMERC |
| Power | |
| Input Voltage: | AC 100 - 240 V (50/60 Hz) |
| Power Consumption (On mode): | 16 W |
| Power Consumption (Typical): | 14.1 Watt |
| Power Consumption Sleep: | 1.5 Watt |
| Power Consumption (Off Mode): | 0.5 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |

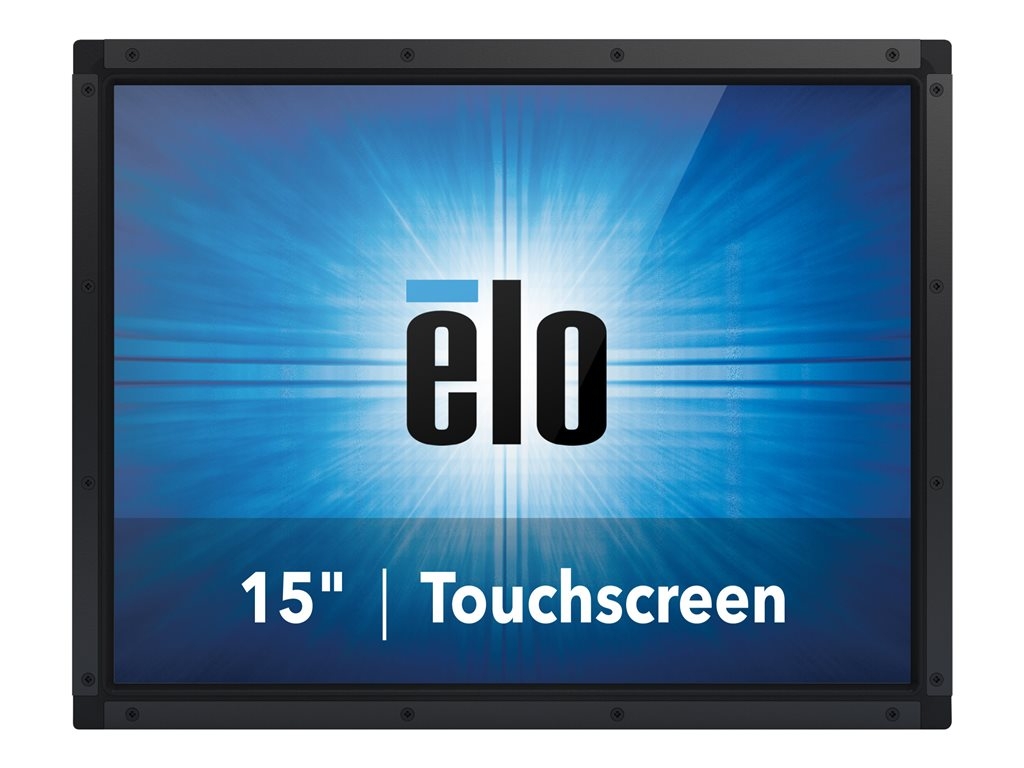

The Elo 1598L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 1598L includes a 500 nit high bright display and extended temperature range to 50° C (122° F) making it ideal for factory automation and other instrumentation control applications. With an optional 24 VDC converter kit included with the unit, manufacturers can leverage a common 24V power supply in their design with a single AC connection. This compact touch display is designed for touch with proven Elo expertise and provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
- Easily integrated
- Touch ready
The technical details come from 3rd party. edgemo is not responsible for any errors.
