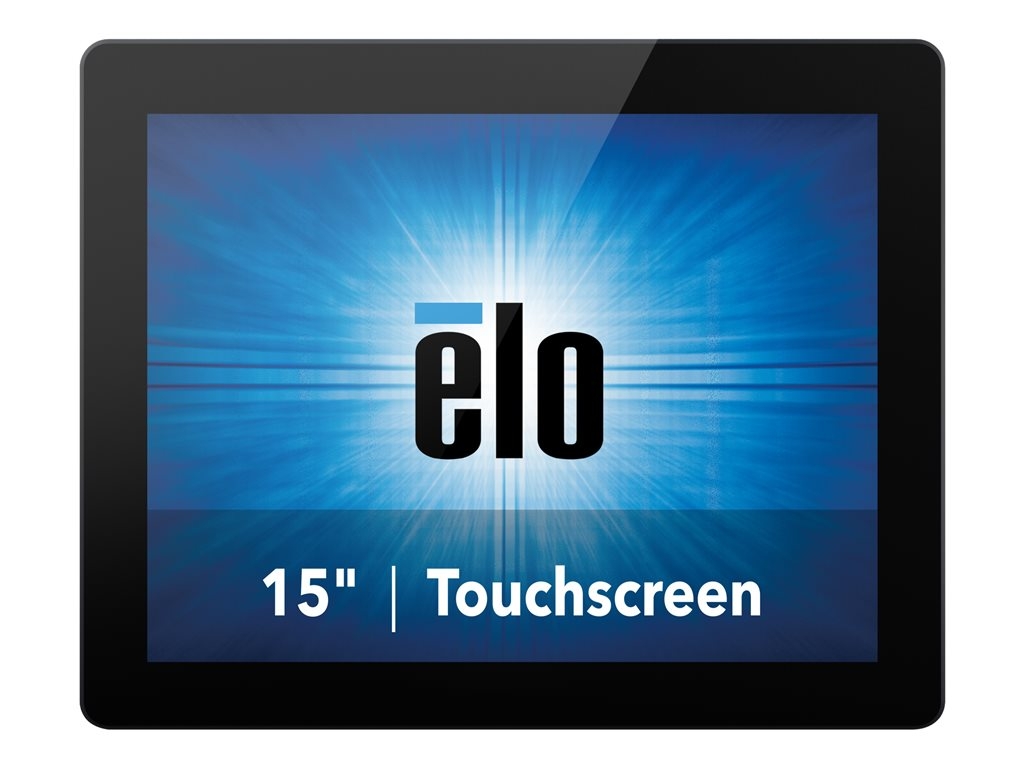

Printers & POSElo 1590L - 90-Series - LED monitor - 15"
SKU E334335
| Product Description: | Elo 1590L - 90-Series - LED monitor - 15" |
| Device Type: | LED-backlit LCD monitor - 15" - touchscreen |
| Energy Class: | Class B |
| Energy Consumption per Year: | 21 kWh |
| Power Consumption (On mode): | 14 W |
| Features: | Touch-screen |
| Aspect Ratio: | 4:3 |
- Specifications
- Description
| General | |
| Display Type: | LED-backlit LCD monitor / TFT active matrix |
| Energy Class: | Class B |
| Energy Consumption per Year: | 21 kWh |
| Diagonal Size: | 15" |
| Aspect Ratio: | 4:3 |
| Native Resolution: | 1024 x 768 at 75 Hz |
| Brightness: | 250 cd/m² |
| Brightness w/touchscreen: | 225 cd/m² |
| Contrast Ratio: | 700:1 |
| Colour Support: | 16.2 million colours |
| Response Time: | 16 ms (tr - tf) |
| Vertical Refresh Rate: | 50 - 75 Hz |
| Horizontal Refresh Rate: | 30 - 60 kHz |
| Horizontal Viewing Angle: | +80 / -80 |
| Vertical Viewing Angle: | +70 / -70 |
| Backlight Technology: | LED backlight |
| Features: | Remote OSD, Projected Capacitive Touch (P-CAP) technology |
| Colour: | Black |
| Dimensions (WxDxH): | 35.8 cm x 3.56 cm x 28.49 cm |
| Weight: | 2.9 kg |
| Input | |
| Type: | Touch-screen - touchscreen |
| Movement Detection Technology: | Projected capacitive |
| Connectivity | |
| Interfaces: | VGA ¦ DisplayPort ¦ USB (Type B) ¦ Management (RJ-45) ¦ HDMI |
| Mechanical | |
| VESA Mounting Interface: | 100 x 100 mm, 75 x 75 mm |
| Miscellaneous | |
| Cables Included: | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit: | Included |
| MTBF: | 50,000 hours |
| Compliant Standards: | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IMERC |
| Localisation: | Worldwide |
| Power | |
| Power Consumption (On mode): | 14 W |
| Power Consumption (Typical): | 12.5 Watt |
| Power Consumption Sleep: | 1.5 Watt |
| Power Consumption (Off Mode): | 0.5 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
- Slim design
- Efficient and durable
- Outstanding image clarity
- Accurate touch response
The technical details come from 3rd party. edgemo is not responsible for any errors.
