Printers & POSElo 1517L iTouch Zero-Bezel - LED monitor - 15"
SKU E829550

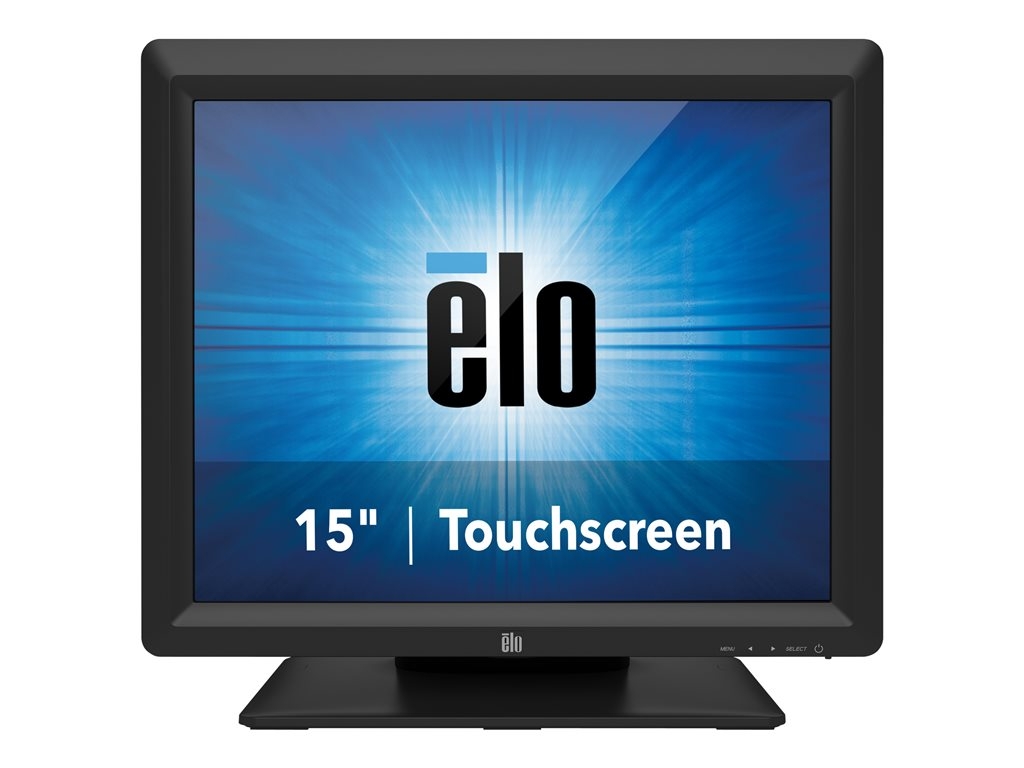

| Product Description: | Elo 1517L iTouch Zero-Bezel - LED monitor - 15" |
| Device Type: | LED-backlit LCD monitor - 15" - touchscreen |
| Features: | Touch-screen |
| Aspect Ratio: | 4:3 |
| Native Resolution: | 1024 x 768 at 75 Hz |
| Brightness: | 300 cd/m² |
| Contrast Ratio: | 800:1 |
- Specifications
- Description
| General | |
| Display Type: | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size: | 15" |
| Aspect Ratio: | 4:3 |
| Native Resolution: | 1024 x 768 at 75 Hz |
| Brightness: | 300 cd/m² |
| Brightness w/touchscreen: | 270 cd/m² |
| Contrast Ratio: | 800:1 |
| Colour Support: | 16.2 million colours |
| Response Time: | 23 ms |
| Horizontal Viewing Angle: | +80 / -80 |
| Vertical Viewing Angle: | +70 / -70 |
| Backlight Technology: | LED backlight |
| Controls & Adjustments: | Brightness, contrast, H/V position, sharpness, colour balance, colour temperature, phase, clock, aspect control |
| OSD Languages: | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features: | iTouch Surface Wave |
| Colour: | Black |
| Dimensions (WxDxH): | 35.8 cm x 19.7 cm x 31.9 cm - with stand |
| Weight: | 4.3 kg |
| Input | |
| Type: | Touch-screen - touchscreen |
| Movement Detection Technology: | Surface acoustic wave |
| Connectivity | |
| Interfaces: | Serial ¦ USB ¦ VGA |
| Mechanical | |
| VESA Mounting Interface: | 75 x 75 mm |
| Miscellaneous | |
| Features: | Security lock slot (cable lock sold separately), iTouch Surface Acoustic Wave Technology |
| MTBF: | 50,000 hour(s) |
| Compliant Standards: | UL, VCCI, C-Tick, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, S Mark, China RoHS |
| Localisation: | Worldwide |
| Power | |
| Input Voltage: | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical): | 10.5 Watt |
| Power Consumption Stand by: | 0.92 Watt |
| Power Consumption Sleep: | 0.5 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Elo 1517L 15-inch standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look coupled with a retail-focused feature set makes it an attractive solution for commercial touchscreen monitor needs. The 1517L, offered in white or black, is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems.
The touchscreen monitor offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
The touchscreen monitor offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
- Sleek and thin design with "built for touch" reliability
- Flexible and space-saving
- 60% energy savings using LED technology
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface
- 15" diagonal active matrix TFT LED-backlit LCD
- 4:3 aspect ratio
- 1024 x 768 native resolution
- USB and RS232 serial connections
The technical details come from 3rd party. edgemo is not responsible for any errors.
