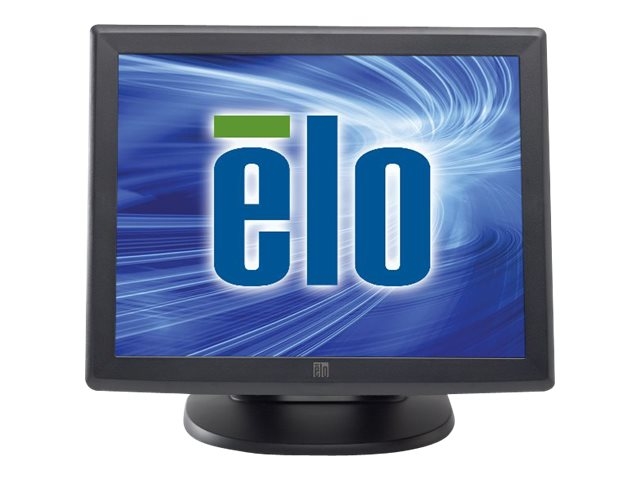

Elo 1515L IntelliTouch - LCD monitor - 15"

SKU E399324
Product Description:Elo 1515L IntelliTouch - LCD monitor - 15"
Device Type:LCD monitor - 15" - touchscreen
Features:Touch-screen
Aspect Ratio:4:3
Native Resolution:1024 x 768 at 75 Hz
Brightness:225 cd/m²
Contrast Ratio:500:1
11-07-2024
  • Specifications
  • Description
General
Display Type:LCD monitor / TFT active matrix
Diagonal Size:15"
Aspect Ratio:4:3
Native Resolution:1024 x 768 at 75 Hz
Brightness:225 cd/m²
Contrast Ratio:500:1
Colour Support:16.7 million colours
Response Time:11.7 ms
Vertical Refresh Rate:75 Hz
Horizontal Refresh Rate:60.2 kHz
Horizontal Viewing Angle:+65 / -65
Vertical Viewing Angle:+55 / -65
Screen Coating:Anti-glare
Controls & Adjustments:Brightness, contrast, H/V position, colour temperature, phase, clock
OSD Languages:English, German, French, Spanish, Japanese
Features:IntelliTouch Surface Wave, Sync on Green
Colour:Dark grey
Dimensions (WxDxH):35 cm x 17.5 cm x 31 cm
Weight:4.8 kg
Input
Type:Touch-screen - touchscreen
Movement Detection Technology:Surface acoustic wave
Connectivity
Interfaces:1 x VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B
Mechanical
VESA Mounting Interface:75 x 75 mm
Miscellaneous
Features:Security lock slot (cable lock sold separately), wall mountable
Cables Included:1 x VGA cable ¦ 1 x serial cable ¦ 1 x USB cable
Backlight Life:30,000 hours
MTBF:50,000 hour(s)
Compliant Standards:UL, VCCI, C-Tick, cUL, MPR III, SEMKO, IC, FCC, RoHS
Power
Power Supply:Internal
Input Voltage:AC 120/230 V (50/60 Hz)
Power Consumption (Typical):30 Watt
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:20 - 80%
vis mere
The Elo Touch Solutions 1515L touchmonitor is designed, developed and built to provide a cost-effective touch solution for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor with a footprint smaller than a standard 15" display. This cost and space-saving touchmonitor is "designed for touch"- the technology is built into the 1515L from the ground up and not added as an afterthought by altering the original monitor. It includes a stable base, with controls that are placed on the side rather than the front and are locked-out for public use. The 1515L can function as a desktop or wall-mounted unit. IntelliTouch surface acoustic wave pure-glass touchscreen technology provides superior image quality and can be activated with finger or glove.
  • Economical and reliable
  • Up to 1024 x 768 resolution at 75 Hz
  • Available with AccuTouch five-wire resistive technology
  • IntelliTouch surface wave technology for superior image quality
  • Sealed touchscreen
  • Dual serial USB interface
  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Internal power supply
