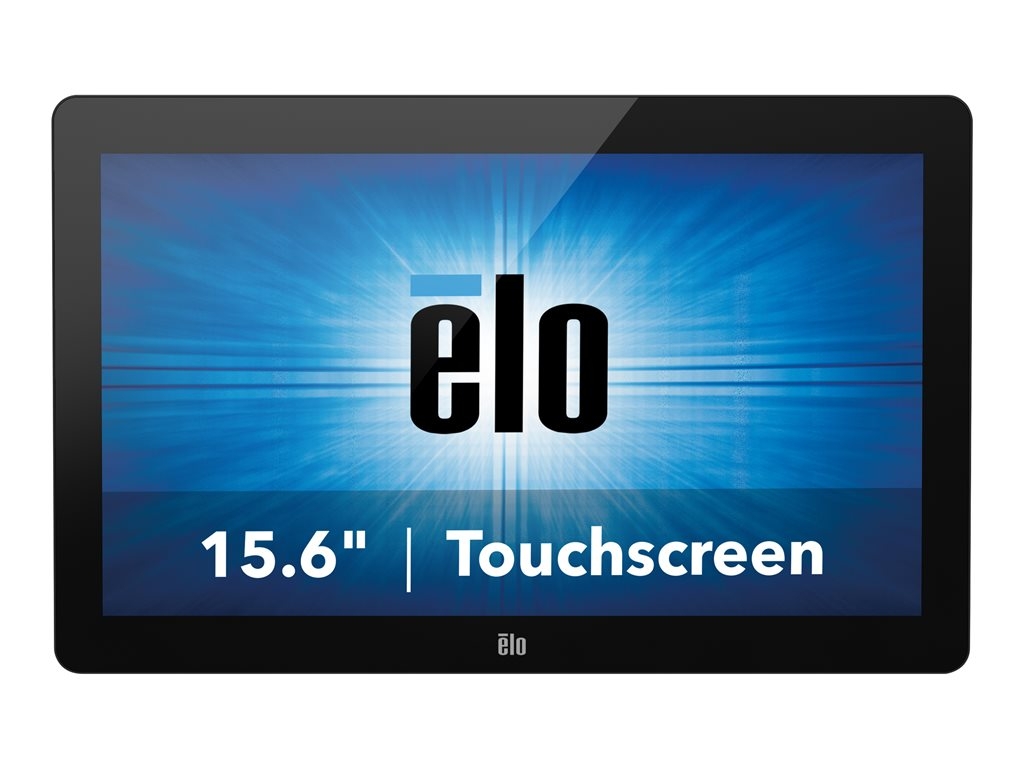

Elo 1502L - M-Series - LED monitor - 15.6"

SKU E318746

Product Description:	Elo 1502L - M-Series - LED monitor - 15.6"
Device Type:	LED-backlit LCD monitor - 15.6" - touchscreen
Energy Class:	Class A
Energy Consumption per Year:	18 kWh
Power Consumption (On mode):	12 W
Features:	Touch-screen
Aspect Ratio:	16:9

In Stock(141)

Specifications
Description
Accessories

General
Display Type:	LED-backlit LCD monitor / TFT active matrix
Energy Class:	Class A
Energy Consumption per Year:	18 kWh
Diagonal Size:	15.6"
Aspect Ratio:	16:9
Native Resolution:	HD 720p 1366 x 768 at 60 Hz
Brightness:	220 cd/m²
Brightness w/touchscreen:	187 cd/m²
Contrast Ratio:	600:1
Colour Support:	262,000 colours
Response Time:	10 ms
Vertical Refresh Rate:	60 Hz
Horizontal Refresh Rate:	31.5 - 60 kHz
Horizontal Viewing Angle:	90
Vertical Viewing Angle:	65
Screen Coating:	Anti-glare
Backlight Technology:	LED backlight
Controls & Adjustments:	Mute, volume, brightness, contrast, H/V position, sharpness, colour temperature, phase, clock, aspect control
OSD Languages:	Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese
Features:	Zero-Bezel Design, Projected Capacitive Touch (P-CAP) technology, IntelliTouch Pro
Colour:	Black
Dimensions (WxDxH):	38.7 cm x 3.29 cm x 24.44 cm - without stand
Weight:	3 kg

Audio
Type:	Speakers - stereo
Output Power / Channel:	2 Watt

Input
Type:	Touch-screen - touchscreen
Movement Detection Technology:	Projected capacitive

Connectivity
Interfaces:	Mini-VGA ¦ HDMI ¦ USB

Mechanical
VESA Mounting Interface:	75 x 75 mm

Miscellaneous
Features:	Security lock slot (cable lock sold separately)
Cables Included:	1 x HDMI cable ¦ 1 x mini-VGA-VGA cable ¦ 1 x USB cable ¦ 1 x audio cable
MTBF:	50,000 hours
Compliant Standards:	UL, VCCI, cUL, IC, FCC

Power
Input Voltage:	AC 100/240 V (50/60 Hz)
Power Consumption (On mode):	12 W
Power Consumption (Typical):	10.2 Watt
Power Consumption Stand by:	0.5 Watt
Power Consumption Sleep:	0.3 Watt
Power Consumption (Off Mode):	0.3 Watt

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

Environmental Parameters
Min Operating Temperature:	0 °C
Max Operating Temperature:	40 °C
Humidity Range Operating:	20 - 80% (non-condensing)

vis mere

The Elo M-Series 1502L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness at the point of sale. The sleek wide aspect ratio touchscreen features Full HD edge-to-edge glass with display area real estate to showcase engaging, memorable and rewarding content. An HD display model is available for transactional and other applications not requiring 1920 x 1080 resolution. For environments where space is scarce, the 1502L is an ideal POS terminal screen or stylish interactive information display. Built to withstand the rigors of continuous public use, the 1502L is well suited for high use retail venues. The sleek, thin look pairs well with any modern store environment.
The multiple mount and stand options ensure installation flexibility and accommodate desktop use as well as wall- and pole-mount with standard VESA mount patterns.

Sleek and modern widescreen design with "built for touch" reliability
Energy savings using LED technology
10 touch projected capacitive (PCAP) touchscreen
Full HD Edge-to-edge glass display with anti-glare for retail interiors
Installation flexibility with mounting in portrait, landscape and table-top orientation, adjustable height stand

The technical details come from 3rd party. edgemo is not responsible for any errors.
