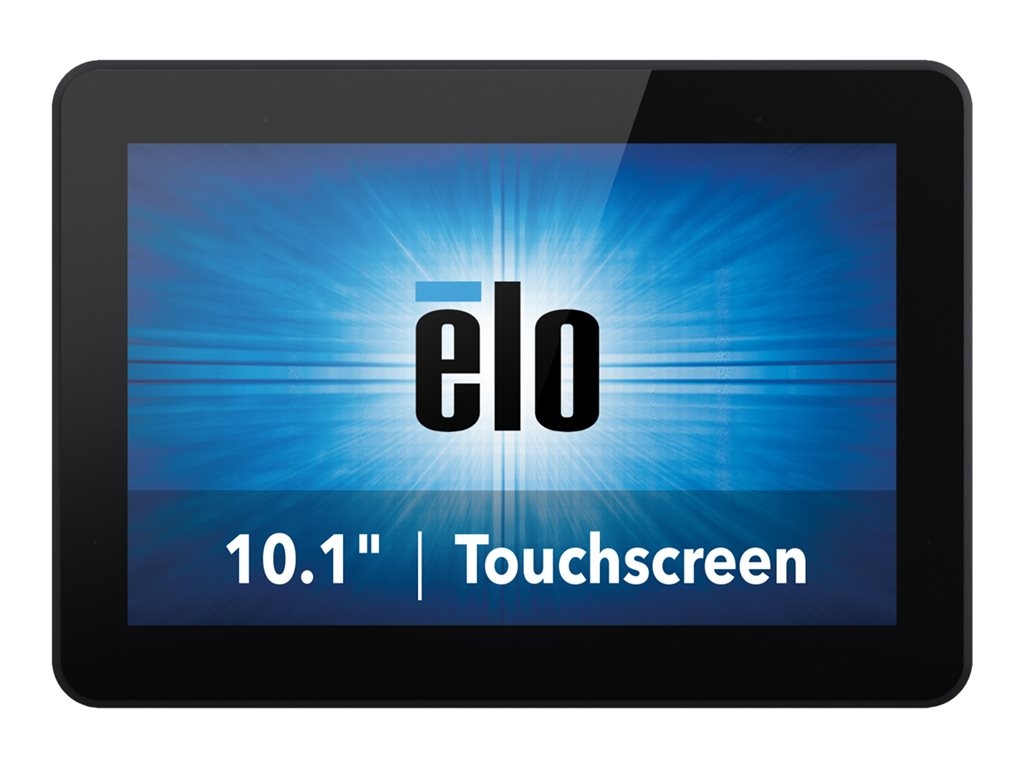

Printers & POSElo 1093L - 90-Series - LED monitor - 10.1"
SKU E321195
| Product Description: | Elo 1093L - 90-Series - LED monitor - 10.1" |
| Device Type: | LED-backlit LCD monitor - 10.1" - touchscreen |
| Energy Class: | Class A |
| Energy Consumption per Year: | 10 kWh |
| Power Consumption (On mode): | 7 W |
| Features: | Touch-screen |
| Aspect Ratio: | 16:10 |
- Specifications
- Description
| General | |
| Display Type: | LED-backlit LCD monitor / TFT active matrix |
| Energy Class: | Class A |
| Energy Consumption per Year: | 10 kWh |
| Diagonal Size: | 10.1" |
| Aspect Ratio: | 16:10 |
| Native Resolution: | 1280 x 800 at 60 Hz |
| Brightness: | 350 cd/m² |
| Brightness w/touchscreen: | 315 cd/m² |
| Contrast Ratio: | 800:1 |
| Colour Support: | 262,000 colours |
| Response Time: | 25 ms (tr - tf) |
| Vertical Refresh Rate: | 50 - 75 Hz |
| Horizontal Refresh Rate: | 30 - 60 kHz |
| Horizontal Viewing Angle: | +85 / -85 |
| Vertical Viewing Angle: | +85 / -85 |
| Backlight Technology: | LED backlight |
| OSD Languages: | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features: | Remote OSD, Zero-Bezel Design, Projected Capacitive Touch (P-CAP) technology |
| Colour: | Black |
| Dimensions (WxDxH): | 25.58 cm x 3.69 cm x 17.85 cm |
| Weight: | 1.2 kg |
| Input | |
| Type: | Touch-screen - touchscreen |
| Movement Detection Technology: | Projected capacitive |
| Connectivity | |
| Interfaces: | USB (Type B) ¦ VGA ¦ DisplayPort ¦ Management (RJ-45) ¦ HDMI |
| Mechanical | |
| VESA Mounting Interface: | 75 x 75 mm |
| Miscellaneous | |
| Cables Included: | 1 x VGA cable ¦ 1 x USB cable ¦ 1 x HDMI cable |
| Mounting Kit: | Included |
| MTBF: | 50,000 hours |
| Compliant Standards: | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IMERC |
| Localisation: | Worldwide |
| Power | |
| Power Consumption (On mode): | 7 W |
| Power Consumption (Typical): | 6.1 Watt |
| Power Consumption Sleep: | 0.7 Watt |
| Power Consumption (Off Mode): | 0.5 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
- 10 touch projected capacitive (PCAP) with Thru-glass capabilities
- PCAP 2GS (two glass solution) offers pristine optical clarity and touch durability
- Touchscreen sealed against dirt, dust and liquids
- Easy to integrate with mounting holes on all 4 sides and rear 75mm VESA mount
- Display Port and VGA video interfaces
The technical details come from 3rd party. edgemo is not responsible for any errors.
