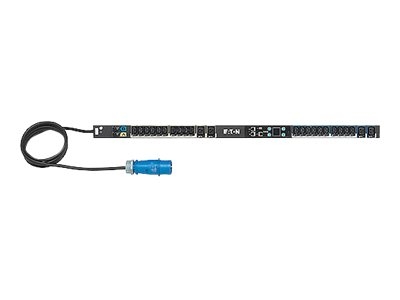

Eaton ePDU Metered - power distribution unit

SKU EMIB06
Product Description:Eaton ePDU Metered - power distribution unit
Device Type:Power distribution unit - rack-mountable
Rack Size:0U
Input Voltage:AC 100-240 V
Input Connectors:1 x power IEC 60309
Output connectors:12 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19
Networking:Ethernet
08-04-2024
  • Specifications
  • Description
General
Device Type:Power distribution unit - rack-mountable
Height (Rack Units):0U
Power Device
Input Voltage:AC 100-240 V
Input Connectors:1 x power IEC 60309
Power Output Connectors Details:12 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19
Max Electric Current:32 A
Networking
Remote Management Interface:Ethernet
Expansion / Connectivity
Interfaces:1 x management (Ethernet)
Miscellaneous
Features:Temperature sensor, rugged, low-profile, LED display, current meter
vis mere
New ePDU G3 Metered Input models feature best in class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
  • Easy-read digital ammeter can automatically scroll through up to 8 circuits and can be seen through cabinet doors
  • Up to 3 types of socket available in one ePDU
  • High quality sockets ensure maximum reliability
  • Isolation mounting expands cabinet grounding options
  • Installation flexibility - have confidence that the strip can be adapted to suit any on-site rack configuration
  • Tough yet attractive aluminum body with polycarbonate end caps for the ultimate in style and strength
